ToolTuff Direct 1-3/8 in. x 6-Spline 4 Series PTO Driveline
$129.99
ToolTuff Direct 1-3/8 in. x 6-Spline 4 Series PTO Driveline
Online Only
ToolTuff Direct 1-3/8 in. x 6-Spline 4 Series PTO Driveline
Item # 1930013
$129.99
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Online Only
ToolTuff Direct 1-3/8 in. x 6-Spline 4 Series PTO Driveline
Item # 1930013
$129.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 11/8/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The ToolTuff Direct 4 Series PTO Driveline are designed to connect your tractor to your implement. The durable steel construction prevents damage to the driveline from everyday use and the environment for long-lasting functionality. The tri-lobe design of the drive shaft improves the power transfer to offer additional efficiency during operation.
- PTO shaft assembly provides reliable operation
- Series 4 PTO drive shaft for easy compatibility
- Retracted overall length is 37 in. with a safe extended overall length of 50 in.
- Can be cut to length for better fit between tractor and implement
- Tractor yoke has a 1-3/8 x 6 spline quick disconnect coupler
- Implement yoke is 1-3/8 round with a through-hole for a shear bolt
- Tri-lobe for optimum power transfer through the driveline
- Rated for 35 HP at 540 RPM or 54 HP at 1000 RPM
- Guarding over the drive shafts and joints meet or exceed safety standards
- Cross and bearing kits are replaceable (sold separately)
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 43 in. |
| Product Weight | 25 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 27-015 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: will this item replace a driveline that attaches to a slip clutch?
a month ago1 Answer
- A: Hi Michaelarch! No, this cannot directly attach to a slip clutch because its implement end is built with a 1-3/8 in. round shaft and a shear-bolt hole instead of a spline connectiona month agoHelpful?
Q: how short can this be made?
5 months ago1 Answer
- A: Hi ron1227! This product can usually be cut down by 4 to 6 inches, but the exact amount you can cut depends on your specific equipment.5 months agoHelpful?
Q: Will this fit on New Holland Workmaster 60 HP
7 months ago1 Answer
- A: Hi Neighbor! The 10-quart Advance Pet Products Stainless Steel Feeding Bowl measures approximately 4.8 inches in height and 14.5 inches in diameter. This durable, dishwasher-safe bowl is designed for large breed dogs and is suitable for both food and water.7 months agoHelpful?
Q: Shipping charges
a year ago1 Answer
- A: Hi Roy E! To get the most accurate information on shipping charges for this product, simply add the product to your cart and select the fulfillment method. This will show you pricing and availability.a year agoHelpful?
Q: Do you have this item number 1930013 with a 1-3/8 x 6 spline quick disconnect coupler on both ends?
a year ago1 Answer
- A: Hi Neighbor- Please work with your local TSC store, they maybe able to Special Order the part needed.a year agoHelpful?
Q: Shipping information to the store
a year ago1 Answer
- A: Hi Neighbor- This item ships to store for free with a shipping time of 9-14 business days to arrivea year agoHelpful?
Q: what is series 4?
a year ago1 Answer
- A: Hi Neighbor! Series 4 indicates the physical dimensions and capabilities of the shaft, including the diameter of the U-joint and the number of splines on the yoke.a year agoHelpful?
Q: What is the shear pin bolt diameter and length required?
a year ago1 Answer
- A: Hello Pete, Please contact the manufacturer with your inquiry at customerservice@tooltuffdirect.com or by calling (720) 437-7640.a year agoHelpful?
Q: Will this work on a 4 ft king kutter?
2 years ago1 Answer
- A: Hi Mark, this item is rated for 35 HP at 540 RPM or 54 HP at 1000 RPM. For more specifications, please contact the vendor directly.2 years agoHelpful?
Q: what size shear bolt does this use?
2 years ago1 Answer
- A: We use a grade 2 shear bolt which is rated for 13 hp but the customer can use a grade 5 shear bolt which is rated for roughly 21 hp.2 years agoHelpful?
1 - 10 of 15 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: will this item replace a driveline that attaches to a slip clutch?
a month ago1 Answer
- A: Hi Michaelarch! No, this cannot directly attach to a slip clutch because its implement end is built with a 1-3/8 in. round shaft and a shear-bolt hole instead of a spline connectiona month agoHelpful?
Q: how short can this be made?
5 months ago1 Answer
- A: Hi ron1227! This product can usually be cut down by 4 to 6 inches, but the exact amount you can cut depends on your specific equipment.5 months agoHelpful?
Q: Will this fit on New Holland Workmaster 60 HP
7 months ago1 Answer
- A: Hi Neighbor! The 10-quart Advance Pet Products Stainless Steel Feeding Bowl measures approximately 4.8 inches in height and 14.5 inches in diameter. This durable, dishwasher-safe bowl is designed for large breed dogs and is suitable for both food and water.7 months agoHelpful?
Q: Shipping charges
a year ago1 Answer
- A: Hi Roy E! To get the most accurate information on shipping charges for this product, simply add the product to your cart and select the fulfillment method. This will show you pricing and availability.a year agoHelpful?
Q: Do you have this item number 1930013 with a 1-3/8 x 6 spline quick disconnect coupler on both ends?
a year ago1 Answer
- A: Hi Neighbor- Please work with your local TSC store, they maybe able to Special Order the part needed.a year agoHelpful?
Q: Shipping information to the store
a year ago1 Answer
- A: Hi Neighbor- This item ships to store for free with a shipping time of 9-14 business days to arrivea year agoHelpful?
Q: what is series 4?
a year ago1 Answer
- A: Hi Neighbor! Series 4 indicates the physical dimensions and capabilities of the shaft, including the diameter of the U-joint and the number of splines on the yoke.a year agoHelpful?
Q: What is the shear pin bolt diameter and length required?
a year ago1 Answer
- A: Hello Pete, Please contact the manufacturer with your inquiry at customerservice@tooltuffdirect.com or by calling (720) 437-7640.a year agoHelpful?
Q: Will this work on a 4 ft king kutter?
2 years ago1 Answer
- A: Hi Mark, this item is rated for 35 HP at 540 RPM or 54 HP at 1000 RPM. For more specifications, please contact the vendor directly.2 years agoHelpful?
Q: what size shear bolt does this use?
2 years ago1 Answer
- A: We use a grade 2 shear bolt which is rated for 13 hp but the customer can use a grade 5 shear bolt which is rated for roughly 21 hp.2 years agoHelpful?
1 - 10 of 15 Questions
Similar Items
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
Reviews
1 to 4 of 62 Reviews .
1 – 4 of 62 Reviews
Most Recent
Ashland NH
Review 1
3 out of 5 stars.

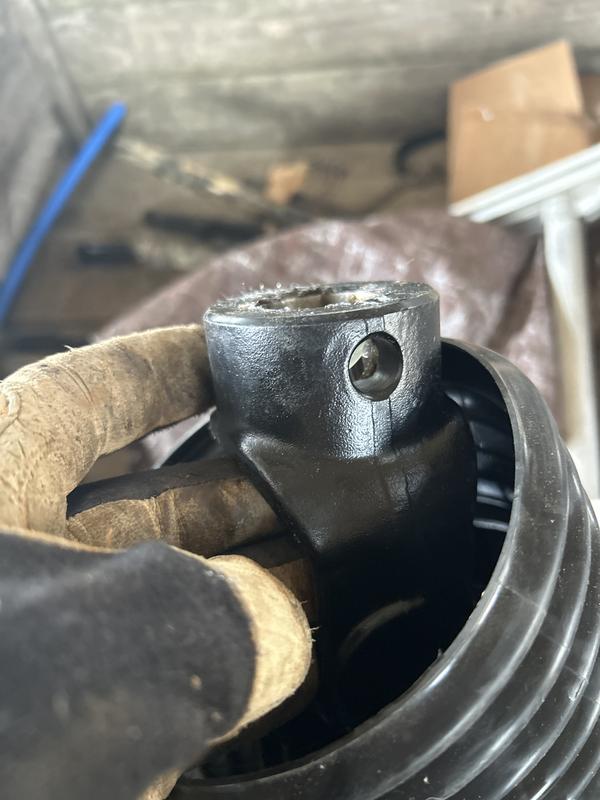

No shear bolt.
13 days ago
I needed a drive shaft with a shear bolt to use with my chipper. This didn’t have a shear bolt. The description, research I did, and even AI said this was the right unit. The quality is great though.
SweepstakesYes
Review 1
5 out of 5 stars.
Driveshaft
17 days ago
It’s a driveshaft.
Ulster county NY
Review 1
5 out of 5 stars.
Fits My 5\-Foot Brush Cutter Perfectly
20 days ago
Overall, this was a good choice\. The rear driveshaft and the yoke on my original brush cutter were damaged, and replacing those parts would have cost almost as much as buying this complete assembly\.
I decided to buy the whole assembly and use only the rear half with my brush cutter, keeping the original front half\. They fit together perfectly\. It also works well in actual use and runs smoothly without any issues so far\.
Overall, I’m satisfied with this purchase\.
SweepstakesYes
Yes, I recommend this product.
Texas
Review 1
3 out of 5 stars.
ToolTuff Direct 1-3/8 in. x 6-Spline 4 series
a month ago
Shaft did fit my tractors PTO. The only thing I had a problem with was the shaft was not long enough for my post hole auger. I had to incorporate the old shaft with the new shaft to make it long enough to work.
