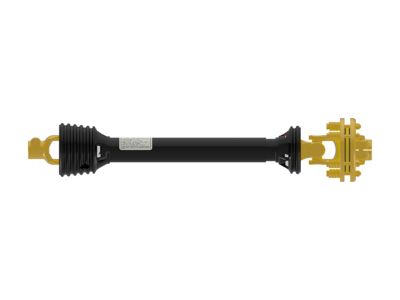

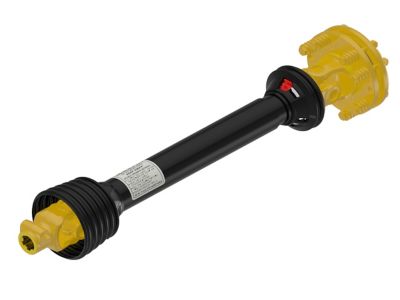

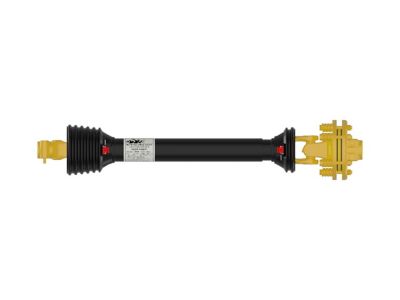

The Weasler 36 in. BYPY 4 Series Metric Driveline with Friction Clutch Yoke provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
- BYPY 4 Series driveline a top choice in the agriculture and lawn and turf industries

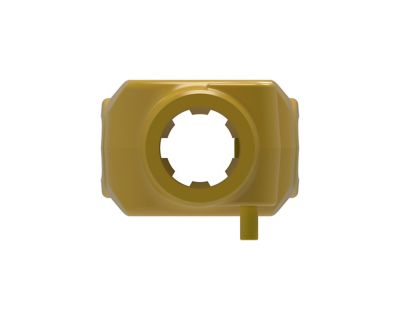

- Features a 1-3/8 in., 6 spline quick disconnect tractor connection and an 800 lb. friction clutch yoke with a 1-3/8 in., 6 spline clamp implement connection
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Compressed closed length is 25.98 in. while the extended length is 38.86 in. and the extended overall length is 48.81 in.
- Operates at 56 HP/42 kilowatts at 1000RPM or 36 HP/27 kilowatts at 540RPM for efficiency
- Outside diameter of the drive shaft is 7.1 in. with a weight of 35.92 lb.
- Hollow Tri-Lobe shaft to accommodate your equipment
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 36 in. |
| Product Weight | 35.92 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14106436 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: I am replacing a 36 in on my Bush Hog 3008, Pulled by Kubota L5030D will this work?
a year ago1 Answer
- A: Hi Neighbor! Brand Compatibility Universala year agoHelpful?
Q: How much do I tighten the spring-loaded bolts on the slip clutch to make sure it is the correct pressure? I loosened them to make sure the clutch was functioning properly but now I need to know how tight to make it so that its not too tight or too loose.
4 years ago1 Answer
- A: Per the manufacture: You need to turn it down to 31 mm spring height4 years agoHelpful?
Q: How much is the horse power rating reduced as the length of the shaft is reduced ? The torque capacity would be reduced if the shaft is cut. Fitting this to my ford 600 harvester would leave the shaft lap at about 6 inches. Do you have a minimum shaft lap
4 years ago1 Answer
- A: The HP is 36, max operations is 39mm.4 years agoHelpful?
Q: Does this work on rototillers ?
4 years ago1 Answer
- A: This drive shaft can be used on tillers. In the replacement drivelines section in the front of our book this is shown in the rotary cutter/tiller section, see the last page of the replacement drivelines attachment. This drive shaft is rated for a machine that would only need 36 Hp at 540 rpms to run, tiller’s power not tractor.4 years agoHelpful?
Q: Is this PTO shaft the same or replacement for countyline rotary tiller pto shaft part number 4-30QDTL
5 years ago1 Answer
- A: We would need a little more info, we are not able to cross reference5 years agoHelpful?
Q: I need a replacement pto shart for a 6ft countyline tiller. Is this it?
6 years ago1 Answer
- A: We would need a little more info, we are not able to cross reference6 years agoHelpful?
Q: Does this 36" shaft extend at all or is it a fixed 36"?
7 years ago1 Answer
- A: Yes it extends out to 49”7 years agoHelpful?
Q: How long is the tube part? I need to shorten it to fit my yanmar tiller.
7 years ago1 Answer
- A: The outer tube is 22.64" and the inner tube is 20.67".7 years agoHelpful?
Q: What horsepower is this shaft rated up to?
8 years ago1 Answer
- A: This is rated for up to 36 HP.8 years agoHelpful?
Q: I have a Bushhog model 160 14' mower. This mower has three blades and the splines on the slip-clutch are wore out and I am wondering if this will replace my old one?
9 years ago1 Answer
- A: If your drive shaft is a 4 series Bondioli & Pavesi drive line it will work.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: I am replacing a 36 in on my Bush Hog 3008, Pulled by Kubota L5030D will this work?
a year ago1 Answer
- A: Hi Neighbor! Brand Compatibility Universala year agoHelpful?
Q: How much do I tighten the spring-loaded bolts on the slip clutch to make sure it is the correct pressure? I loosened them to make sure the clutch was functioning properly but now I need to know how tight to make it so that its not too tight or too loose.
4 years ago1 Answer
- A: Per the manufacture: You need to turn it down to 31 mm spring height4 years agoHelpful?
Q: How much is the horse power rating reduced as the length of the shaft is reduced ? The torque capacity would be reduced if the shaft is cut. Fitting this to my ford 600 harvester would leave the shaft lap at about 6 inches. Do you have a minimum shaft lap
4 years ago1 Answer
- A: The HP is 36, max operations is 39mm.4 years agoHelpful?
Q: Does this work on rototillers ?
4 years ago1 Answer
- A: This drive shaft can be used on tillers. In the replacement drivelines section in the front of our book this is shown in the rotary cutter/tiller section, see the last page of the replacement drivelines attachment. This drive shaft is rated for a machine that would only need 36 Hp at 540 rpms to run, tiller’s power not tractor.4 years agoHelpful?
Q: Is this PTO shaft the same or replacement for countyline rotary tiller pto shaft part number 4-30QDTL
5 years ago1 Answer
- A: We would need a little more info, we are not able to cross reference5 years agoHelpful?
Q: I need a replacement pto shart for a 6ft countyline tiller. Is this it?
6 years ago1 Answer
- A: We would need a little more info, we are not able to cross reference6 years agoHelpful?
Q: Does this 36" shaft extend at all or is it a fixed 36"?
7 years ago1 Answer
- A: Yes it extends out to 49”7 years agoHelpful?
Q: How long is the tube part? I need to shorten it to fit my yanmar tiller.
7 years ago1 Answer
- A: The outer tube is 22.64" and the inner tube is 20.67".7 years agoHelpful?
Q: What horsepower is this shaft rated up to?
8 years ago1 Answer
- A: This is rated for up to 36 HP.8 years agoHelpful?
Q: I have a Bushhog model 160 14' mower. This mower has three blades and the splines on the slip-clutch are wore out and I am wondering if this will replace my old one?
9 years ago1 Answer
- A: If your drive shaft is a 4 series Bondioli & Pavesi drive line it will work.9 years agoHelpful?
