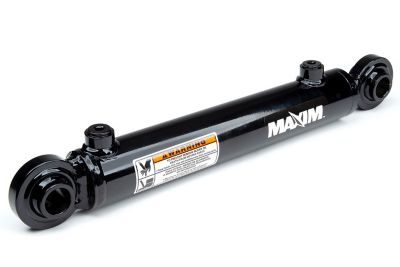

Maxim 3 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder, 1.5 in. Rod Diameter
Online Only
Maxim 3 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder, 1.5 in. Rod Diameter
Item # 1307822
$259.99
or
or
Neighbor’s Club Members earn points with purchases.
Online Only
Maxim 3 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder, 1.5 in. Rod Diameter
Item # 1307822
$259.99
or
or
$44/mo.† suggested payments with 6 Months Financing or earn $12 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 3 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.
- Intended use of swivel ball hydraulic cylinder: double-acting applications
- Piston: ductile iron
- Piston lock nut: nylock nut
- Gland: ductile iron with rod wear band
- Tube: steel tube honed or skived for extended seal life
- Tube seal: O-ring and backup
- Rod: ground and polished hard chrome-plated rod
- Rod seal: U-cup
- Wiper: polyurethane
- End mounts: spherical
- All seals are manufactured to US specifications
- Ports: O-ring boss
- Max PSI: 3,000
- Column load: 21,200 lb.
- Hydraulic cylinder measures 16.25 in. retracted and 24.25 in. extended
- Pin diameter of 1 in. and rod diameter of 1.5 in.
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 36 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 22 lb. |
| Product Width | 0 N/A |
| Retracted Length | 16.25 in. |
| Rod Diameter | 3-1/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 400527 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Where do you get seal kit for these when reseal is needed?
2 years ago1 Answer
- A: Hi, Maxim is a registered trademark of Bailey International, LLC. **Bailey International/MAXIM** https://www.baileyhydraulics.com/contact-us/ or call 1-800-800-18102 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Where do you get seal kit for these when reseal is needed?
2 years ago1 Answer
- A: Hi, Maxim is a registered trademark of Bailey International, LLC. **Bailey International/MAXIM** https://www.baileyhydraulics.com/contact-us/ or call 1-800-800-18102 years agoHelpful?
Similar Items
Items You May Like
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Reviews
- purchase
- installation
- price
- product features
- quality
1 to 4 of 4 Reviews .
1 – 4 of 4 Reviews
Most Recent
space coast fl
Review 1
4 out of 5 stars.
i mis understood the specs, or they were incomplet
7 months ago
arrived when expected, ill return it because the swivel is too wide for my forklift. specs showed 1 inch however the actual is 1.75 inch
Yes, I recommend this product.
Good
Review 1
5 out of 5 stars.
100% what I needed.
2 years ago
Ordering online was very easy. Shipping was fast. Definitely will order again
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
Heavy Metal Fabrication
Florida
Review 1
5 out of 5 stars.
Great cylinders
3 years ago
We buy probably 20 or more of these hydraulic cylinder’s a yr. Very good quality and priced right👍🏻
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
Gary
Cleveland, ohio
Review 1
3 out of 5 stars.
Welded cylinder
4 years ago
I have 3 of these cylinders, everyone has leaked after 25 or 30 hours. I have installed new seals in all of them, no problems since resealed.
No, I do not recommend this product.
Originally posted on baileyhydraulics.com
