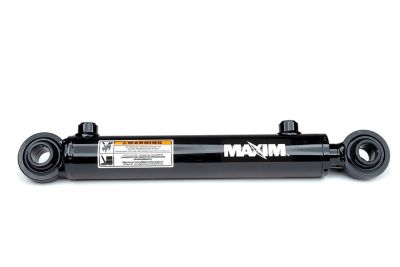

Maxim 3 in. Bore x 24 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Online Only
Item # 1307826
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1307826
This item is available online only
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.
The Maxim 3 in. Bore x 24 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder features swivel ball mounts, which make it great for use on compact equipment. The swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. A truly versatile design, this hydraulic cylinder is intended for double-acting applications, and it performs in those applications masterfully.Note: This product may require up to 2 additional days for order processing prior to shipping
- Intended use of swivel ball hydraulic cylinder: double-acting applications
- Piston: ductile iron
- Piston lock nut: nylock nut
- Gland: ductile iron with rod wear band
- Steel tube is honed or skived for extended seal life
- Tube seal: O-ring and backup
- Ground and polished hard chrome-plated rod for durability
- Rod seal: U-cup
- Wiper: polyurethane

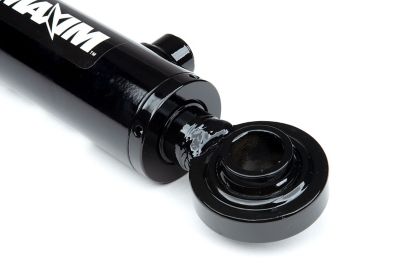

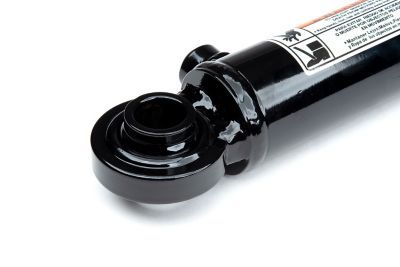

- End mounts: spherical
- All seals are manufactured to US specifications
- Ports: O-ring boss
- Paint: black
- 3 in. bore hydraulic cylinder with 24 in. strokes
- Measures 32.25 in. retracted and 56.25 in. extended
- Column load: 21,200 lb.
- Pin diameter of 1 in. and rod diameter of 1. 5 in.
- 1 year warranty
- Maximum PSI: 3,000 PSI
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Maxim |
| Compatibility | Welded Hydraulic Cylinder |
| Extended Length | 56.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Not designed for a specific cylinder to replace |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 41 lb. |
| Product Length | 24 in. |
| Product Weight | 41 lb. |
| Product Width | 3.5 in. |
| Retracted Length | 32.35 in. |
| Rod Diameter | 3-1/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 24 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 400531 |
Q: The specs are different than the description so what are you actually selling
5 years ago- A: The listed description is for the Maxim Hydrlc Cylder 3 in. Bore x 24 in. Strke, 400531.5 years agoHelpful?
Q&As
Q: The specs are different than the description so what are you actually selling
5 years ago- A: The listed description is for the Maxim Hydrlc Cylder 3 in. Bore x 24 in. Strke, 400531.5 years agoHelpful?
