Grizzly G0808-20-3/4 in. Gearhead Drill Press With, G0808

4.73 Reviews

Item # 2294026

Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
$7,025.00
See Price at Checkout

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Grizzly G0808-20-3/4 in. Gearhead Drill Press With, G0808

4.73 Reviews

Item # 2294026

Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
Image showing  G0808-20-3/4 in. Gearhead Drill Press With, G0808
$7025.00
See Price at Checkout

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

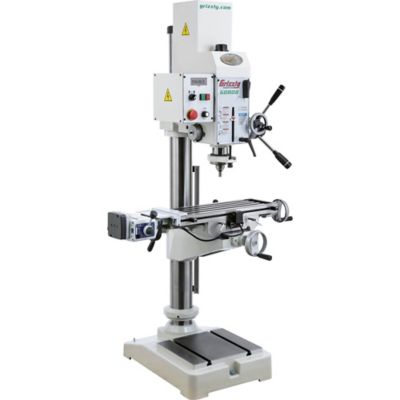

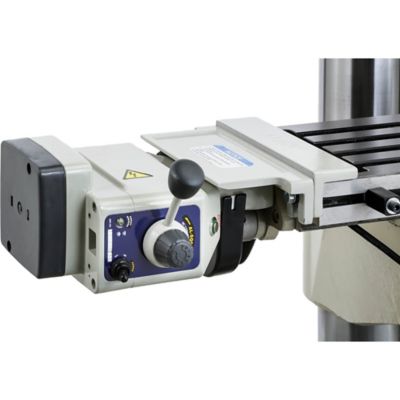

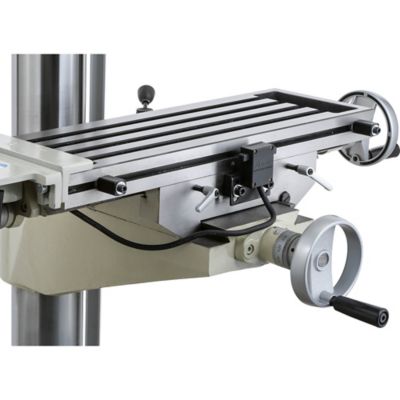

The G0808 20-3/4" Gearhead Drill Press with Cross-Slide Table delivers with many unique features. The vertical power feed is a huge time saver for those projects requiring the table to move up and down the column repetitively or a large distance each time. The variable-speed spindle control combined with a large digital readout allows for optimum control of drilling results. Thanks to the variable frequency drive (VFD), the G0808 has a high-low speed range for 3-phase speed control with single-phase power. The VFD saves you money by increasing the efficiency of the motor and decreasing electricity use. It reduces wear and tear on the motor which extends the life of the drill press. The X- and Y-axis table has a longitudinal powerfeed for milling as well as faster drilling setup convenience.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Main motor: 1-1/2 HP, 220V, 3-phase (with inverter for single-phase power), 5.5A
  • Required power source: 220V, single-phase, min. 15A circuit
  • Swing: 20-3/4"
  • Spindle taper: R-8
  • Spindle speed: variable, 0 —2500 RPM
  • Drilling capacity: 1-9/16" mild steel
  • Head tilt: 30° left, 90° right
  • Max. distance from spindle to column: 10-7/16"
  • Max. distance from spindle to table: 17-1/2"

Similar Items

  1. Top Rated

Items You May Like

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated
  5. Top Rated

Customers Also Bought

  1. Top Rated
  2. Top Rated

Reviews

Rating Snapshot

Select a row below to filter reviews.
2 reviews with 5 stars.
1 review with 4 stars.
0 reviews with 3 stars.
0 reviews with 2 stars.
0 reviews with 1 star.

Overall Rating

4.7

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification
    • customer service
    • parts
    • returns
    • setup
    1 to 2 of 3 Reviews
    1 – 2 of 3 Reviews
    Review 1

    Excellent Drill Press, and used for Annular Cutters, too.

    6 years ago
    Read the nice comment on the T26685 Moly-D Multi-Function Machine Oil - ISO 32, 1 Gallon (used for the Drill Press referenced).

    Originally posted on grizzly.com

    Review 1

    Good but motorized table height stopped working

    8 years ago
    The G0808 is a good drill press, however the motor (or gearing) to the table height adjustment stopped working within a few weeks of arrival. Customer Service has been helpful and is willing to take back/replace parts. However we are in production and have not had the time to disassemble the whole assembly to determine exactly what part is broken or to return things. Hence the rating for now, which would otherwise have been higher

    Originally posted on grizzly.com
