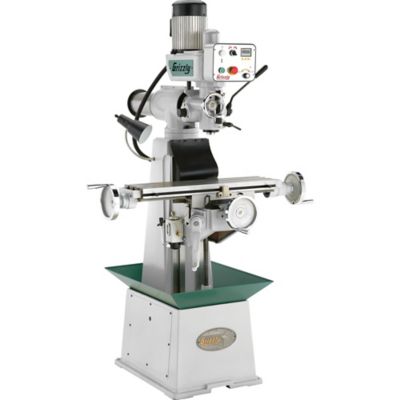

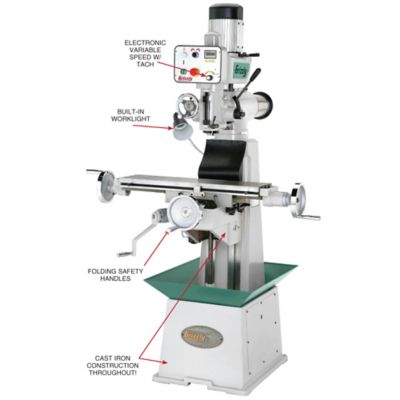

The G0695 8 in. x 30 in. 1-1/2 HP Variable-Speed Knee Mill with Ram Head runs on single-phase power using an inverter.The state-of-the-art frequency drive inverts and modulates the power to give you smooth speed changes with robust torque.Now you can have speeds from 200 to 2250 RPM with just the turn of a dial.The head slides in and out, swivels, and tilts 45° left-to-right, enabling extremely versatile operations.Features hardened and precision-ground leadscrews, dovetail ways, turret-style column, and fine downfeed on quill.Like all Grizzly mills, the G0695 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)SPECIFICATIONS:Motor: 1-1/2 HP, 220V, 3-phase, 4.8APower source: 220V, single-phaseSpindle taper: R-8Spindle travel: 3-1/2 in. Spindle speed: Variable, 220-2250 RPMMax distance spindle-to-table: 20 in. T-Slots: 3@ 1/2 in. wide, 2-3/16 in. centersTable size: 8 in. x 30 in. Longitudinal table travel (X-axis): 18-1/2 in. Cross table travel (Y-axis): 7-1/2 in. Vertical table travel (Z-axis): 17-3/4 in. Head tilt 45° left/rightRam travel: 18 in. Drilling capacity: 3/4 in. mild steelOverall size: 42-3/4 in. W x 40-1/2 in. D x 79 in. HApproximate shipping weight: 1006 lbs.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
