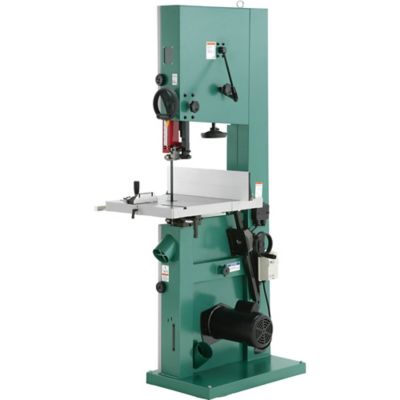

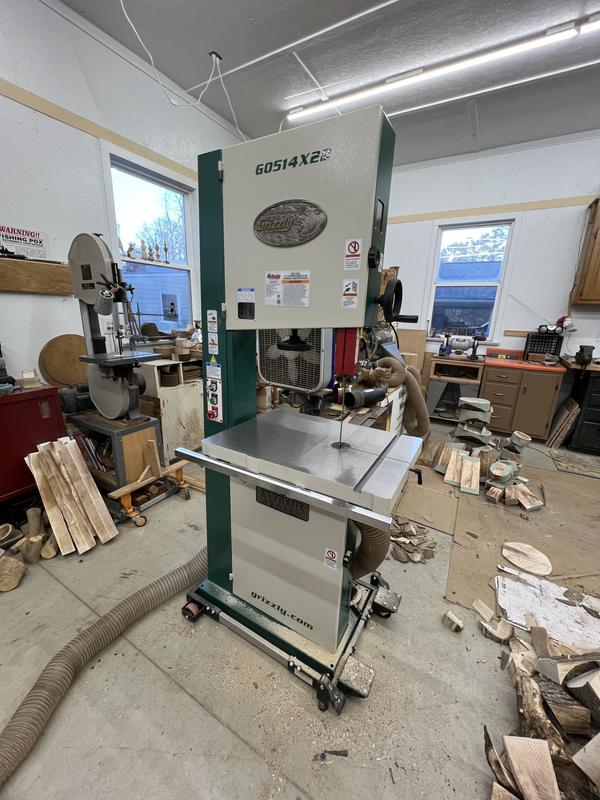

Grizzly G0514x2B-19 in. 3 HP Extreme-Series Bandsaw, G0514X2B
Item # 2293943

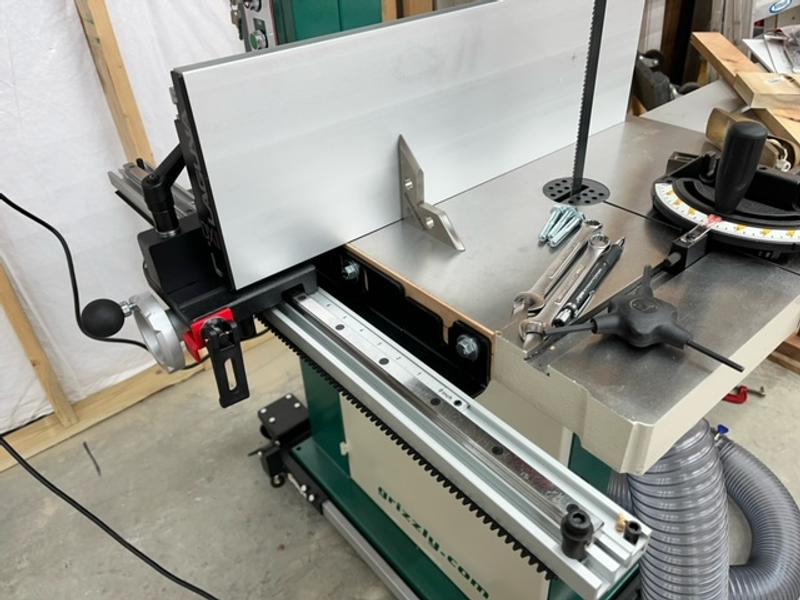

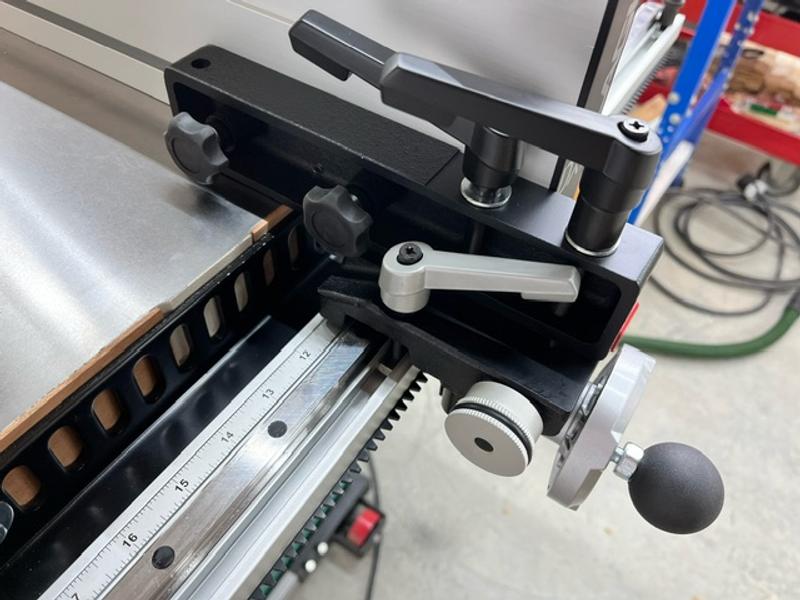

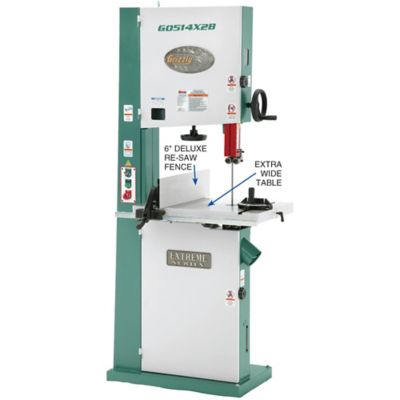

We took our rock-solid G0514X 19 in. Heavy-duty Extreme Series Bandsaw, added a few more features and came up with a new line of ultimate 19 in. Bandsaws. This saw features an lightning-fast electronic motor brake, a cast iron table trunnion, rack and pinion table tilt control with extra table support, and an innovative resaw fence. The electronic motor brake stops the blade in approximately 3 seconds-all with the simple push of a switch. Now that's fast and easy.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 3 HP, 220-Volt, single-phase, 12 Amp, TEFC, 60 Hz
- Table size: 26-3/4 in. x 19 in. x 1-1/2 in. thick
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 18-1/4 in.
- Maximum cutting height: 12 in.
- Blade size: 143 in. L
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 N/A |
| Blade Change Type | Keyless |
| Cord Length | 6 ft. |
| Cut Through | Wood |
| Dust Collection Method | 4 in. dust port |
| Features | Dust Collection |
| Horsepower | 3 HP |
| Housing Material | Steel |
| Maximum Blade Length | 143 in. |
| Maximum Blade Width | 1.25 in. |
| Maximum Cutting Width | 18.25 in. |
| Maximum Speed | 3500 FMP |
| Minimum Blade Length | 141.5 in. |
| Minimum Blade Width | 0.125 in. |
| Minimum Speed | 1700 FMP |
| Number of Speeds | 2 |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 76 in. |
| Product Length | 32 in. |
| Product Weight | 427 lb. |
| Product Width | 36 in. |
| Rectangle Length Capacity | 18.25 in. |
| Rectangle Width Capacity | 18.25 in. |
| Round Capacity | 18.25 in. |
| Table Height From Floor | 37.5 in. |
| Table Length | 26.75 in. |
| Table Tilt Range | 5 deg. left, 45 deg.right |
| Table Width | 19 in. |
| Variable Speed | Variable Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G0514X2B |
