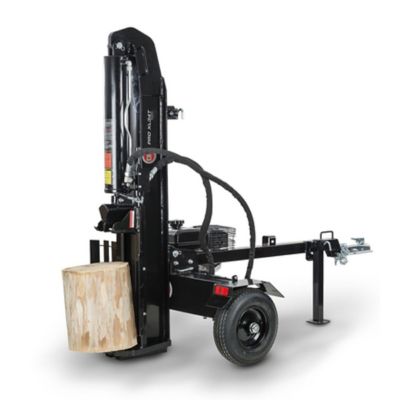

DR Power Equipment Pro XL 34 Ton Horizontal-Vertical Log Splitter, WH35034DMN
Item # 229678899
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 229678899
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

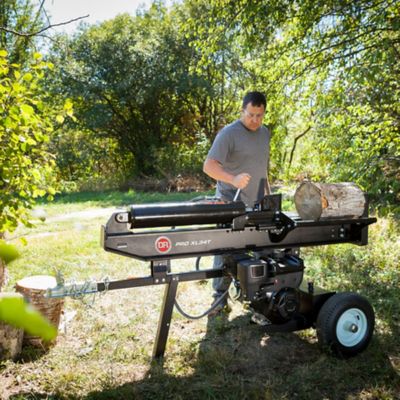

Our top of the line PRO XL34T Horizontal/Vertical splitter delivers 34 Tons of force for tackling the biggest logs. It is designed for easy transition between horizontal and vertical configurations. The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required! An easy-starting DR 9.2 HP engine powers the 2 stage pump (13.0 GPM), generating 3500psi of splitting force. Logs up to 30" in diameter and up to 24" long are no problem. And the PRO XL34T's 15-second cycle time makes it one of the fastest hydraulic splitters in its class.Engine Warranty: 2 years residential, 1 year commercial/ Machine Warranty: 2 years residential, 90 days commercial
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.
- Road-Towable A 2" ball hitch with safety chains comes standard, allowing you to tow the unit at speeds up to 45 mph on its big 16" tires. The jackstand folds up for transport, locking into place with a simple cotter pin.
- Easy Conversion Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Lets you split those really big rounds without lifting the log onto the beam.
- DR Engine Powerful, easy starting engines make our log splitters the natural choice for any task, and are designed for long life.
- Rugged Hydraulics Hydraulic pump generates 3500 psi in the cylinder (5" bore). Steel piston compression seals provide consistent power...year after year.
- Easy Towing A 2" ball hitch comes standard (with safety chains) allowing for road towing at speeds up to 45 mph. Jackstand folds up for transport.
- Cast Iron Beam Provides rock solid stability in either horizontal or vertical mode without any of the rocking you get with lightweight splitters.
| Brand | DR Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0- Not Measured |
| Cycle Time | 16 sec. |
| Engine Displacement | 0- Not Measured |
| Engine Type | 1-cylinder |
| Fuel Tank Capacity | 1.6 gal. |
| Horsepower | 9.2 HP |
| Hydraulic Capacity | 3,500 PSI |
| Log Splitter Features | Hydraulic |
| Log Splitter Maximum Log Length | 25 in |
| Log Splitting Force | 34 ton |
| Maximum Log Diameter | 30 in. |
| Maximum PSI | 3,500 PSI |
| Engine Brand | Briggs & Stratton |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 35.4 in. |
| Product Length | 83.6 in. |
| Product Weight | 549 lb. |
| Product Width | 40.6 in. |
| Recommended Oil Type | Not Applicable |
| Splitter Type | Gas |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 0- Not Measured |
| Towability | Yes |
| Warranty | Engine Warranty: 2 years residential, 1 year commercial/ Machine Warranty: 2 years residential, 90 days commercial |
| Manufacturer Part Number | WH35034DMN |
