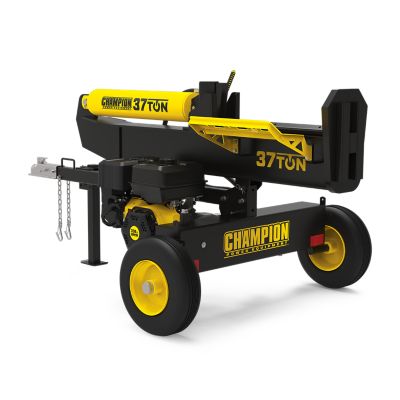

Champion Power Equipment 37-Ton Gas-Powered Horizontal/Vertical Full Beam Log Splitter with Auto Return
Champion Power Equipment 37-Ton Gas-Powered Horizontal/Vertical Full Beam Log Splitter with Auto Return
Item # 233836199
- Maximum Log Diameter:24 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:16 sec.
Neighbor’s Club Members earn points with purchases.
Item # 233836199
- Maximum Log Diameter:24 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:16 sec.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Free delivery offer on this product..
Neighbor’s Club Members earn points with purchases.
The Champion Power Equipment 201314 37-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. Depend on the reliable recoil start to start up the powerful Champion 338cc single-cylinder OHV engine, which features a cast-iron sleeve, a 1.45-gallon fuel tank, 1.2-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety. Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds. Thirty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 6-gallon oil capacity and operates at 17 gpm to power through tough logs. Champion's efficient design has a fast 16-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 220 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach. The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity. This log splitter will fit in most truck beds, plus it's easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications. Hassle free with included oil funnel and 10W-30 engine oil. (Note: unit comes assembled when purchased in-store; units ordered online come unassembled even if picked up in-store). This log splitter is EPA certified. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

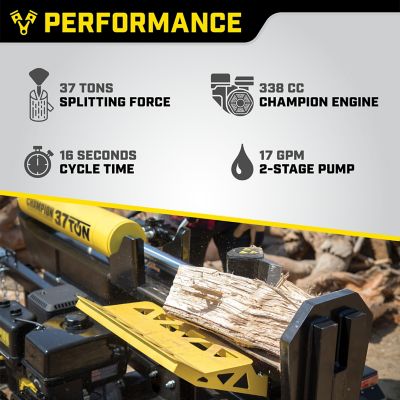

- 37 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine

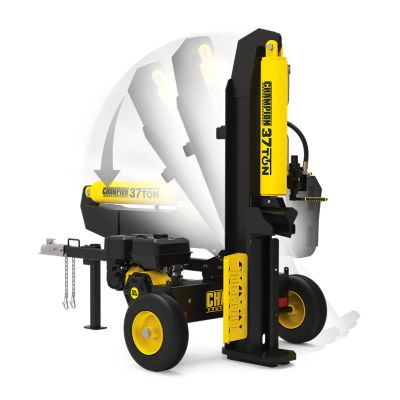

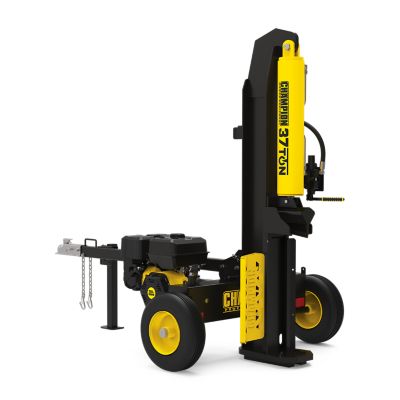

- Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
- 16 -second cycle time, expanded operator area and dependable auto-return valve capable of over 220 cycles per hour
- Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
- Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section. - EPA certified
| Brand | Champion Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 16 sec. |
| Engine Displacement | 338 cc |
| Engine Type | 1-cylinder |
| Fuel Tank Capacity | 1.45 gal. |
| Horsepower | 0 hp |
| Hydraulic Capacity | 768 oz. |
| Log Splitter Features | Automatic Return, Portable, Hydraulic |
| Log Splitter Maximum Log Length | 24 in |
| Log Splitting Force | 37 ton |
| Maximum Log Diameter | 24 in. |
| Maximum PSI | 3,600 PSI |
| Engine Brand | Champion Power Equipment |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 41.7 in. |
| Product Length | 87.3 in. |
| Product Weight | 542 lb. |
| Product Width | 51.3 in. |
| Recommended Oil Type | 10W-30 |
| Splitter Type | Gas |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 0 T |
| Towability | Yes |
| Warranty | 2 Year Limited Warranty |
| Manufacturer Part Number | 201314 |
Q: will store put together
a month ago- A: Tractor Supply Co. offers assembly services through a third-party provider for select products like chicken coops, dog kennels, grills, playsets, and furniture. After completing your purchase, call Assemblers International at 878-834-5856 to quote and schedule your service. Once the Assemblers International service provider schedules the assembly service, a qualified professional will assemble your product quickly, correctly, and safely.a month agoHelpful?
Q: Can this unit be used with a 4-way axe?
a year ago- A: Hello, Thank you for reaching out. At this time, Champion does not manufacture a 4-way wedge. While there may be aftermarket options available, Champion has not tested or approved any third-party wedges for use with our log splitters. If you need any other assistance please feel free to give us a call at 877-338-0999. -Thank youa year agoHelpful?
Q: Will you assemble this splitter for me?
a year ago- A: Thank you for your question. Due to the size of the unit, it will be shipped unassembled. However, you can request in-store assembly by contacting the store directly.a year agoHelpful?
Q: will local TS store assemble ready for pickup or does it come unassembled
a year ago- A: Hello, Thank you for your inquiry regarding the assembly of our log splitters. Some of our retailers do offer assembly services before selling the units, while others may not. If you require assistance with assembly, we recommend reaching out to the store where you plan to make your purchase to inquire about their services. Please note that the availability of assembly is at the retailer’s discretion, and policies may vary by location. If they do not provide this service, they may be able to recommend a local option for assistance. If you have any further questions, please don’t hesitate to reach out. -Thank youa year agoHelpful?
Q: Does it come with hydraulic fluid
a year ago- A: Thank you for your question. Unfortunately, this unit does not come with hydraulic oil. However, it will include engine oil, an oil funnel, and a spark plug wrench.a year agoHelpful?
Q: What brand gas engine
a year ago- A: Hello, This unit comes with a Champion designed engine. -Thank youa year agoHelpful?
Q&As
Q: will store put together
a month ago- A: Tractor Supply Co. offers assembly services through a third-party provider for select products like chicken coops, dog kennels, grills, playsets, and furniture. After completing your purchase, call Assemblers International at 878-834-5856 to quote and schedule your service. Once the Assemblers International service provider schedules the assembly service, a qualified professional will assemble your product quickly, correctly, and safely.a month agoHelpful?
Q: Can this unit be used with a 4-way axe?
a year ago- A: Hello, Thank you for reaching out. At this time, Champion does not manufacture a 4-way wedge. While there may be aftermarket options available, Champion has not tested or approved any third-party wedges for use with our log splitters. If you need any other assistance please feel free to give us a call at 877-338-0999. -Thank youa year agoHelpful?
Q: Will you assemble this splitter for me?
a year ago- A: Thank you for your question. Due to the size of the unit, it will be shipped unassembled. However, you can request in-store assembly by contacting the store directly.a year agoHelpful?
Q: will local TS store assemble ready for pickup or does it come unassembled
a year ago- A: Hello, Thank you for your inquiry regarding the assembly of our log splitters. Some of our retailers do offer assembly services before selling the units, while others may not. If you require assistance with assembly, we recommend reaching out to the store where you plan to make your purchase to inquire about their services. Please note that the availability of assembly is at the retailer’s discretion, and policies may vary by location. If they do not provide this service, they may be able to recommend a local option for assistance. If you have any further questions, please don’t hesitate to reach out. -Thank youa year agoHelpful?
Q: Does it come with hydraulic fluid
a year ago- A: Thank you for your question. Unfortunately, this unit does not come with hydraulic oil. However, it will include engine oil, an oil funnel, and a spark plug wrench.a year agoHelpful?
Q: What brand gas engine
a year ago- A: Hello, This unit comes with a Champion designed engine. -Thank youa year agoHelpful?
