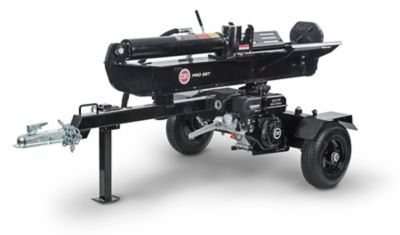

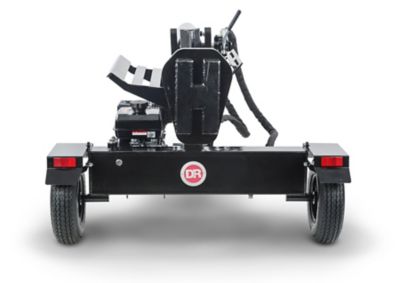

DR Power Equipment Horizontal-Vertical Pro 28T Manual Start 6.6 Hp Log Splitter, WH35028DMN
Item # 223603199
Neighbor’s Club Members earn points with purchases.
Item # 223603199
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The PRO 28T Horizontal/Vertical splitter is designed for easy transition between horizontal and vertical configurations. The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required! An easy-starting DR 6.6 HP (9.59 ft.-lb. gross torque*) engine powers the 2 stage pump (8.8 GPM), generating 3450psi of splitting force. Logs up to 30 in. in diameter and up to 25 in. long are no problem. And the PRO 28T's 17-second cycle time makes it one of the fastest hydraulic splitters in its class.Engine Warranty: 2 years residential, 90 days commercial/ Machine Warranty: 2 years residential, 90 days commercial
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.

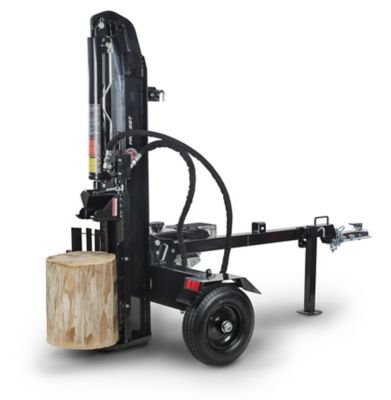

- Easy Conversion: Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Lets you split those really big rounds without lifting the log onto the beam.
- DR Engine: Easy-starting DR 6.6 HP (9.59 ft.-lb. gross torque*) engine powers the hydraulic pump. Warranted for 2 years in residential use (90 days commercial).
- Rugged Hydraulics: Hydraulic pump generates 3450 psi in the cylinder (4.5 in. bore). Steel piston compression seals provide consistent power...year after year.
- Easy Towing: A 2 in. ball hitch comes standard (with safety chains) allowing for road towing at speeds up to 45 mph. Jackstand folds up for transport.
- 4-Way Wedge: The optional 4-way wedge easily attaches to the standard vertical wedge, allowing you to get 4 logs out of one split.
- Cast Iron Beam: Provides rock solid stability in either horizontal or vertical mode without any of the rocking you get with lightweight splitters.
| Brand | DR Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0- Not Measured |
| Cycle Time | 12 sec |
| Engine Displacement | 223cc |
| Engine Type | 1-cylinder |
| Fuel Tank Capacity | 0.8 gal. |
| Horsepower | 6.6 HP |
| Hydraulic Capacity | 512 oz. |
| Log Splitter Features | Hydraulic, Portable |
| Log Splitting Force | 28 ton |
| Maximum Log Diameter | 30 in. |
| Maximum PSI | 4,100 PSI |
| Engine Brand | N/A |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 20 in. |
| Product Length | 71 in. |
| Product Weight | 530 lb. |
| Product Width | 27 in. |
| Pump Rating | 2 stage11-13 gpm |
| Recommended Oil Type | SAE 30W HD |
| Splitter Type | Electric |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 9.59 ft. - lb. |
| Towability | Yes |
| Warranty | Engine Warranty: 2 years residential, 90 days commercial/ Machine Warranty: 2 years residential, 90 days commercial |
| Manufacturer Part Number | WH35028DMN |
Q: This is in the electric category but looks like gas operated. Which is it?
2 months ago- AI-generated, Human-approvedA: This log splitter is gas-powered. It features a 6.6 HP DR engine with a 0.8-gallon fuel tank capacity and a manual start.2 months agoHelpful?
Q&As
Q: This is in the electric category but looks like gas operated. Which is it?
2 months ago- AI-generated, Human-approvedA: This log splitter is gas-powered. It features a 6.6 HP DR engine with a 0.8-gallon fuel tank capacity and a manual start.2 months agoHelpful?
