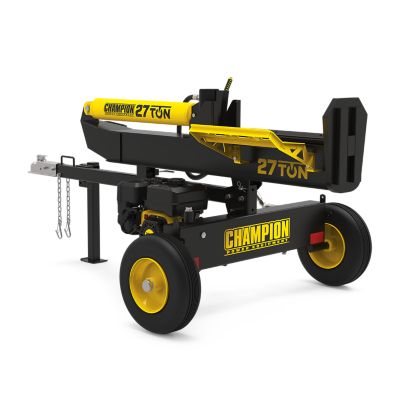

Champion Power Equipment 27 Ton Gas-Powered Horizontal/Vertical Full Beam Log Splitter with Auto Return
Champion Power Equipment 27 Ton Gas-Powered Horizontal/Vertical Full Beam Log Splitter with Auto Return
Item # 233836099
- Maximum Log Diameter:24 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:16 sec
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 233836099
- Maximum Log Diameter:24 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:16 sec
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Free delivery offer on this product..
Neighbor’s Club Members earn points with purchases.
The Champion Power Equipment 201312 27-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. Depend on the reliable recoil start to start up the powerful Champion 224cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.82-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety. Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds. Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 14 gpm to power through tough logs. Champion's efficient design has a fast 16-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 220 cycles per hour. The handy log catcher saves your back by keeping your freshly-split wood within easy reach. The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity. This log splitter will fit in most truck beds, plus it's easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications. Hassle free with included oil funnel and 10W-30 engine oil. (Note: unit comes assembled when purchased in-store; units ordered online come unassembled even if picked up in-store). This log splitter is EPA certified. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.Items Included: Oil Funnel, Engine Oil, Spark Plug Wrench
- 27 tons of splitting capacity
- Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
- 16 -second cycle time, expanded operator area and dependable auto-return valve
- Towable up to 45 mph and fits most ATV/UTV towing applications
- Extended tongue, 2-inch ball hitch coupler and 16-inch tires
- Large 224cc Champion single-cylinder OHV engine
- Capable of over 220 cycles per hour
- .82-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff
- Champion Support includes 2-year limited warranty
- FREE lifetime technical support from dedicated experts
| Brand | Champion Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 16 sec |
| Engine Displacement | 224 cc |
| Engine Type | 1-cylinder |
| Fuel Tank Capacity | 0.82 gal. |
| Horsepower | 0 hp |
| Hydraulic Capacity | 742 oz. |
| Log Splitter Features | Hydraulic, Automatic Return, Portable |
| Log Splitter Maximum Log Length | 24 in |
| Log Splitting Force | 27 ton |
| Maximum Log Diameter | 24 in. |
| Maximum PSI | 3,600 PSI |
| Engine Brand | Champion Power Equipment |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 40.8 in. |
| Product Length | 87.3 in. |
| Product Weight | 465 lb. |
| Product Width | 51.3 in. |
| Recommended Oil Type | 10W-30 |
| Splitter Hitch Type | Ball |
| Splitter Type | Gas |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 0 T |
| Towability | Yes |
| Warranty | 2 Year Limited Warranty |
| Manufacturer Part Number | 201312 |
Q: Where is this made?
4 days ago- A: Hello, Champion Power Equipment (CPE) is a US owned and operated company. All of our products are designed and engineered at our R&D facility in Milwaukee, WI, with assembly performed in China to our exact specifications. In June of 2020, CPE opened its first assembly plant in Jackson, TN, USA. Our commitment to stimulating local job growth remains strong. We employ many Americans at our headquarters, three distribution centers, and our engineering firm, which are all located in the USA. We also have a Canadian HQ and distribution center. Thank you.4 days agoHelpful?
Q: Is hydraulic oil included
7 days ago- A: Hello Gary, This unit does not include hydraulic oil, and must be purchased separately. Thank you.6 days agoHelpful?
Q: Does it include one or two log catchers
3 months ago- A: Hello, This unit only comes with one log catcher. Thank you.6 days agoHelpful?
Q: does this come with hydraulic fluid, or does that need to be purchased separately?
4 months ago- A: Hello Peter, This particular model does not include hydraulic oil, and would need to be purchased separately. Thank you.11 days agoHelpful?
Q: Ease of use for women
5 months ago- A: Hello, This log splitter has a recoil for a relatively easy pull-start, as well as an auto-return valve to reduce effort required from your end. For further questions, call us at 1-877-338-0999, email us at support@cpeauto.com or use our livechat feature on our website at championpowerequipment.com. Thank you.6 days agoHelpful?
Q: Can fenders be purchased separately and added?
5 months ago- A: Yes, fenders can be purchased separately as replacement parts for the Champion 27-Ton Log Splitter. Finding the perfect fit for your equipment is easy, just pop the name of the accessory or attachment you're looking for into the search bar on the Tractor Supply website! It’s the fastest way to see everything we have in stock to help you get the job done. If you have trouble finding the replacement part on the TSC website, you might want to try reaching out to the manufacturer directly.5 months agoHelpful?
Q: Cycle time on the 27 ton log splitter? I see conflicting times... Some say 16-second cycle time, and others say 11 seconds on the 27 ton model....What is the correct cycle time for the 27 ton model? Thank you.
a year ago- A: The 27-ton log splitter has a cycle time of 16 seconds. Thank you.a year agoHelpful?
Q: Does this 27 ton splitter, include fenders for the tires?
a year ago- A: This particular 27-ton splitter does not include fenders. Thank you.a year agoHelpful?
Q: Does this include hydrolic fluid?
a year ago- A: This splitter does not include hydraulic oil. Thank you.a year agoHelpful?
Q: Can you put a 4 way splitter attachment on this?
a year ago- A: Unfortunately, 4-way wedges cannot be added to the splitter. We are sorry about that.a year agoHelpful?
Q&As
Q: Where is this made?
4 days ago- A: Hello, Champion Power Equipment (CPE) is a US owned and operated company. All of our products are designed and engineered at our R&D facility in Milwaukee, WI, with assembly performed in China to our exact specifications. In June of 2020, CPE opened its first assembly plant in Jackson, TN, USA. Our commitment to stimulating local job growth remains strong. We employ many Americans at our headquarters, three distribution centers, and our engineering firm, which are all located in the USA. We also have a Canadian HQ and distribution center. Thank you.4 days agoHelpful?
Q: Is hydraulic oil included
7 days ago- A: Hello Gary, This unit does not include hydraulic oil, and must be purchased separately. Thank you.6 days agoHelpful?
Q: Does it include one or two log catchers
3 months ago- A: Hello, This unit only comes with one log catcher. Thank you.6 days agoHelpful?
Q: does this come with hydraulic fluid, or does that need to be purchased separately?
4 months ago- A: Hello Peter, This particular model does not include hydraulic oil, and would need to be purchased separately. Thank you.11 days agoHelpful?
Q: Ease of use for women
5 months ago- A: Hello, This log splitter has a recoil for a relatively easy pull-start, as well as an auto-return valve to reduce effort required from your end. For further questions, call us at 1-877-338-0999, email us at support@cpeauto.com or use our livechat feature on our website at championpowerequipment.com. Thank you.6 days agoHelpful?
Q: Can fenders be purchased separately and added?
5 months ago- A: Yes, fenders can be purchased separately as replacement parts for the Champion 27-Ton Log Splitter. Finding the perfect fit for your equipment is easy, just pop the name of the accessory or attachment you're looking for into the search bar on the Tractor Supply website! It’s the fastest way to see everything we have in stock to help you get the job done. If you have trouble finding the replacement part on the TSC website, you might want to try reaching out to the manufacturer directly.5 months agoHelpful?
Q: Cycle time on the 27 ton log splitter? I see conflicting times... Some say 16-second cycle time, and others say 11 seconds on the 27 ton model....What is the correct cycle time for the 27 ton model? Thank you.
a year ago- A: The 27-ton log splitter has a cycle time of 16 seconds. Thank you.a year agoHelpful?
Q: Does this 27 ton splitter, include fenders for the tires?
a year ago- A: This particular 27-ton splitter does not include fenders. Thank you.a year agoHelpful?
Q: Does this include hydrolic fluid?
a year ago- A: This splitter does not include hydraulic oil. Thank you.a year agoHelpful?
Q: Can you put a 4 way splitter attachment on this?
a year ago- A: Unfortunately, 4-way wedges cannot be added to the splitter. We are sorry about that.a year agoHelpful?
