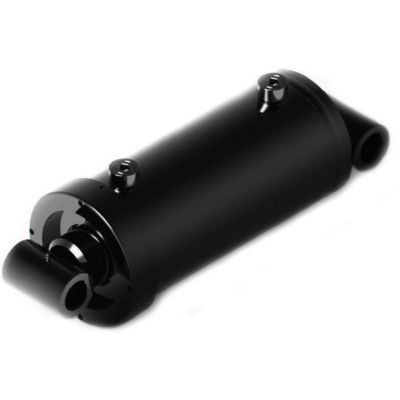

Chief WT Welded Cylinder, 5 in. Bore x 54 in. Stroke, 2.5 in. Rod Dia.

SKU # 130750699
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...



Delivery Options:

Item Information

The Chief WT Welded Cylinder with 5 in. Bore x 54 in. Stroke and 2.5 in. Rod Dia. is a high-quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the Chief WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

  • Intended Use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt Plate: steel
  • End Mounts: steel cross-tubes with grease zerk
  • Spacer Tube: steel on 48 in. stroke and above
  • Gland Seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston Seal: 755 Hallite with wear ring(s)
  • All Other Seals: selected and designed for maximum life

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 5 in.
Brand: Chief
Material: Steel
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 58900 lb.
Package Quantity: 1
Pin Diameter: 1-1/2 in.
Port Size: 3/4 in. NPTF
Product Type: Hydraulic Cylinders
Rod Diameter: 2-1/2 in.
Special Feature: Welded crosstube
Type: Welded Hydraulic Cylinder
Warranty: 3 Year
Manufacturer Part Number 216128
