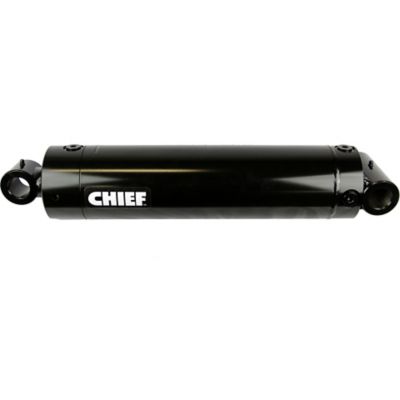

Chief 3.5 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
$599.99
The Chief 3.5 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Welded hydraulic cylinder with a 3,000 PSI operating range
- Ductile iron piston with nylon, glass-filled wear ring for durability
- Adjustable 360-degree rotating gland allows you to make port alignments as needed
- Rod is a nitrided steel bar with corrosion and scratch resistance
- Double acting hydraulic cylinder design
- Satin black paint finish
- Individually poly bagged for easy transport
- Made in the USA
- 3-year limited warranty
- All ports are recessed for a slender design
- Measures 72 in. retracted and 132 in. extended
- Pin diameter of 1 in. and rod diameter of 1.75 in.
- Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
- Column load: 6,010 lb.
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 132 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 6,010 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Primary Material | Iron |
| Product Height | 4 in. |
| Product Length | 4 in. |
| Product Weight | 114 lb. |
| Product Width | 5-1/2 in. |
| Retracted Length | 72 in. |
| Rod Diameter | 1-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 60 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 207487 |
