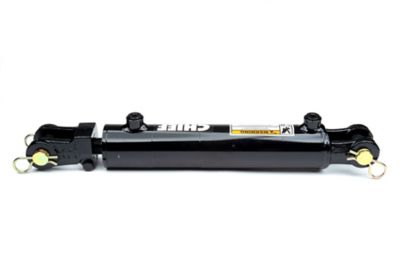

Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 1307606
$260.52
Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 1307606
$260.52
The Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron
- Gland: ductile iron
- Tube: precision-honed steel
- Rod: hard chrome-plated
- End mounts: ductile iron female clevises with pins and clips included
- Tube seals: Buna O-ring
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seal: Hallite 755 for prolonged wear resistance with wear ring
- All the hydraulic cylinder's seals are manufactured to US specifications for reliability
- Maximum PSI: 3,000
- Measures 18.25 in. retracted and 26.25 in. extended
- Pin diameter of 1 in. and rod diameter of 1.75 in.
- Column load: 28,860 lb.
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Extended Length | 8 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 28,860 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 30 lb. |
| Product Width | 0 N/A |
| Retracted Length | 18.25 in. |
| Rod Diameter | 1-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 287045 |
