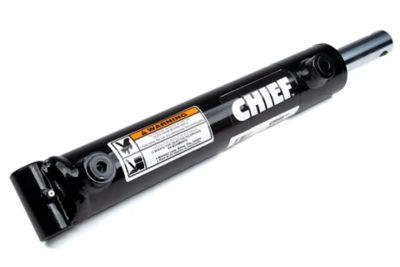

Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter

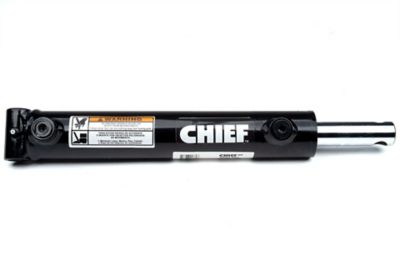

Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
$453.60
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter

4.84 Reviews

Item # 130769699

Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
$453.60
or
or
financeCard Logo
$38/mo.†  suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

  • Welded hydraulic cylinder is intended to be used in double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Measures 33 in. retracted and 57 in. extended
  • Column load: 37,690 lb.
  • Pin diameter of 1.25 in. and rod diameter of 2 in.
  • 3 year limited warranty included with hydraulic cylinder
