Champion Power Equipment 25 Ton Horizontal/Vertical Gas-Powered Full-Beam Log Splitter with Auto Return
Champion Power Equipment 25 Ton Horizontal/Vertical Gas-Powered Full-Beam Log Splitter with Auto Return
Item # 1186626
$999.99
or
or
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.
Champion Power Equipment 25 Ton Horizontal/Vertical Gas-Powered Full-Beam Log Splitter with Auto Return
Item # 1186626
$999.99
or
or
$56/mo.† suggested payments with 18 Months Financing or earn $49 in Rewards+ on this purchase.
Valid 9/21/2026 - 9/27/2026
Valid 9/21/2026 - 9/27/2026
Temporarily unavailable
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.
The Champion Power Equipment 25 Ton Horizontal/Vertical Gas-Powered Full-Beam Log Splitter with Auto Return not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. With a recoil design, this gas-powered log splitter boasts a powerful Champion engine. Complete with a cast-iron sleeve, this gas log splitter offers a 0.9 gal. fuel tank and a 0.6 qt. oil capacity (recommended 10W-30). Never struggle to lift a large, heavy log onto your log splitter again! It's equipped with a low-oil shutoff feature for safety.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 25 tons of splitting capacity with a large 224 cc Champion single-cylinder OHV engine

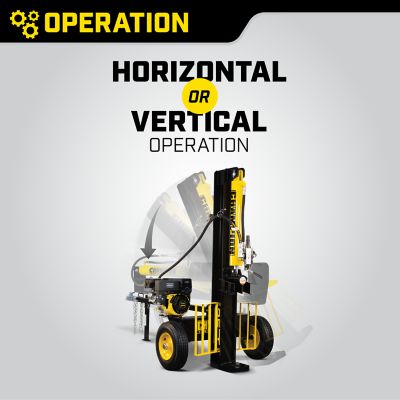

- Log splitter converts from horizontal to vertical in seconds
- 12 sec. cycle time, expanded operator area and dependable auto-return valve capable of 300 cycles per hour
- Towable up to 45 MPH and fits most ATV/UTV towing applications with an extended tongue, 2 in. ball hitch coupler and 16 in. tires

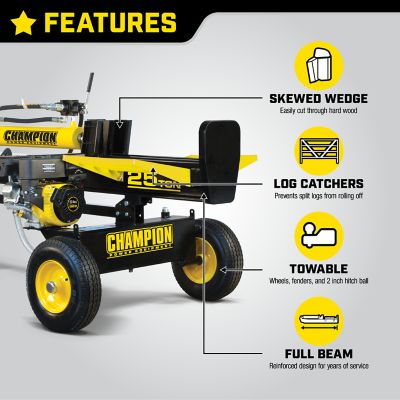

- Log catchers and an oil funnel included with log splitter
- Champion Support includes 2-year limited warranty with free lifetime technical support from dedicated experts
- EPA certified and CARB compliant gas-powered log splitter
- 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity
- Hydraulic oil system of gas log splitter has a 5 gal. oil capacity and operates at 11 GPM
- Compatible with logs up to 24 in. long, weighing up to 100 lb.
- Offers low-oil shutoff for safety
| Brand | Champion Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 N/A |
| Cycle Time | 12 sec. |
| Engine Displacement | 224cc |
| Fuel Tank Capacity | 0.9 gal. |
| Horsepower | 25 HP |
| Hydraulic Capacity | 5 gal. |
| Log Splitter Features | Hydraulic, Automatic Return, Portable |
| Log Splitter Maximum Log Length | 24 in |
| Log Splitting Force | 25 ton |
| Maximum Log Diameter | 24 in. |
| Maximum PSI | 3,900 PSI |
| Engine Brand | Champion Power Equipment |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 44.7 in. |
| Product Length | 89.3 in. |
| Product Weight | 429.9 lb. |
| Product Width | 42.9 in. |
| Recommended Oil Type | 10W-30 |
| Splitter Type | Gas |
| Start Type | Recoil |
| Tire Size | 16 in. |
| Torque | 52 lb. -ft. to 66 lb. - ft. |
| Towability | Yes |
| Warranty | Champion Support includes 2-year limited warranty with free lifetime technical support from dedicated experts |
| Manufacturer Part Number | 100251 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 73 Questions
Newest questions
Q: What is the rated hp not just the displacement in cc?
2 years ago1 Answer
- A: The rated horsepower for the engine is about 7.5. Thank you.2 years agoHelpful?
Q: Where is hyd filter located and is there one on a new unit
2 years ago1 Answer
- A: There is no external hydraulic oil filter. This splitter comes equipped with an internal oil filter, which is part 53 in the parts manual on page three: https://www.championpowerequipment.com/wp-content/uploads/2022/05/100251-EPL-English-all.pdf2 years agoHelpful?
Q: Worked great first time but will not restart. Pull cord is super tight. Have checked spark plug for oil but none found. Any suggestions? Call center does not answer phones.
2 years ago1 Answer
- A: We are very sorry to hear this. Check to make sure that your unit is producing a spark. If no spark is visible, then it is likely due to a bad ignition coil and would need replacing. Also, a weak spark (colored yellow or orange) can prevent a good startup as well. At your earliest convenience, please give us a call at 1-877-338-0999, submit a message via live chat through our site, or email at support@cpeauto.com, so we may help address this issue for you. Thank you for your patience.2 years agoHelpful?
Q: How fast can drive when towing
2 years ago1 Answer
- A: The splitter should be towed no faster than 45 mph. Thank you.2 years agoHelpful?
Q: The manual online says this machine uses a canister hydraulic oil filter (Fram PH9342 or WIX 51361). However, I don't see an external filter in any photos and some of the older posts suggest there is an internal filter. Which is correct?
3 years ago1 Answer
- A: This log splitter only contains an internal oil filter that does not need to be changed very often. We do apologize for any confusion this has caused.3 years agoHelpful?
Q: Does champion have a slip on 4 way wedge
3 years ago1 Answer
- A: Unfortunately, we do not sell or produce a 4-way wedge for our splitters. We are sorry about that.3 years agoHelpful?
Q: What type of gas does it take?
3 years ago1 Answer
- A: You can use 85 to 91 octane fuels with no noticeable difference. Now, if you have non-ethanol (ethanol free) fuel available to you, that is better for fuel storage reasons, but not for performance reasons. Use unleaded gasoline with an ethanol content of 10% or less. This means you should avoid Flex Fuels or E85 gasoline as it contains higher amounts of ethanol. Most of us are stuck with only having access to this type of fuel. If you have non-ethanol fuel available near you, it can indeed help reduce fuel storage problems. Here is a site you can use to find stations near you that offer this: www.Pure-Gas.org3 years agoHelpful?
Q: Does this unit come with hydraulic fluid and engine oil?
3 years ago1 Answer
- A: Hi there, This log splitter does not come with hydraulic fluid nor engine oil.3 years agoHelpful?
Q: How do I get an English manual? I am only able to see Spanish manual when I look at product documents.
3 years ago1 Answer
- A: Hi! You can copy this link and paste it in your web browser. We will be adding an English manual. https://www.championpowerequipment.com/wp-content/uploads/2017/08/100251-om-english.pdf3 years agoHelpful?
Q: Went to local Springfield, IL. TSC store to buy one and manager said log racks on each side you have to buy sperate so I came home with out one
3 years ago1 Answer
- A: Hi! For these accessories, please feel free to contact the manufacturer call at 1-877-338-0999 or visit our online parts store here: https://shop.championpowerequipment.com/en-us/3 years agoHelpful?
1 - 10 of 73 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 73 Questions
Newest questions
Q: What is the rated hp not just the displacement in cc?
2 years ago1 Answer
- A: The rated horsepower for the engine is about 7.5. Thank you.2 years agoHelpful?
Q: Where is hyd filter located and is there one on a new unit
2 years ago1 Answer
- A: There is no external hydraulic oil filter. This splitter comes equipped with an internal oil filter, which is part 53 in the parts manual on page three: https://www.championpowerequipment.com/wp-content/uploads/2022/05/100251-EPL-English-all.pdf2 years agoHelpful?
Q: Worked great first time but will not restart. Pull cord is super tight. Have checked spark plug for oil but none found. Any suggestions? Call center does not answer phones.
2 years ago1 Answer
- A: We are very sorry to hear this. Check to make sure that your unit is producing a spark. If no spark is visible, then it is likely due to a bad ignition coil and would need replacing. Also, a weak spark (colored yellow or orange) can prevent a good startup as well. At your earliest convenience, please give us a call at 1-877-338-0999, submit a message via live chat through our site, or email at support@cpeauto.com, so we may help address this issue for you. Thank you for your patience.2 years agoHelpful?
Q: How fast can drive when towing
2 years ago1 Answer
- A: The splitter should be towed no faster than 45 mph. Thank you.2 years agoHelpful?
Q: The manual online says this machine uses a canister hydraulic oil filter (Fram PH9342 or WIX 51361). However, I don't see an external filter in any photos and some of the older posts suggest there is an internal filter. Which is correct?
3 years ago1 Answer
- A: This log splitter only contains an internal oil filter that does not need to be changed very often. We do apologize for any confusion this has caused.3 years agoHelpful?
Q: Does champion have a slip on 4 way wedge
3 years ago1 Answer
- A: Unfortunately, we do not sell or produce a 4-way wedge for our splitters. We are sorry about that.3 years agoHelpful?
Q: What type of gas does it take?
3 years ago1 Answer
- A: You can use 85 to 91 octane fuels with no noticeable difference. Now, if you have non-ethanol (ethanol free) fuel available to you, that is better for fuel storage reasons, but not for performance reasons. Use unleaded gasoline with an ethanol content of 10% or less. This means you should avoid Flex Fuels or E85 gasoline as it contains higher amounts of ethanol. Most of us are stuck with only having access to this type of fuel. If you have non-ethanol fuel available near you, it can indeed help reduce fuel storage problems. Here is a site you can use to find stations near you that offer this: www.Pure-Gas.org3 years agoHelpful?
Q: Does this unit come with hydraulic fluid and engine oil?
3 years ago1 Answer
- A: Hi there, This log splitter does not come with hydraulic fluid nor engine oil.3 years agoHelpful?
Q: How do I get an English manual? I am only able to see Spanish manual when I look at product documents.
3 years ago1 Answer
- A: Hi! You can copy this link and paste it in your web browser. We will be adding an English manual. https://www.championpowerequipment.com/wp-content/uploads/2017/08/100251-om-english.pdf3 years agoHelpful?
Q: Went to local Springfield, IL. TSC store to buy one and manager said log racks on each side you have to buy sperate so I came home with out one
3 years ago1 Answer
- A: Hi! For these accessories, please feel free to contact the manufacturer call at 1-877-338-0999 or visit our online parts store here: https://shop.championpowerequipment.com/en-us/3 years agoHelpful?
1 - 10 of 73 Questions
