Champion Power Equipment 38-Ton Horizontal/Vertical Full Beam Gas Log Splitter with Auto Return and 270cc Honda Engine
Item # 6103167
- Maximum Log Diameter:18 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:17 sec.
Item # 6103167
- Maximum Log Diameter:18 in.
- Log Splitter Maximum Log Length:24 in
- Cycle Time:17 sec.
The Champion Power Equipment 201628 38-ton gas-powered log splitter takes on the wood other splitters back away from. Oversized oak, knotty hickory, dense rounds from a fallen tree, a property's worth of firewood waiting in the yard. With 38 tons of splitting force and a 17 sec. cycle time, it delivers up to 211 cycles per hour under ideal conditions so the longest days of splitting stay productive from start to finish. Powered by a 270cc Honda GX270 engine, the splitter drives a 2-stage, 14 GPM gear pump and a spring-centered, auto-return control valve. Push the handle forward to split, release, and the wedge resets while you load the next log. A hardened steel tapered wedge holds the log in place as it splits, and welded log strippers keep the beam clear. Handle logs up to 24 in. long, and when a round is too heavy to lift, convert from horizontal to vertical in seconds. The auto-lock horizontal pin and quick-lock vertical pin both engage with a spring-loaded pin for a positive hold in either orientation. Built around a full I-beam frame with two reinforced log catchers, an internal oil strainer, and an external thread-on oil filter, this splitter is engineered to keep running through high-volume seasons. DOT-approved pneumatic wheels rated up to 45 MPH and a 2 in. ball hitch (Class 1 or higher) let you tow it across the property or between job sites. EPA-certified, and backed by a 2-year limited warranty, with FREE lifetime technical support from North American-based experts and access to a network of authorized service centers giving you confidence in your purchase.Items included: Oil Funnel, Spark Plug Socket/Wrench
- Powers through oversized rounds, knotty hardwood, and the toughest logs other splitters can't touch with a Honda GX270 engine driving every cycle
- Up to 211 cycles per hour under ideal conditions keeps a long day productive with a spring-centered auto-return valve that resets the wedge while you load the next log

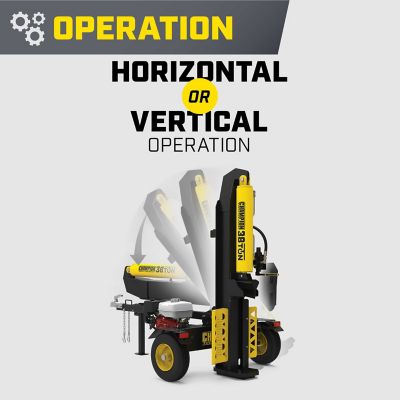

- Splits standard rounds horizontally and converts to vertical for logs too heavy to lift with auto-lock and quick-lock pins that secure the beam in either position

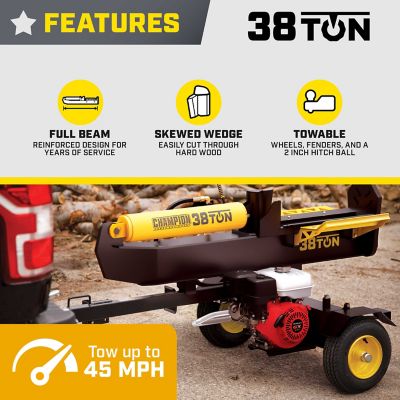

- Full I-beam frame with hardened tapered wedge, welded log strippers, and a 2-stage 14 GPM pump featuring internal strainer and external filter to protect the hydraulics
- Backed by a 2 year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country
| Brand | Champion Power Equipment |
|---|---|
| Country of Origin | Imported |
| Amperage | 0A |
| Cycle Time | 17 sec. |
| Engine Displacement | 270cc |
| Engine Type | 4-cycle |
| Fuel Tank Capacity | 1.4 gal. |
| Horsepower | 0HP |
| Hydraulic Capacity | 6 gal. |
| Log Splitter Features | Wheeled, Towable, Automatic Return, Portable |
| Log Splitter Maximum Log Length | 24 in |
| Log Splitting Force | 37 ton |
| Maximum Log Diameter | 18 in. |
| Maximum PSI | 0 PSI |
| Engine Brand | Honda |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 41.7 in. |
| Product Length | 86.3 in. |
| Product Weight | 536 lb. |
| Product Width | 51.3 in. |
| Recommended Oil Type | 0 |
| Splitter Hitch Type | Ball |
| Splitter Type | Gas |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 0 T |
| Towability | Yes |
| Warranty | 2-Year Limited Warranty |
| Manufacturer Part Number | 201628 |
