AIR COMPRESSOR 5HP SINGLE PHASE 80 GALLON TANK - 20CFM - 175 PSI - 208/230V

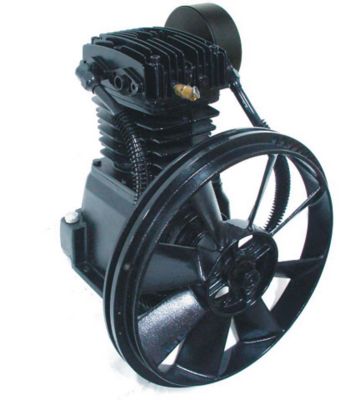

The in-line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two-stage products operate with low RPMs with a high-quality cast-iron block. The double-supported crankshaft design provides lower vibration and longer bearing life, as well as the modern valve system (reed type), provides extended service life, and excellent production efficiency. Mounted and wired magnetic starters, provide convenience and safety in operation with a ready-to-use system. The ASME certified safety valve and an air tank, as well as high-efficiency motors, make Heavy Duty L-Series compressors the best choice for your company.

Brand	SCHULZ
Country of Origin	Imported
Airflow Volume	20 CFM
Air Outlet Size	34 in.
Amperage	21 Amps
Compressor Horsepower	5 HP
Lubrication Type	Oil
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Voltage	208V/230V
Connection Type	Cable
Drain System	Drain at the bottom of the tank
Drive Type	N/A
Engine Brand	WEG MOTORS
Features	The in-line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two-stage products operate with low RPMs with a high-quality cast-iron block.
Maximum RPM	985 prm
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Gray
Primary Material	Cast Iron
Product Height	78 in.
Product Length	32 in.
Product Weight	515 lb.
Product Width	25 in.
Pump Material	Cast iron
Tank Style	Vertical
Warranty	1 YEAR FOR THE PRODUCT AND 2 YEARS ON THE PUMP
Manufacturer Part Number	932.9334-0
