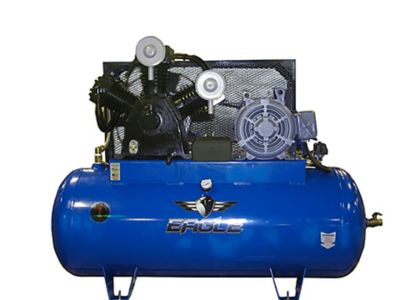

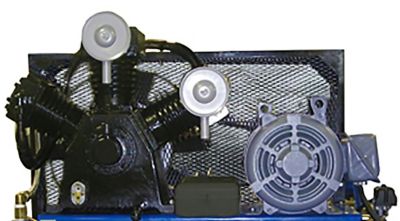

Eagle 15 HP 120 gal. 2 Stage Horizontal Air Compressor
Eagle 15 HP 120 gal. 2 Stage Horizontal Air Compressor
Item # 1685389
$5799.99
The Eagle 2-Stage Horizontal Air Compressor features an easy-view oil sight gauge and metal air filters to help you handle the task at hand. The 2-stage air compressor offers an oil sight gauge to provide an easy view.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Horizontal air compressor offers 45 CFM at 100 psi
- Heavy-duty pressure switch for on/off control
- Thermally protected 15 HP 3-Phase electric motor to provide powerful performance
- 2-stage compressor with metal air filters
- Oil drain in the front of the unit
- Easy-view oil sight gauge
- Offers efficient heat removal from the pulley fan for cooler running and longer life
| Brand | Eagle |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 45 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | N/A |
| Compressor Horsepower | 15 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 200 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V |
| Drain System | Front Oil Drain |
| Drive Type | Belt |
| Features | Thermally protected 15hp electric motor, metal air filters, sturdy metal belt guard, outlet valve included |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Blue |
| Primary Material | Steel |
| Product Height | 55 in. |
| Product Length | 72 in. |
| Product Weight | 1090 lb. |
| Product Width | 26 in. |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Horizontal |
| Warranty | 1 year |
| Manufacturer Part Number | 153120H2-MS208 |
