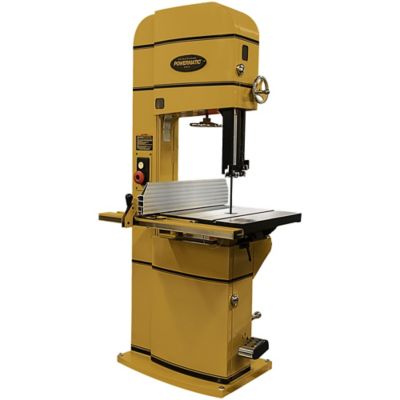

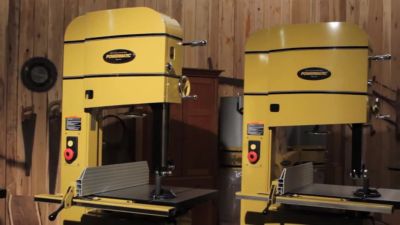

Powermatic 230/460V PM1800B-3 Band Saw, 5 HP, 3 Ph
Larger projects and larger work pieces call for more power, more re-saw capacity and more cast iron like the Powermatic PM1800B-3 Band Saw 5 HP. The heavy-duty band saw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years. Its computer-balanced cast iron wheels reduce vibration and noise while you work, providing greater comfort. This band saw is the perfect addition to your tool collection.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Computer-balanced cast iron wheels reduce vibration and noise
- Micro-adjustable and virtually tool-less bearing guide system gives close blade control while reducing friction
- Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
- Band saw with special grooved thrust bearing stabilizes smaller blades
- Blade tension lever has full tension, partial tension and release settings for easy blade changes and tracking
- Foot brake with magnetic switch interrupt provides user with hands-free stopping option
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Oversized side plate can be used in horizontal or vertical position
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Solid cast iron upper and lower wheels create momentum needed for heavy re-saw
| Brand | Powermatic |
|---|---|
| Country of Origin | Imported |
| Amperage | 15/7.5A |
| Blade Change Type | Keyless |
| Cord Length | 0 ft. |
| Cut Through | Wood |
| Dust Collection Method | 4 in. dust port |
| Features | Foot Brake, Safety Switch, Accu-Fence, |
| Horsepower | 5 HP |
| Housing Material | Cast iron |
| Maximum Blade Length | 160 in. |
| Maximum Blade Width | 1-1/2 in. |
| Maximum Cutting Width | 18 in. |
| Maximum Speed | 2300-4400 |
| Minimum Blade Length | 159.5 in. |
| Minimum Blade Width | 0.25 in. |
| Minimum Speed | 2,300 SFPM |
| Number of Speeds | 2 |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 81-1/2 in. |
| Product Length | 42 in. |
| Product Weight | 834 lb. |
| Product Width | 38 in. |
| Rectangle Length Capacity | 18 x 18 in. |
| Rectangle Width Capacity | 18 in. |
| Round Capacity | 18 in. |
| Table Height From Floor | 38 in. |
| Table Length | 24 in. |
| Table Tilt Range | 10L, 45R |
| Table Width | 27 in. |
| Variable Speed | Variable Speed |
| Voltage | 230V/460V |
| Warranty | 5 Year |
| Manufacturer Part Number | 1791801B |
