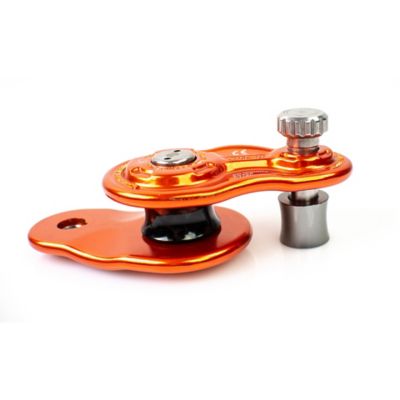

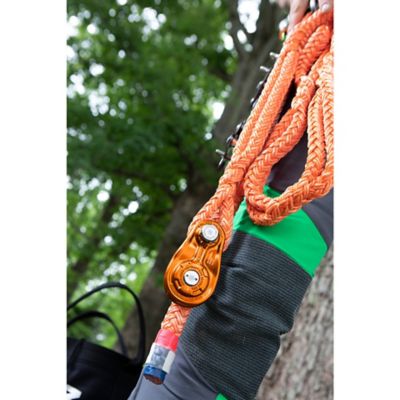

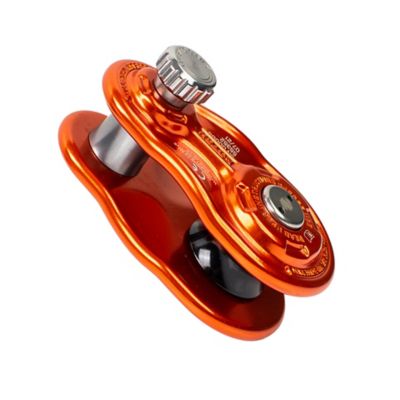

Notch 1/2 in. Rigging Spring Block (55352)
$184.99
Size: 3 in.
The Notch 1/2" Rigging Block is a small sized lightweight arborist block accepts working lines up to 1/2" (13mm) diameter. Hot forged aluminum side plates with rope friendly rounded cheeks. Precision CNC machined aluminum sheaves with wide bend radii. Stainless steel axle. Low profile, secure, easy to-open captive screw pin lock. High wall, full diameter, improved anchor sling protection. Wide, concave upper sheave accepts 5/8" anchor slings. Flared side-plates reduce twisting in complex rigging scenarios. Upper sheave diameter: .75 in. (19mm), lower sheave diameter: 1.5 in. (38mm). Working Load Limit: (WLL) 20 kN (4,496 lbs.), MBS: 100 kN (22,480 lbs.)
- Hot forged aluminum side plates with rope friendly rounded cheeks and precision CNC machined aluminum sheaves with wide bend radii
- Small sized lightweight arborist block accepts working lines up to 1/2-inch (13mm) diameter
- Low profile secure easy-to-open captive screw pin lock with a high wall a full diameter and improved anchor sling protection
- The wide concave upper sheave accepts 1-inch anchor slings while flared sideplates reduce twisting in complex rigging scenarios
- Working Load Limit: (WLL) 20 kN (4,496 lbs.)
- MBS: 100 kN (22,480 lbs.)
| Brand | Notch |
|---|---|
| Country of Origin | Imported |
| Features | None |
| High Visibility | No |
| Primary Color | Orange |
| Primary Material | Other |
| Product Height | 3 in. |
| Product Length | 4.7 in. |
| Product Weight | 1.3 lb. |
| Product Width | 2.7 in. |
| Safety Gear Product Type | Other |
| Size | Other |
| Warranty | Limited lifetime warranty against defects in materials and workmanship |
| Manufacturer Part Number | 55352 |
