Maxim 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

5.01 Reviews

Item # 130775299

Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
$244.25

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Maxim 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

5.01 Reviews

Item # 130775299

Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 6 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
$244.25

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

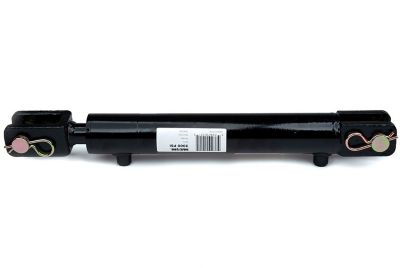

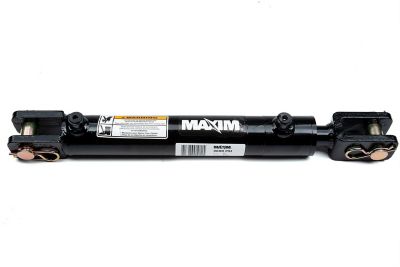

The Maxim 4 in. Bore x 6 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Painted black
  • Intended for double-acting applications
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston lock nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • High-tensile cold drawn tube is precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • High-tensile ground and polished hard chrome-plated rod for durability
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane

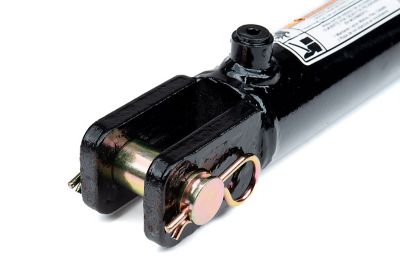

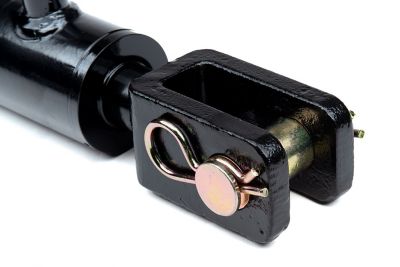

  • Cast female clevises with pins and clips are the hydraulic cylinder's end mounts
  • Pin and pin clip: high-tensile zinc-plated steel
  • Piston ID seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings
  • Welded hydraulic cylinder has a 4 in. bore and 6 in. stroke length
  • Measures 16.25 in. retracted and 22.25 in. extended
  • Column load: 37,690 lb.
  • Pin diameter of 1 in. and rod diameter of 2 in.
  • 1 year warranty
