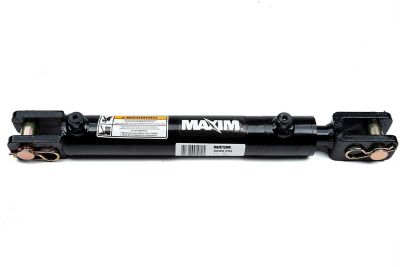

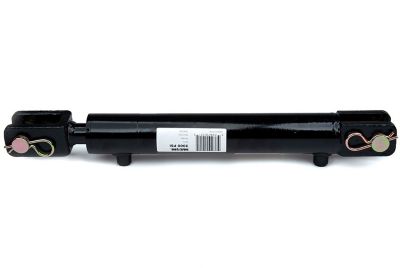

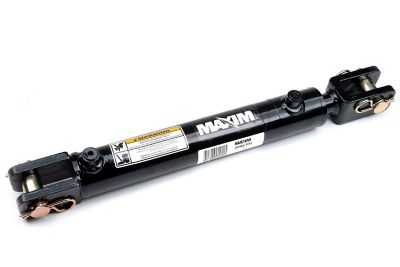

Maxim 2.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Maxim 2.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Item # 130772399
$199.99
or
or
Neighbor’s Club Members earn points with purchases.
Maxim 2.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Item # 130772399
$199.99
or
or
$34/mo.† suggested payments with 6 Months Financing or earn $9 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.
The Maxim 2.5 in. Bore x 20 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Set up is easy because the welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black for simple style
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod is made to last
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

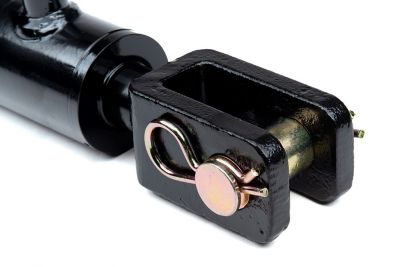

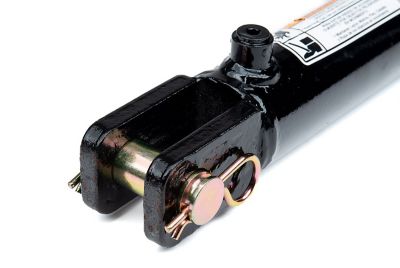

- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Versatile and long lasting hydraulic cylinder has a 2.5 in. bore and 20 in. stroke length
- Welded cylinder has a retracted length of 30.25 in. and extended length of 50.25 in.
- Column load: 14,720 lb.
- Weight: 33 lb.
- Maximum PSI: 3,000 PSI
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 50.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14,720 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 35 lb. |
| Product Width | 0 N/A |
| Retracted Length | 30.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 20 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288422 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Can 3/8 inch size hydraulic hose be used with this hydraulic cylinder?
2 years ago1 Answer
- A: Hi there, Per the vendor: If a 3/8 ID hose will with as long as the flow is less than 12GPM. If it will be 12GPM or higher, I would bump up to ½ ID hose.2 years agoHelpful?
Q: What is the measurement from the pin on one end to the pin on the other? End of both pin holes will do. Thank you. K
7 years ago1 Answer
- A: It is 30.25" center to center.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Can 3/8 inch size hydraulic hose be used with this hydraulic cylinder?
2 years ago1 Answer
- A: Hi there, Per the vendor: If a 3/8 ID hose will with as long as the flow is less than 12GPM. If it will be 12GPM or higher, I would bump up to ½ ID hose.2 years agoHelpful?
Q: What is the measurement from the pin on one end to the pin on the other? End of both pin holes will do. Thank you. K
7 years ago1 Answer
- A: It is 30.25" center to center.7 years agoHelpful?
