Maxim 3.5 in. Bore x 12 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Maxim 3.5 in. Bore x 12 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 130774399
$199.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Maxim 3.5 in. Bore x 12 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 130774399
$199.99
or
or
$34/mo.† suggested payments with 6 Months Financing or earn $9 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

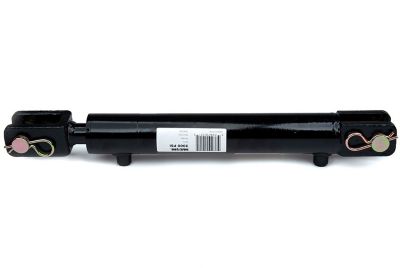

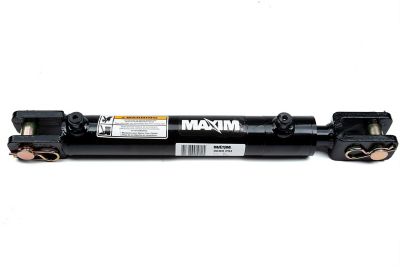

The Maxim 3.5 in. Bore x 12 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- Made with high-tensile cold drawn tube, precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for durability
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

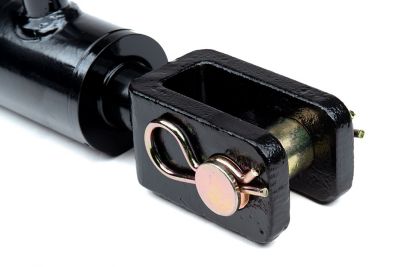

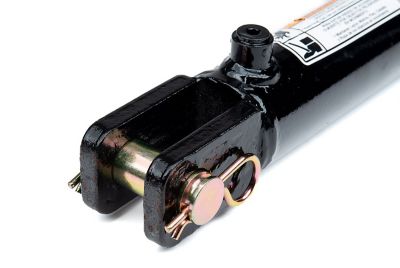

- Cast female clevises with pins and clips are end mounts for the hydraulic cylinder
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Has a 3.5 in. bore and 12 in. stroke length
- Welded hydraulic cylinder measures 16 in. retracted and 24 in. extended
- Column load: 28,860 lb.
- Has a 3.5 in. bore and 12 in. stroke length
- Pin diameter of 1 in. and rod diameter of 1.75 in.
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 34.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 28,860 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 41 lb. |
| Product Width | 0 N/A |
| Retracted Length | 22.25 in. |
| Rod Diameter | 1-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288444 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Will this substitute for a Wing Cylinder on a older JD HX15 (JD AW31705)
3 years ago1 Answer
- A: Hi there, Yes, you should be able to use this. Bore Diameter 3.5 in. Brand Compatibility Universal Compatibility Universal3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Will this substitute for a Wing Cylinder on a older JD HX15 (JD AW31705)
3 years ago1 Answer
- A: Hi there, Yes, you should be able to use this. Bore Diameter 3.5 in. Brand Compatibility Universal Compatibility Universal3 years agoHelpful?
