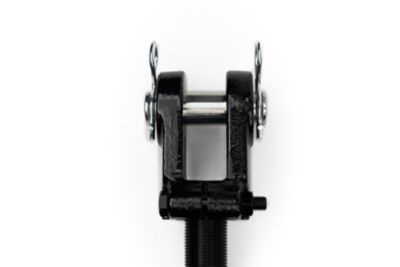

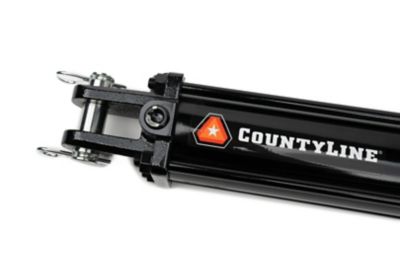

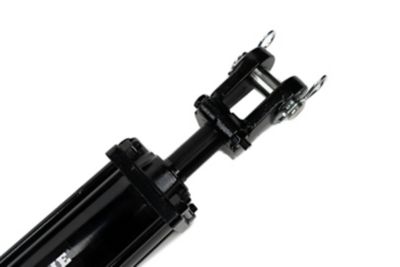

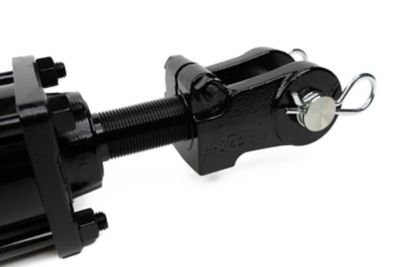

CountyLine 3.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Limited Time Deal
Exclusive
CountyLine 3.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Item # 126513999
Stocked & Ready
$19799
Sale
Save(40%)
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Exclusive
CountyLine 3.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Item # 126513999
Stocked & Ready
$19799
Sale
Save(40%)
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 3.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. The hydraulic cylinder is well suited to perform in demanding applications in any industry. This tie rod hydraulic cylinder provides value pricing without sacrificing quality.
- 3.5 in. bore x 8 in. stroke
- Hydraulic cylinder has a 2,500 PSI operating range
- Used for agricultural applications
- Tie rod hydraulic cylinder exceeds industry standards
- 1.25 in. rod diameter
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Unknown |
| Extended Length | 28.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 24,050 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 12 NPT |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 20.25 in. |
| Product Weight | 34 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.25 in. |
| Stroke Distance | 8 in. |
| Manufacturer Part Number | 318303 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What are the specs on a replacement rod for this
9 days ago1 Answer
- A: This hydraulic cylinder features a 1.25-inch rod diameter and a 1-inch pin diameter. It is designed with a 3.5-inch bore and an 8-inch stroke distance.8 days agoHelpful?
Q: Is this a rephasing cylinder and if not do you sell rephasing cylinders
4 months ago1 Answer
- A: This is not a rephasing cylinder.Contatc your local TSC store for assistance with does TSC sell rephasing cylinders.4 months agoHelpful?
Q: Is there a rebuild kit available?
3 years ago1 Answer
- A: The seal kit for this cylinder is Bailey part #204-505. We are currently out of stock, lead time is 8-12 weeks.3 years agoHelpful?
Q: What is the retracted length in inches, pin to pin?
3 years ago1 Answer
- A: The retracted dimension is 20.25"3 years agoHelpful?
Q: How much weight will it lift at 2500 psi?
4 years ago1 Answer
- A: The column load, or perfectly vertical lifting max capacity is 24,000 lbs.4 years agoHelpful?
Q: Will this replace bush hog #99565. Thanks
5 years ago1 Answer
- A: This should be a direct replacement however I would advise the customer to verify the retracted length of the cylinder to be sure.5 years agoHelpful?
Q: What is the port size? 20.25 Length -- Is that the collapsed pin hole to pin hole length? --- What is the pin size?
5 years ago1 Answer
- A: The retracted length listed is measured fully retracted from center of pin to center of pin. The pin diameter is 1" and the port size is 1/2 NPT.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What are the specs on a replacement rod for this
9 days ago1 Answer
- A: This hydraulic cylinder features a 1.25-inch rod diameter and a 1-inch pin diameter. It is designed with a 3.5-inch bore and an 8-inch stroke distance.8 days agoHelpful?
Q: Is this a rephasing cylinder and if not do you sell rephasing cylinders
4 months ago1 Answer
- A: This is not a rephasing cylinder.Contatc your local TSC store for assistance with does TSC sell rephasing cylinders.4 months agoHelpful?
Q: Is there a rebuild kit available?
3 years ago1 Answer
- A: The seal kit for this cylinder is Bailey part #204-505. We are currently out of stock, lead time is 8-12 weeks.3 years agoHelpful?
Q: What is the retracted length in inches, pin to pin?
3 years ago1 Answer
- A: The retracted dimension is 20.25"3 years agoHelpful?
Q: How much weight will it lift at 2500 psi?
4 years ago1 Answer
- A: The column load, or perfectly vertical lifting max capacity is 24,000 lbs.4 years agoHelpful?
Q: Will this replace bush hog #99565. Thanks
5 years ago1 Answer
- A: This should be a direct replacement however I would advise the customer to verify the retracted length of the cylinder to be sure.5 years agoHelpful?
Q: What is the port size? 20.25 Length -- Is that the collapsed pin hole to pin hole length? --- What is the pin size?
5 years ago1 Answer
- A: The retracted length listed is measured fully retracted from center of pin to center of pin. The pin diameter is 1" and the port size is 1/2 NPT.5 years agoHelpful?
Reviews
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
1 to 4 of 40 Reviews .
1 – 4 of 40 Reviews
Most Recent
Bedias Texas
Reviews 2
5 out of 5 stars.
In stock fits all type of machines
a year ago
Love that they have these in stock.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Marshall, MO
Review 1
5 out of 5 stars.
I'm just kidding, but it did fix my brush hog
a year ago
This Hydraulic Cylinder changed my life.
Yes, I recommend this product.
Fredericksburg VA
Reviews 3
5 out of 5 stars.
Hydraulic Cylinder.
2 years ago
Strong cylinder and helped get the sawmill back to running!
SweepstakesYes
Flandreau, SD
Reviews 7
5 out of 5 stars.
Good deal.
2 years ago
Good fit. Can be used in different configurations.
Yes, I recommend this product.
