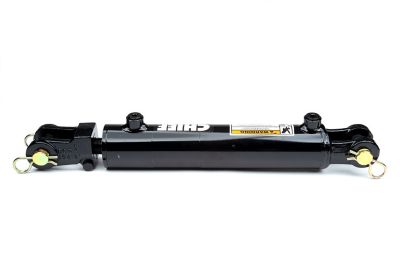

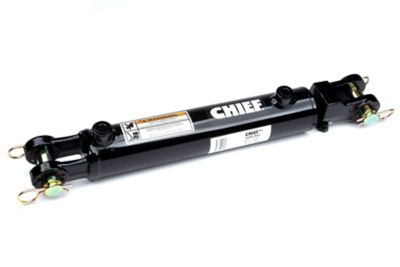

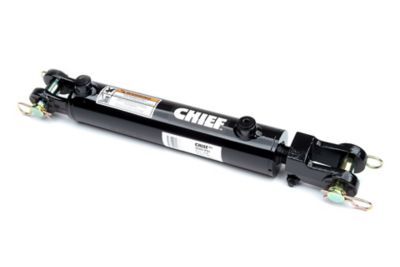

Chief 3 in. Bore x 12 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Item # 1307595
Item # 1307595
The Chief 3 in. Bore x 12 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use: double-acting applications
- Piston: ductile iron
- Gland: ductile iron
- Tube: precision-honed steel
- Rod: hard chrome-plated

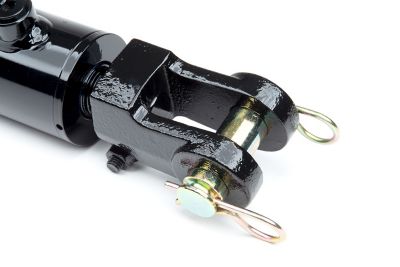

- End mounts: ductile iron female clevises with pins and clips included
- Tube seals: Buna O-ring
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seal: Hallite 755 for prolonged wear resistance with wear ring
- All seals: manufactured to US specifications
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Welded hydraulic cylinder with SAE O-ring ports that allow for easy hookup
- Has a 3,000 PSI operating range
- 3-year limited warranty
- Measures 20.25 in. retracted and 30.25 in. extended
- Individually poly bagged hydraulic cylinder is easy to transport
- Column load: 21,200 lb.
- Pin diameter of 1in. and rod diameter of 1.5 in.
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 34.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.6 in. |
| Product Length | 10.25 in. |
| Product Weight | 29.98 lb. |
| Product Width | 2.7 in. |
| Retracted Length | 22.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 287034 |
