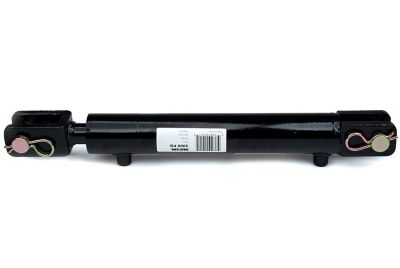

Maxim 2 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
$209.99
Maxim 2 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Maxim 2 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
5.02 Reviews
Item # 130770799
$209.99
or
or
Neighbor’s Club Members earn points with purchases.
Maxim 2 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
5.02 Reviews
Item # 130770799
$209.99
or
or
$35/mo.† suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.Apply now
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 2 in. Bore x 14 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Set up is easy because the welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black for simple style
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- Tube: high-tensile cold drawn tube, precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for durability
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

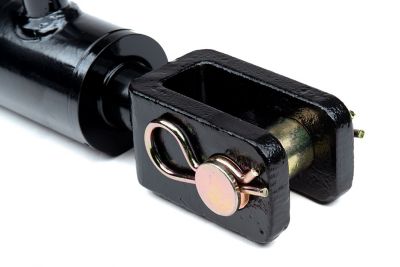

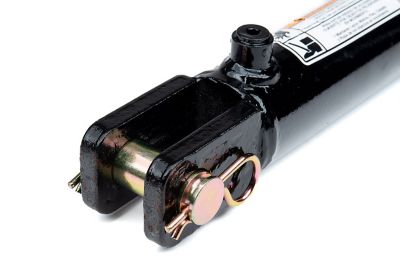

- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Hydraulic cylinders have a 2 in. bore and 14 in. stroke length
- Reliable and robust welded cylinder has a retracted length of 24.25 in. and extended length of 38.25 in.
- Column load: 9,420 lb.
- Weight: 20.5 lb.
- 1 year warranty
- 3,000 maximum PSI
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 38.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 20 lb. |
| Product Width | 0 N/A |
| Retracted Length | 24.25 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 14 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288406 |
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: What is the outer width of the yokes (where the pin goes through)? (ALL your hydraulic cylinders need to give this crucial information.)
4 years ago1 Answer
- A: It is 2 inches4 years agoHelpful?
