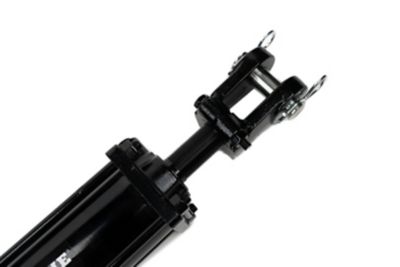

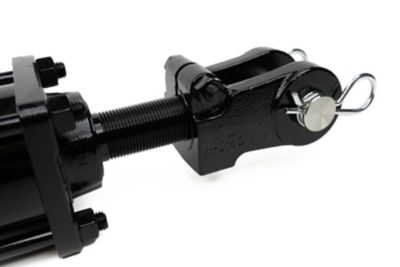

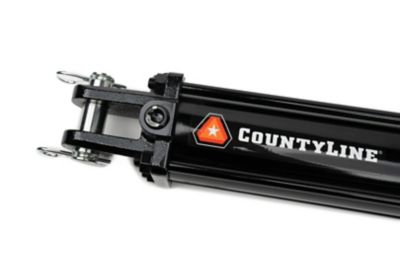

CountyLine 3 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
$17999
Sale
Save(40%)
CountyLine 3 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Limited Time Deal
Exclusive
CountyLine 3 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Item # 126513899
Stocked & Ready
$17999
Sale
Save(40%)
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Exclusive
CountyLine 3 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.25 in. Rod Diameter, 2,500 PSI
Item # 126513899
Stocked & Ready
$17999
Sale
Save(40%)
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 9/20/26.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 3 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. The hydraulic cylinder is well suited to perform in demanding applications. The tie rod hydraulic cylinder offers a 2,500 PSI operating range
- 3 in. bore x 8 in. stroke
- 1.25 in. rod diameter
- Hydraulic cylinder has a 2,500 PSI operating range
- Used for agricultural applications
- Tie rod hydraulic cylinder exceeds industry standards
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Unknown |
| Extended Length | 28.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 17,670 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 12 NPT |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 20.25 in. |
| Product Weight | 31 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.25 in. |
| Stroke Distance | 8 in. |
| Manufacturer Part Number | 318302 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Is this for catergory 1 implements?
3 months ago1 Answer
- A: The end user would need to validate that with the manufacturer of the implement.2 months agoHelpful?
Q: Is there a reseal kit available?
a year ago1 Answer
- A: Contact your local TSC store for assistance,a year agoHelpful?
Q: Is this a single or dual action cylinder
a year ago1 Answer
- A: This cylinder is a double acting tie-rod.a year agoHelpful?
Q: Can this be used as a single acting cylinder with a vent on one end?
2 years ago1 Answer
- A: The cylinder in question can be used as a single acting cylinder. While the seals are not the correct seals for single acting operation, many customers do use them for that. If there were a leak, it would not be covered under out warranty though.2 years agoHelpful?
Q: what is the distance between the center of yoke?
2 years ago1 Answer
- A: Please check your email for the requested information.2 years agoHelpful?
Q: Who manufactures the cylinders for county line?
3 years ago1 Answer
- A: These are made in China3 years agoHelpful?
Q: Will this work on a bush hog 3210?
4 years ago1 Answer
- A: The end user will have to take all the correct measurements and verify that it will work on their machine. I do not have a crossover for our cylinders to all the machines out there4 years agoHelpful?
Q: Is this double acting?
4 years ago1 Answer
- A: Yes, this cylinder is a double acting tie-rod.4 years agoHelpful?
Q: What size hydraulic hose fitting dose this take?
4 years ago2 Answers
- A: ½” NPT ports4 years agoHelpful?
Q: What is/are the pin diameter(s) for this cylinder?
4 years ago1 Answer
- A: These have 1” pins.4 years agoHelpful?
1 - 10 of 12 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Is this for catergory 1 implements?
3 months ago1 Answer
- A: The end user would need to validate that with the manufacturer of the implement.2 months agoHelpful?
Q: Is there a reseal kit available?
a year ago1 Answer
- A: Contact your local TSC store for assistance,a year agoHelpful?
Q: Is this a single or dual action cylinder
a year ago1 Answer
- A: This cylinder is a double acting tie-rod.a year agoHelpful?
Q: Can this be used as a single acting cylinder with a vent on one end?
2 years ago1 Answer
- A: The cylinder in question can be used as a single acting cylinder. While the seals are not the correct seals for single acting operation, many customers do use them for that. If there were a leak, it would not be covered under out warranty though.2 years agoHelpful?
Q: what is the distance between the center of yoke?
2 years ago1 Answer
- A: Please check your email for the requested information.2 years agoHelpful?
Q: Who manufactures the cylinders for county line?
3 years ago1 Answer
- A: These are made in China3 years agoHelpful?
Q: Will this work on a bush hog 3210?
4 years ago1 Answer
- A: The end user will have to take all the correct measurements and verify that it will work on their machine. I do not have a crossover for our cylinders to all the machines out there4 years agoHelpful?
Q: Is this double acting?
4 years ago1 Answer
- A: Yes, this cylinder is a double acting tie-rod.4 years agoHelpful?
Q: What size hydraulic hose fitting dose this take?
4 years ago2 Answers
- A: ½” NPT ports4 years agoHelpful?
Q: What is/are the pin diameter(s) for this cylinder?
4 years ago1 Answer
- A: These have 1” pins.4 years agoHelpful?
1 - 10 of 12 Questions
Similar Items
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
Frequently Bought Together
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
Top Rated
Reviews
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Customer Images and Videos
1 to 4 of 56 Reviews .
1 – 4 of 56 Reviews
Most Recent
Gonzales,TX
Reviews 3
5 out of 5 stars.
Perfect fit
a year ago
Fit and worked as expected.
SweepstakesYes
Yes, I recommend this product.
NC
Reviews 2
2 out of 5 stars.
cheaper at dealership
2 years ago
tried 2 of them and would work one way but not the other. Returned both went to JD and bought one $35 cheaper no problems with it
SweepstakesYes
Pennsylvania
Reviews 2
5 out of 5 stars.
Cylinder
2 years ago
Bought for woods brush hog and it fit perfectly
SweepstakesYes
Yes, I recommend this product.
Rootstown, Ohio
Reviews 2
5 out of 5 stars.
Countyline hydraulic cylinder.
2 years ago
Fit perfectly. Used it on a 10 foot transport disc. Does a great job with no issues.
SweepstakesYes
Yes, I recommend this product.
