Kohler-Rehlko Command Pro Commercial Series 9.5 HP Engine, Recoil Start, 2:1 Wet Clutch Gear Box
Online Only
Item # 1207691
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1207691
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

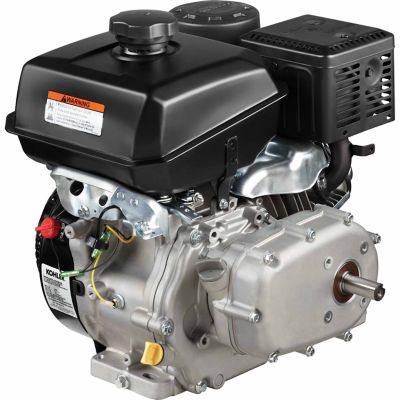

Invest in a quality Kohler-Rehlko engine for your gear. The Kohler-Rehlko Command PRO Commercial Series 9.5HP Engine has an 2:1 wet clutch gear box the output shaft that is 22mm diameter x 52.5mm length, a stellite exhaust valve and 10 A charging system. Complete with a balance shaft and oil sentry switch, this Kohler-Rehlko engine has it all. Experience true Kohler-Rehlko power when you install this Kohler-Rehlko replacement engine.3 years
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on lawn mower maintenance? Check out our guide on lawn mower maintenance in the product documents section.
- Overhead valve design
- Features electronic ignition
- Quad-clean 4-stage all-season heavy-duty cyclonic air cleaner
- Kohler-Rehlko 9.5hp engine offers variable speed options
- Dual oil fill locations and oil drains
- Kohler-Rehlko engine includes cast iron cylinder liner
- 7-liter metal tank with strainer
- Fuel shut-off valve (unless otherwise mentioned)
- Stellite exhaust valve
- Engine mounted throttle and choke controls, remote throttle ready
- Oil sentry switch installed (no light)
- Dual ball bearings, PTO and flywheel
- Features balance shaft
- Metal blower housing offered
- Engine has index-able recoil starter
- For engines with SAE crankshaft: 6.5 in. diameter bolt circle (4 holes) 3/8-16 UNC thread x 0.71 in. deep and 5 in. diameter bolt circle (4 and 2 Holes) 5/16-24 UNF threads x 0.71 in. deep
- Large capacity muffler with heat shield and spark arrestor
- Multi-language owner's manual
- Black with cast aluminum
- Compliance Information: Carb Tier III, EPA phase 3 and RFI compliant
| Brand | Kohler-Rehlko |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Engine Displacement | 277cc |
| Engine Make | Kohler |
| Engine Type | 4-cycle |
| Features | CARB Compliant |
| Fuel Capacity | 7 L |
| Fuel Type | Gasoline |
| Horsepower | 9.5 HP |
| Model Compatibility | For engines with 2:1 gearbox |
| Oil Capacity | 0.6 qt. |
| Orientation | Horizontal |
| Product Type | Mower Engines |
| Primary Material | Aluminum |
| Product Height | 16.8 in. |
| Product Length | 12.4 in. |
| Product Weight | 61.5 lb. |
| Product Width | 17.8 in. |
| Recommended Oil Type | 10W30 |
| Warranty | 3 Year |
| Manufacturer Part Number | PA-CH395-3038 |
Q: Is the 2:1 wet clutch gear box installed on the engine?
a year ago- A: Yes, the engine features a 2:1 gear reduction with a wet clutch as a standard component.a year agoHelpful?
Q: does this engine have an oil filter?
2 years ago- A: No it does not. It is a splash lube engine with dual ball bearings on the crankshaft.2 years agoHelpful?
Q&As
Q: Is the 2:1 wet clutch gear box installed on the engine?
a year ago- A: Yes, the engine features a 2:1 gear reduction with a wet clutch as a standard component.a year agoHelpful?
Q: does this engine have an oil filter?
2 years ago- A: No it does not. It is a splash lube engine with dual ball bearings on the crankshaft.2 years agoHelpful?
