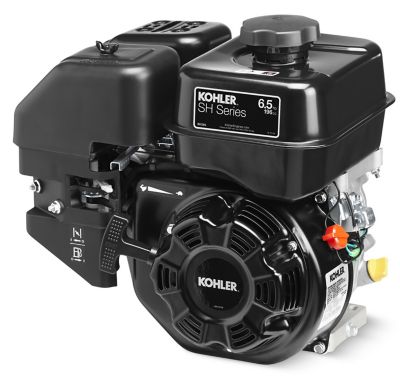

Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start
$399.99
Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start
Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start
Item # 100620199
$399.99
or
or
Notice:
This Item cannot be shipped to CA.Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start
Item # 100620199
$399.99
or
or
$34/mo.† suggested payments with 12 Months Financing or earn $19 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Notice:
This Item cannot be shipped to CA.Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Feel the power of Kohler-Rehlko when you use this SH Series engine. The Kohler-Rehlko 6.5 HP Engine has a crankshaft that is 0.75 in. in diameter and 2.42 in. in PTO length and tapped 5/16-24 UNF. with dual oil drains, variable speed options and dual ball bearings, this Kohler-Rehlko SH-Series engine features an overhead valve design. Add this Kohler-Rehlko Engine to your gear today.2 years
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on lawn mower maintenance? Check out our guide on lawn mower maintenance in the product documents section.
- Features overhead valve design
- Variable speed options available
- Electronic ignition for ease
- Engine has dual element air cleaner (unless otherwise mentioned)
- Dual oil fill land drain locations available
- Carb Tier III, EPA phase 3 and RFI compliant
- Cast iron cylinder liner
- 3.3 L metal fuel tank with strainer
- Fuel shut-off valve (unless otherwise mentioned)
- Engine mounted throttle and choke controls, remote throttle ready
- Oil sentry switch installed (no light)
- Dual ball bearings, PTO and flywheel
- Metal blower housing
- Indexable recoil starter
- PTO face included with lawn mower engine
- For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread
- Large capacity muffler with heat shield
- Multi-lingual owner's manual included
- Black with cast aluminum
| Brand | Kohler-Rehlko |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Engine Displacement | 196cc |
| Engine Make | Kohler |
| Engine Type | 4-cycle |
| Features | CARB Compliant |
| Fuel Capacity | 3.3 L |
| Fuel Type | Gasoline |
| Horsepower | 6.5 HP |
| Model Compatibility | Universal |
| Oil Capacity | 0.6 qt. |
| Orientation | Horizontal |
| Product Type | Mower Engines |
| Primary Material | Aluminum |
| Product Height | 14.6 in. |
| Product Length | 9.9 in. |
| Product Weight | 39 lb. |
| Product Width | 14.5 in. |
| Recommended Oil Type | Kohler 10W-30 |
| Warranty | 2 Year |
| Manufacturer Part Number | PA-SH265-3011 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 29 Questions
Newest questions
Q: What's the valve clearance on intake and exhaust?
11 days ago1 Answer
- A: The valve clearance on the intake and exhaust valves are: .004” intake valve, .006” exhaust valve.10 days agoHelpful?
Q: Does this engine fit a county line 22 ton log splitter
a year ago1 Answer
- A: Yes, it should but you will need to confirm that your old crankshaft diameter is 3/4 inch.a year agoHelpful?
Q: What size is(are) the drain plug(s)?
2 years ago1 Answer
- A: It is a metric thread, M10 X 1.25. It is not pipe thread, it uses a gasket. Kohler does not offer an adapter at this time to adapt to a standard pipe thread to extend the drain out.2 years agoHelpful?
Q: Will this engine work for the county line 22 ton wood splitter
2 years ago1 Answer
- A: As long as your old engine is a horizontal shaft engine, yes it will.2 years agoHelpful?
Q: How to change the oil?
3 years ago1 Answer
- A: Hello, Please review the manual it provides this information. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/00/62/01/1006201_Man1.pdf3 years agoHelpful?
Q: I purchased a Huskee 22 ton log spliter purchased from Tractor Supply -Huskee no longer in business. The engine failed beyond repair. It need a vertical shaft motor. It shows as a horizontal crankshaft. Options?
3 years ago1 Answer
- A: Hey there, Please reach out directly to our phone customer service team at 1 (877) 718-67503 years agoHelpful?
Q: I also need this enginecto bolt up to the log splitter i purchased from Tractor Supply! Is this the correct engine?
3 years ago1 Answer
- A: Hey there, Thanks for reaching out. Without knowing the type of log splitter you have, we would suggest reaching out to your splitter manufacturer or Kohler engines to verify compatibility. https://kohlerpower.com/en/engines/contact-us3 years agoHelpful?
Q: Is this for the Kohler sh series 6.5hp 196cc? The 3rd picture has the pro series (not the one I need). So which one is this listing for?
3 years ago1 Answer
- A: Hi Sshouser, Great catch! Thank you for bringing this to our attention. This listing is for the 6.5 hp engine. The photo of the 5.5 engine was uploaded in error.3 years agoHelpful?
Q: Is this exact replacement for cub cadet tiller
4 years ago1 Answer
- A: To better assist you, we would need the model and serial number of your tiller.4 years agoHelpful?
Q: What is the effort required to pull the engine starter cord? High, medium, easy? Older shoulders need help. thank you
4 years ago1 Answer
- A: Medium4 years agoHelpful?
1 - 10 of 29 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 29 Questions
Newest questions
Q: What's the valve clearance on intake and exhaust?
11 days ago1 Answer
- A: The valve clearance on the intake and exhaust valves are: .004” intake valve, .006” exhaust valve.10 days agoHelpful?
Q: Does this engine fit a county line 22 ton log splitter
a year ago1 Answer
- A: Yes, it should but you will need to confirm that your old crankshaft diameter is 3/4 inch.a year agoHelpful?
Q: What size is(are) the drain plug(s)?
2 years ago1 Answer
- A: It is a metric thread, M10 X 1.25. It is not pipe thread, it uses a gasket. Kohler does not offer an adapter at this time to adapt to a standard pipe thread to extend the drain out.2 years agoHelpful?
Q: Will this engine work for the county line 22 ton wood splitter
2 years ago1 Answer
- A: As long as your old engine is a horizontal shaft engine, yes it will.2 years agoHelpful?
Q: How to change the oil?
3 years ago1 Answer
- A: Hello, Please review the manual it provides this information. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/00/62/01/1006201_Man1.pdf3 years agoHelpful?
Q: I purchased a Huskee 22 ton log spliter purchased from Tractor Supply -Huskee no longer in business. The engine failed beyond repair. It need a vertical shaft motor. It shows as a horizontal crankshaft. Options?
3 years ago1 Answer
- A: Hey there, Please reach out directly to our phone customer service team at 1 (877) 718-67503 years agoHelpful?
Q: I also need this enginecto bolt up to the log splitter i purchased from Tractor Supply! Is this the correct engine?
3 years ago1 Answer
- A: Hey there, Thanks for reaching out. Without knowing the type of log splitter you have, we would suggest reaching out to your splitter manufacturer or Kohler engines to verify compatibility. https://kohlerpower.com/en/engines/contact-us3 years agoHelpful?
Q: Is this for the Kohler sh series 6.5hp 196cc? The 3rd picture has the pro series (not the one I need). So which one is this listing for?
3 years ago1 Answer
- A: Hi Sshouser, Great catch! Thank you for bringing this to our attention. This listing is for the 6.5 hp engine. The photo of the 5.5 engine was uploaded in error.3 years agoHelpful?
Q: Is this exact replacement for cub cadet tiller
4 years ago1 Answer
- A: To better assist you, we would need the model and serial number of your tiller.4 years agoHelpful?
Q: What is the effort required to pull the engine starter cord? High, medium, easy? Older shoulders need help. thank you
4 years ago1 Answer
- A: Medium4 years agoHelpful?
1 - 10 of 29 Questions
Similar Items
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
Reviews
- starting
- purchase
- fuel
- satisfaction
- wood
- oil
- price
- installation
1 to 4 of 52 Reviews .
1 – 4 of 52 Reviews
Most Recent
Review 1
5 out of 5 stars.
New engine start first pull
8 months ago
If you but a log spiller from tracter Suply this is the original engine
SweepstakesYes
Yes, I recommend this product.
Oklahoma
Reviews 4
5 out of 5 stars.
Easy to swap out and runs well.
9 months ago
As a woman who is not a mechanic and never even had a clue how to, I was able to change this motor out on my log splitter. It starts 1st.
Yes, I recommend this product.
Review 1
5 out of 5 stars.
6.5 Hp Kohler Gasoline Engine
11 months ago
Great product, easy install.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Seattle area
Review 1
5 out of 5 stars.
Arrived earlier than expected and was pretty well.
a year ago
Runs good one or two pulls to start.
SweepstakesYes
Yes, I recommend this product.
