Karavan Trailer 5.5 x 9 HD, 475-00003-BT-FA
Karavan Trailer 5.5 x 9 HD, 475-00003-BT-FA
Item # 2054692
$1,999.99
or
or
Notice:
This Item cannot be shipped to CA, CO, ID, KS, LA, MD, NV, PA, UT.
Neighbor’s Club Members earn points with purchases.
$1,999.99
or
or
$42/mo.† for 48 months at 0% APR or earn $99 in Rewards+ on this purchase.
Valid 9/21/2026 - 9/27/2026
Valid 9/21/2026 - 9/27/2026
Out of stock at or near
Grassland (franklin) TN
This is a Big & Bulky item.
This item is not available
Search Stores
Temporarily unavailable
Notice:
This Item cannot be shipped to CA, CO, ID, KS, LA, MD, NV, PA, UT.Neighbor’s Club Members earn points with purchases.

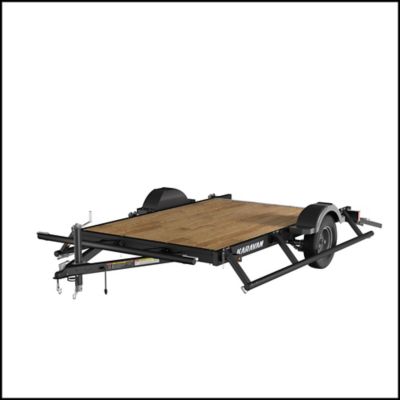

This popular 5.5' x 9' Steel Utility Trailer is suited for an extensive range of applications and is equipped with patented fold-down rails that allow for easy loading via forklift. Road performance is excellent via Karavan's SwayControl and QuietTow engineering. Reliability is built in with smart lighting and wheel bearing systems. We finish it with a powder coat finish as attractive as durable.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- INNOVATIVE AND PATENTED FOLD-DOWN RAILS Allows easy side loading, longer and wider loads; removable
- SWAYCONTROL ENGINEERING Welded tubular steel frame and A-frame tongue for better handling
- 17-STEP POWDER COAT FINISH Long-lasting protection vs. spray technique used on most trailers
- QUIETTOW COMPONENTRY Less noise via lockable tensioner latches, nylon bushing springs
- HEAVY DUTY REMOVABLE RAMP Expanded metal to support the loading of heavy equipment
- WOOD PLANK FLOOR Treated 2 x 6 in. deck boards protect against decay and termites
- COATED SELF-COILING SAFETY CABLES Cables coil out of the way when not in use
- HIGH RELIABILITY SHORTFREE LIGHTING SYSTEM Fully grounded and all plug (no Scotchloks); wiring is concealed
- SURE-LUBE WHEEL BEARING GREASE SYSTEM Allows quick and clean greasing for easy maintenance
- TONGUE JACK INCLUDED Foot plate sold separately
- INTEGRATED DOVETAIL Reduces ramp angle for easy loading
| Brand | Karavan |
|---|---|
| Country of Origin | Made in USA |
| Approximate Trailer Size (W x L) ft. | 5.5 x 9 |
| Axle Size | 3,750 lb. |
| Empty Weight | 825 lb |
| Floor Material | Wood |
| Frame Material | Steel |
| Gate Length | 49 in |
| Gate Width | 67 in. |
| Gross Vehicle Weight Rating | 2,990 lb. |
| Hitch Type | 1-Ball |
| Trailer Load Capacity lb. | 2000 - 3999 |
| Number of Axles | 1 |
| Number Of Ramps | 1 |
| Ramp Type | Back |
| Rear Door Style | Ramp |
| Tire Size | ST 18,580R 13D |
| Tongue Length | 49 in. |
| Tongue Type | A-FRAME |
| Trailer Bed Length | 9 ft |
| Trailer Bed Width | 5.5 ft |
| Trailer Features | Removable Ramp, Wood Floor, Powder Coated, Ramp Included |
| Trailer Max Load Capacity lb. (Carrying Capacity) | 2165 |
| Warranty | Karavan Trailers, Inc. warrants each new Karavan Trailers trailer to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase or two (2) years from date of manufacture. |
| Manufacturer Part Number | 475-00003-BT-FA |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What’s the weight the trailer can hold if material is placed in center of trailer over the axle?
7 months ago1 Answer
- A: Hi Neighbor- Trailer Load Capacity lb. 2000 - 39997 months agoHelpful?
Q: Are the trailer tires radial?
11 months ago1 Answer
- A: Hi Neighbor! The tires are not radial.11 months agoHelpful?
Q: What is the tire size?
a year ago1 Answer
- A: Hi Neighbor! The tire size for a Karavan 5.5 x 9 HD trailer, model 475-00003-BT-FA, is likely ST185/80R13 or ST85/80R13a year agoHelpful?
Q: can this trailer be registered for road use?
a year ago1 Answer
- A: Hi Neighbor! Yes, please contact your local TSC and government.a year agoHelpful?
Q: What’s is the difference between models 475-00004-BT-FA and 475-00003-BT-F?
a year ago1 Answer
- A: Hi Neighbor! That's a great question. One of the differences is the trailer features on SKU # 2054693. It includes the jack whereas SKU # 2054692 does not. You can use the compare feature on our website. Simply check the box that says "compare" on both products and it will show you all the differences.a year agoHelpful?
Q: What size is the hitch ball
a year ago1 Answer
- A: Hi Neighbor! According to the owners manual, the hitch ball size is 2". You can view he owners manual by clicking the "product documents" tab.a year agoHelpful?
Q: Will the ramp gate lay flat on the deck
a year ago1 Answer
- A: Hi Neighbor the gate does not lay flat on the decka year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What’s the weight the trailer can hold if material is placed in center of trailer over the axle?
7 months ago1 Answer
- A: Hi Neighbor- Trailer Load Capacity lb. 2000 - 39997 months agoHelpful?
Q: Are the trailer tires radial?
11 months ago1 Answer
- A: Hi Neighbor! The tires are not radial.11 months agoHelpful?
Q: What is the tire size?
a year ago1 Answer
- A: Hi Neighbor! The tire size for a Karavan 5.5 x 9 HD trailer, model 475-00003-BT-FA, is likely ST185/80R13 or ST85/80R13a year agoHelpful?
Q: can this trailer be registered for road use?
a year ago1 Answer
- A: Hi Neighbor! Yes, please contact your local TSC and government.a year agoHelpful?
Q: What’s is the difference between models 475-00004-BT-FA and 475-00003-BT-F?
a year ago1 Answer
- A: Hi Neighbor! That's a great question. One of the differences is the trailer features on SKU # 2054693. It includes the jack whereas SKU # 2054692 does not. You can use the compare feature on our website. Simply check the box that says "compare" on both products and it will show you all the differences.a year agoHelpful?
Q: What size is the hitch ball
a year ago1 Answer
- A: Hi Neighbor! According to the owners manual, the hitch ball size is 2". You can view he owners manual by clicking the "product documents" tab.a year agoHelpful?
Q: Will the ramp gate lay flat on the deck
a year ago1 Answer
- A: Hi Neighbor the gate does not lay flat on the decka year agoHelpful?
