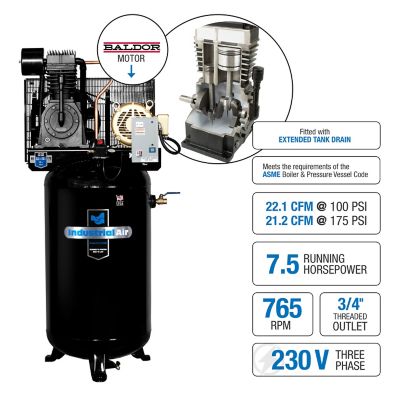

Industrial Air Contractor Industrial Air 7.5 HP Two Stage Air Compressor 230V 3 Phase, 80 gal., IV7538075
Item #
Fix, replace, reimburse After your manufacturer's warranty expires, plus valuable day 1 benefits.
Industrial Air 80 Gal. compressor provides great performance. The 7.5 HP electric motor features a pre-wired and mounted magnetic starter to help save time and money and the 2-stage compressor pump provides enough power to operate more than 1 air tool or device at a time. The pump features free floating stainless steel reed valves with stop guides for controlled lift, four rings per piston for improved volumetric efficiencies and oil control, automotive type one-piece counter-balanced crankshaft and oversized industrial-grade bearings for extended life with this cast iron splash lube pump. Precision bored cylinders with asymmetrical cooling fins and a cast iron flywheel with large extended fins provide improved cooling of the pump and low RPM.
- 22.1 CFM at 100 PSI and 21.2 CFM at 175 psi
- Powered by an industrial class 230 volt, three phase, 31 amp, 4 pole, 1725 RPM, UL certified, NEMA rated electric motor
- Equipped with pre-wired and mounted magnetic starter-saves time and money
- Industrial grade metal air intake filter/silencer with five sound attenuation baffles and automotive style replaceable filter element
- Large easy view oil level sight glass eliminates guesswork
- Extra capacity oil reservoir ensures lower oil temperatures for longer life
- High efficiency finned copper intercooler reduces inter-stage air temperatures for maximum performance and increased valve life
- Large capacity, 80 Gal. ASME certified tank with large 3/4 in air outlet port
- Extended tank drain valve, ball valve, and vibration isolators are included for ease of use
- Shipped with 100% full synthetic air compressor oil for optimum performance
