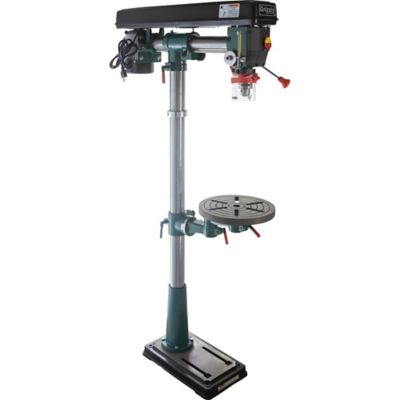

A truly versatile floor drill press thanks to the angled drilling capacity. The G7946 34" Floor Radial Drill Press boasts a 1/2 HP motor that smoothly powers the five spindle speeds ranging from 550 to 3000 RPM. The headstock can be tilted 45° left, 90° right, and slid forward or backward over the column allowing you full adjustability.

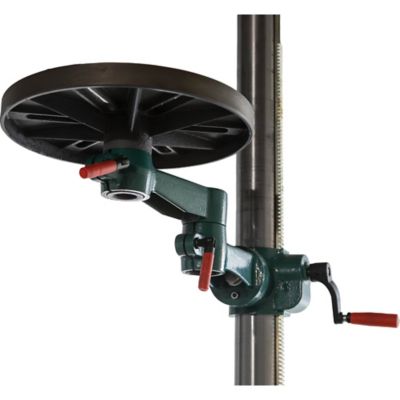

To make sure that you get the best use of the table, the drill press features rack-and-pinion elevation controlsadjustable 24-1/2" vertically, 90° tilt (left and right) and is capable of 360° rotation around the column.
The G7946 can easily drill holes through plastic, fiberglass, and composites and has a maximum capacity to drill through a half inch of steel without bogging down.
The JT33 keyed drill chuck is fitted to the JT33 spindle taper and offers up to 3-1/4" of travel. The chuck accepts drill bits from 1/16"-5/8". You can set the adjustable threaded depth stop for predetermined and repeatable drilling.
The G7946 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.
Made in an ISO 9001 Factory
ETL certified
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 1/2 HP, single-phase, 120V, 4.7A
- Swing: 34"
- Drill chuck: 1/16"-5/8", JT33
- Drilling capacity: 1/2" mild steel
- Spindle travel: 3-1/4"
- Spindle speeds: 5, 550-3000 RPM
- Column diameter: 2.79"
- Table size: 12-3/16" diameter
- Table T-slots: 6 @5/8"
- Table swing: 360°
- Table tilts: 90° L/R
- Head tilt: 90° L, 45° R
- Footprint: 11" W x 18" L
- Overall size: 14" W x 32" D x 64-1/2" H
- Approximate shipping weight: 147 lbs.
- Precision-ground cast-iron table
- Threaded depth stop
- Crank handle operated rack-and-pinion vertical table movement
- Table has lock levers
- Radial design allows angle drilling
- Cushioned grip quill handles
- 1-year limited warranty
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 4.7 A |
| Chuck Type | Keyed |
| Cord Length | 7 ft. |
| Drilling Capacity | 1/2 in |
| Drills Through | Multi-Purpose |
| Features | No Additional features |
| Horsepower | 0.5 hp |
| Maximum Chuck Size | 1/2 In. |
| Maximum Speed | 550 RPM |
| Minimum Speed | 550 RPM |
| Mounting Location | Freestanding |
| Number of Speeds | 5 |
| Portable or Stationary | Stationary |
| Product Height | 10 in. |
| Product Length | 20 in. |
| Product Weight | 138 lb. |
| Product Width | 55.5 in. |
| Spindle Travel Distance | 3.25 in. |
| Swing | 34 in. |
| Table Material | Cast iron |
| Variable Speed | Variable Speed |
| Voltage | 120 V |
| Warranty | 1 |
| Work Table Length | 12.375 in. |
| Work Table Width | 12.375 in. |
| Manufacturer Part Number | G7946 |
Q: Will this accept various mortising attachments
a month ago- A: Thank you for reaching out with your inquiry. This drill press cannot be used with mortising attachments. While an attachment may fit, the horizontal arm is prone to flexing under load, which can result in angled mortises and may even lead to failure of the upper arm bracket.a month agoHelpful?
Q&As
Q: Will this accept various mortising attachments
a month ago- A: Thank you for reaching out with your inquiry. This drill press cannot be used with mortising attachments. While an attachment may fit, the horizontal arm is prone to flexing under load, which can result in angled mortises and may even lead to failure of the upper arm bracket.a month agoHelpful?
