Palmgren 15 in. Drill Press

SKU # 123137799
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

The Palmgren 15 in. Drill Press is substantially constructed to provide a solid base for all your drilling operations, and offers a greater range of spindle speeds than any others in their class.

  • Weight and rigidity to maintain the built-in tight tolerances required for metalworking applications
  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0.0005 in.
  • Extended quill/spindle travel ideal for deep hole applications

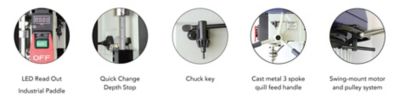

  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45° right and left and rotates 360° around the column
  • Front mounted industrial paddle type power switch

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand: Palmgren
Laser Guide: No
Maximum Drill Chuck Size: 16 mm
Maximum RPM: 3,476 RPM
Minimum RPM: 138 RPM
Motor Type: AC
Number of Speeds: 16
Overall Height: 68 in.
Product Height: 68 in.
Product Length: 28 in.
Product Type: Drill Presses
Product Weight: 205 lb.
Product Width: 15-1/2 in.
Spindle Travel: 5 in.
Swing: 15 in.
Stand Type: Floor
Voltage: 120/240 V
Warranty: 3 Years
Power Type: Electric
Manufacturer Part Number 9680158
