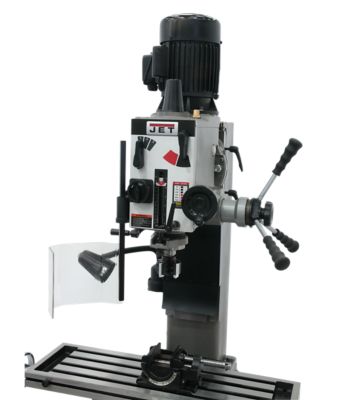

JET JMD-45GH Geared Head Square Column Mill/Drill
$8139.99
The heavy-duty Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA certified. Backed by a 2 year warranty.2 Year Warranty
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications

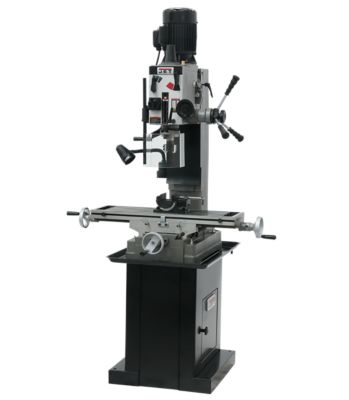

- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 20Fla |
| Chuck Type | Keyed |
| Cord Length | 6 ft. |
| Decibel Rating | 70dB |
| Drilling Capacity | 1.5 in. cast iron |
| Drills Through | Metal |
| Features | CSA/CUS Certified |
| Horsepower | 1.5HP |
| Maximum Chuck Size | JT 6 |
| Maximum Speed | 1,550 rpm |
| Minimum Speed | 65 rpm |
| Mounting Location | Other |
| Number of Speeds | 6 |
| Portable or Stationary | Stationary |
| Product Height | 50 in. |
| Product Length | 29 in. |
| Product Weight | 794 lb. |
| Product Width | 36 in. |
| Spindle Travel Distance | 5 in. |
| Swing | 500mm |
| Table Material | Cast iron |
| Variable Speed | Variable Speed |
| Voltage | 115V |
| Warranty | 2 year |
| Work Table Length | 32.25 in. |
| Work Table Width | 9.5 in. |
| Manufacturer Part Number | 351045 |
