Fimco FIMCO Pro Series 65 gal. UTV Sprayer 4.0 GPM 7 Nozzle Boom
Fimco FIMCO Pro Series 65 gal. UTV Sprayer 4.0 GPM 7 Nozzle Boom
3.26 Reviews
Item # 603151999
$1,229.99
Neighbor’s Club Members earn points with purchases.
Fimco FIMCO Pro Series 65 gal. UTV Sprayer 4.0 GPM 7 Nozzle Boom
3.26 Reviews
Item # 603151999

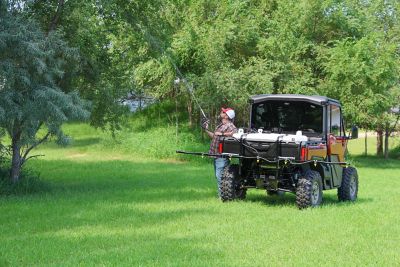

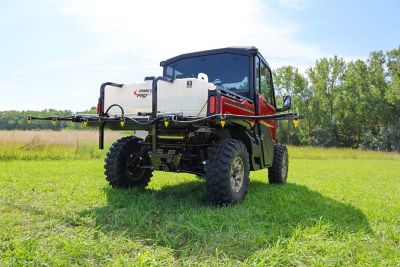

The FIMCO Pro Series 65 Gallon UTV Sprayer is a top-of-the-line spraying system designed for powerful and efficient application on UTVs. This sprayer is ideal for a wide range of tasks, from large-scale lawn and garden care to agricultural and commercial applications. Key features include a robust 65-gallon polymer tank, a 4.0 GPM FIMCO High-Flo High Performance pump, and a versatile 7-nozzle boom with a 140-inch spray swath. The system also comes with a high pressure spray wand for spot spraying, a 30-foot hose for extended reach, and a pressure gauge for easy monitoring. The rugged steel frame is designed for secure mounting on most UTVs, and the built-in sump and drain port ensure complete drainage and easy cleaning. Whether you're treating fields, pastures, or large properties, the FIMCO Pro Series 65 Gallon UTV Sprayer offers professional-grade performance, durability, and convenience to get the job done right.
- 4.0 GPM High Flo Pro Series Pump is a highly durable commercial grade pump designed for agricultural applications and liquid transfer
- Durable 65 Gallon roto molded tank features UV stabilizers, molded in baffles, transport handles and comes with 5 inch FIMCO measuring lid which eliminates the need for additional liquid measuring cups
- Folding 7 nozzle welded breakaway steel boom delivers 11.7 feet of total spray coverage, features Teejet tips and is spring loaded for easy deployment, use and storage
- Innovative top mounted boom design means you don't have to remove your tailgate to install our sprayer
- Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering

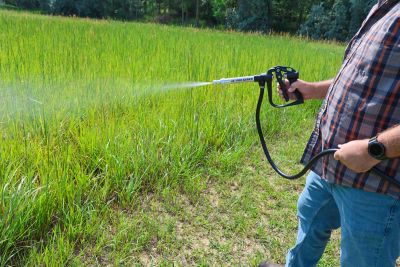

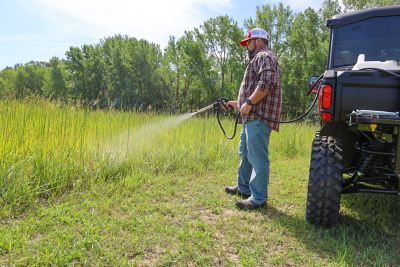

- Pro Series high pressure 13" spray wand features a locking handle, adjustable pressure nozzle and adjustable spray pattern and comes with 25 feet of 3/8" hose
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 11.7 ft |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Most Liquids, Weed Killer, Repellents, Fertilizer, Insecticide, Repellent, Fungicide |
| Features | 7 nozzle boom, 13" high pressure spray wand, multi lid, 25 foot hose |
| Hose Diameter | 0.375 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4 GPM |
| Maximum Operating Pressure | 45 PSI |
| Mounting Type | Straps |
| Power Type | 12 Volt |
| Product Height | 19 in. |
| Product Length | 48 in. |
| Product Weight | 90 lb. |
| Product Width | 37 in. |
| Pump Type | Diaphragm |
| Boom Width | 10 ft |
| Tank Capacity | 65 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303071 |
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Does this come with alligator clips for battery or cigarette lighter plug to connect to atv
27 days ago1 Answer
- AI-generatedA: Yes, this sprayer comes with alligator clips for a battery hookup. It does not currently include a cigarette lighter plug, though reviewers have noted that the wiring harness can be modified for alternative power connections.27 days agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
-
-
-
-
-
-
-
-
-
Reviews
1 to 3 of 6 Reviews .
1 – 3 of 6 Reviews
Most Recent
Anonymous
Maryland
Review 1
4 out of 5 stars.
Great product, Falls short on two items
a month ago
Product is of good quality and easy to assemble. Sprays nice and works well. Think there are two short comings that could be improved. 1) my old tank had a recirculation feature to help mix product in the tank, this doesn't have one, but I guess could modify. 2) The sprayer boom down arms seem a bit short. I use the sprayer in a Kubota UTV and the sprayer boom needs to be able to go several inches lower to the ground. Otherwise great product.
Yes, I recommend this product.
Review 1
5 out of 5 stars.
Good unit
2 months ago
So far so good, easy to put together by yourself. Worked out of the box correctly and i've run about 6 tanks through the unit in 48 hrs. It does periodically stop sparying when the tank is getting low, but not an issue.
SweepstakesYes
Yes, I recommend this product.
LEXINGTON, KY
Review 1
4 out of 5 stars.
It will do
7 months ago
Arrived quickly and looks like it will meet my goals. The built-in handles make light work of moving the container. I don't anticipate ever using the boom and horizontal sprayer, but it's a nice addition for those needing it. Fimco needs to give more oversight in their quality control. 1) I had to adjust the holster for the pistol grip sprayer to get the holes to line up to bolt it to the tank. 2) The pump has a constant water leak in bottom of the same fitting where the air pressure gauge attaches. I disassembled (unscrewed) the piece expecting a bad or misaligned gasket. There was no gasket, which means there is no air/water tight fitting - it's going to leak. Surely there should have been a gasket in this fitting. Other than these couple of issues, It looks like a decent value for the money. (I would advise Fimco to modify the wiring harness. Instead of the default alligator clips for a battery hookup, consider an additional hookup which will work for a trailer light hookup on the vehicle. If the vehicle has a trailer light hookup, a simple connection for the power makes it a breeze. I made my own, so my power for the pump is now my trailer light hookup - without having to run a power cord throughout the length of the vehicle.)
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
7 months ago
Fimco Industries
Thank you for your purchase of the 65-gallon UTV sprayer from Tractor Supply. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you with the leaking, as there should be no leaks. As for the hook up to trailer light hookup, that isn't something we have. However, we do have coming out in 2026 a 3-in-1 lead wire assembly that will give a person the option of using the alligator clamps, eyelets to connect directly to the battery or a cigarette lighter adapter.
