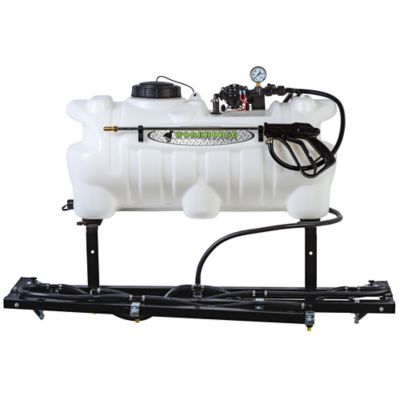

WorkHorse Sprayers 25 gal. ATV Sprayer 7-Nozzle Boom, ATV2507

SKU: 136231299
WorkHorse Sprayers 25 gal. ATV Sprayer 7-Nozzle Boom, ATV2507
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.2
4.2
 (23)
Write a review

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 0 days.
Change Delivery Location

Item Information

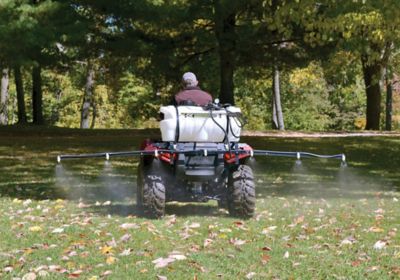

The Workhorse ATV2507 sprayer provides the quality and dependability needed season after season. This 7 nozzle boom sprayer is ideal for spraying: Gardens, Driveways, Ditches, Ponds, Pastures & Orchards.

  • 25 Gallon Polyethylene Tank
  • Fold-Out Boom with Flat Fan Spray Tips
  • 140 inch Boom Coverage

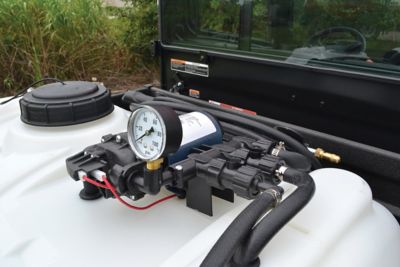

  • 12 Volt Demand Pump
  • 2.2 GPM 60 PSI Max
  • Pistol Grip Handgun with 15 Ft of Hose and Adjustable Brass Tip
  • Spring Loaded Boom Folds Easily
  • 8 Ft. Wiring Harness with Battery Clips

Specification Description
CountryofOrigin: Made in USA
Boom Width: 120 in.
Maximum Flow Rate: 2.2 GPM
Brand: WorkHorse Sprayers
Application/Use: Agricultural Sprayer with Boom
Product Weight: 51 lb.
Swath: 140 in.
Special Feature(s): Quick attach 7 nozzle folding boom
Hose Length: 15 ft.
Connection Type: N/A
Tank Capacity: 25 gal.
Maximum Horizontal Throw: 35 ft.
Part Number: ATV2507
Boom Material: Steel
Tank Material: Polyethylene
Maximum Vertical Throw: 25 ft.
Maximum Operating Pressure: 0 - 60 PSI
Number of Nozzles: 7
Product Width: 22 in.
Recommended Chemicals: Ag Chemicals
Hose Diameter: 3/8 in.
Product Height: 19 in.
Additional Item(s) Included: N/A
Voltage: 12 V
Product Length: 48 in.
Manufacturer Part Number ATV2507
WorkHorse Sprayers 25 gal. ATV Sprayer 7-Nozzle Boom, ATV2507 is rated 4.2 out of 5 by 23.

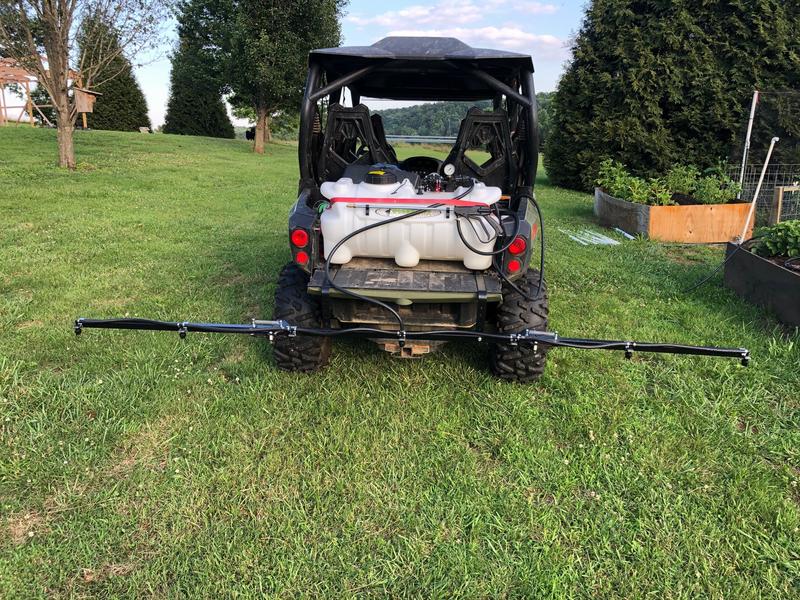

Rated 3 out of 5 by from Expect Problems Sit down, grab a cup of coffee. I'll tell you all about it. I purchased this to use on my side by side (Polaris RZR 570). It went together quick and with a little fab work got it mounted on the back with ease. I mixed up a tank and went out to test it out as one would. I was excited and very proud of it. I ran about 3/4 of a tank out with the boom. I might buy some different nozzles in the future. They're kind of misty and don't seem to deliver a lot of product unless you are driving very very slow. Worked great with glyphosate on my driveway but only mediocre with grazon in my sheep pasture. My world came to a screeching halt the first time I tried to use the wand. I switched the tank off, got out and closed the boom valve. I turned the pump back on, it quickly made pressure, then began to whine and buck and eventually blew apart at the connection to the manifold. Covered with glyphosate I was pretty mad. I had to go to tractor supply to buy another pump as I had plans for spraying a lot that day and didn't want the down time. The pump they sell in store has never skipped a beat. Identical specs on the pump aside from it being more amp draw. I just put a little bigger fuse in the holder. Greenways (the manufacturer) sent me out a new pump no questions asked. I swapped it out for the one I had bought and the same thing happened eventually, sprayed with the boom for a while and once I switched to the wand it blew apart in exactly the same fashion. Now with glyphosate on me for the 2nd time I decided to get to the bottom of it. The pumps that come on the sprayer have the pressure screw turned almost all the way in. The pump I purchased had the pressure setting turned nearly all the way out. That was the only difference I could find. So if you buy this, or any Workhorse tank sprayer back that allen screw OUT to avoid this. Overall I am happy with the form and practicality of the sprayer but very displeased with all of the trouble I have had and being exposed to what we're discovering is a very dangerous chemical.
Date published: 2019-08-23
Rated 5 out of 5 by from The best sprayer so far Everything was wonderful .. even the service at the store .. easy to set and easy to use .
Date published: 2019-08-10
Rated 5 out of 5 by from Great sprayer, great price. I researched these for months, settled on this one. Putting it together was a bit of a pain but after that it worked great. I used it to spray our 2 acre lot with no issues at all. I would recommend.
Date published: 2019-07-30
Rated 5 out of 5 by from Workhorse 7 nozzle sprayer Great sprayer and easy to assemble. Covers 2- 2 1/2 acres, just what I needed for my food plots. Ordered online and had shipped to local stores, notifications were sent every step of the way.
Date published: 2019-07-28
  • y_2019, m_11, d_17, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.2
  • cp_1, bvpage1
  • co_hasreviews, tv_8, tr_15
  • loc_en_US, sid_136231299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

What size spray tip does it come equipped with? 10 ga/per acre? 15, 20? 30?

Asked by: keith8005
We put a .02 GPM(gallon per minute) nozzles on the unit. The .02 GPM is at 40 PSI.
Answered by: Alicia M
Date published: 2019-09-03

is this sprayer difficult to connect to the battery under seat of Gator?

Asked by: Andi37
Typically, the connection from the unit to the battery is easily accessible.
Answered by: NRoberts
Date published: 2019-07-22

Can each boom be adjusted and or can one side be turned off and operate one side at a time

Asked by: Antek
The booms cannot be operated independently. The overall boom has vertical adjustments but each boom cannot be adjusted.
Answered by: MitchellW
Date published: 2019-06-04

Can the spray nozzles be changed out for different patterns?

Asked by: Jaredb
Yes the spray nozzle can be changed out for different sizes.
Answered by: Alicia M
Date published: 2019-07-01

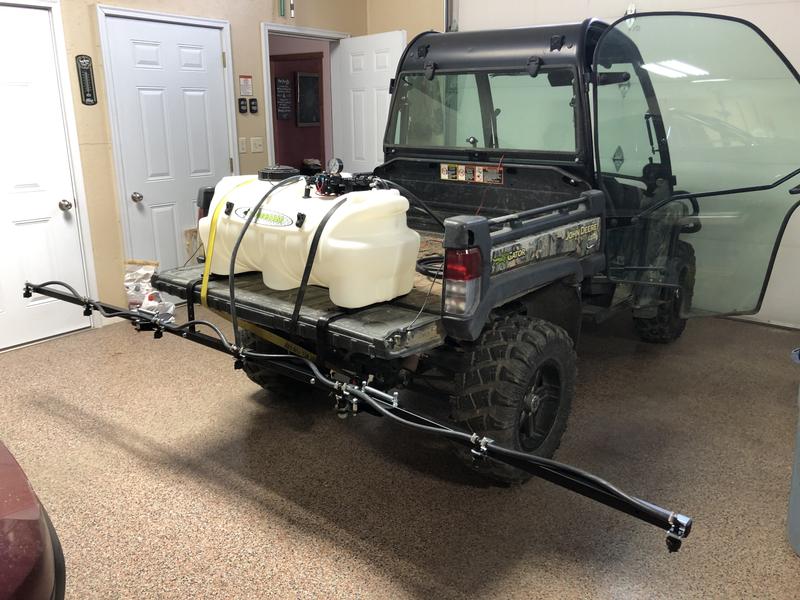

can I connect this sprayer to the back of my JD Gator ?

Asked by: Andi37
The sprayer is designed to fit onto the back of an ATV. The bed of the JD gator could be utilized with appropriate tie down straps.
Answered by: NRoberts
Date published: 2019-07-22

Can I use this on my golf cart?

Asked by: SMB1207
This unit could be place on a golf cart bed if the load capacities would not exceed the golf cart maximum load recommendations. Proper strapping of the unit would be highly recommend.
Answered by: NRoberts
Date published: 2019-06-12

Can it be hooked up to your ATV battery that is under the seat? If so, how???

Asked by: Schmidtys
This will work with any 12 volt power source. Please see the manufacturer's instructions below, and also see page 3 of the product manual (link below): Join the red wire of the two wire cable to a +12v source such as a switch, ammeter, or positive battery post. The black wire should be grounded or connected to the negative battery post https://www.tractorsupply.com/static/sites/TSC/downloads/ProdContentPDFs/1362312_Man1.pdf
Answered by: MatthewL
Date published: 2019-07-10

Does the boom fold?

Asked by: Codymoore5
Yes
Answered by: NRoberts
Date published: 2019-05-31
