Fimco 45 gal. UTV Sprayer, 2.4 GPM Pump, Lever Spray Wand, Hitch Mount 3N Folding Boom
Item # 252874699
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 252874699
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

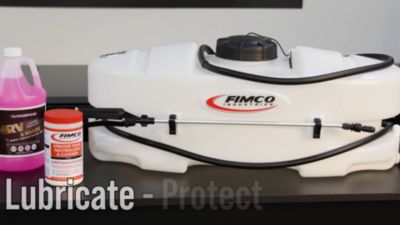

The FIMCO 45 Gallon Value UTV Sprayer 2.4 GPM Pump and 3 Nozzle Boom is designed to fit in the bed of a UTV and offers the versatility to spray tight spaces or larger areas. The UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. This model UTV sprayer features the High Flo High Performance 2.4 GPM 12 Volt Pump. The Lever Grip Spray Wand features an adjustable spray pattern poly tip which adjusts from a stream to cone and distributes up to 30 feet of horizontal spray, 16 feet of vertical spray and comes with 15 feet of 3/8 inch hose. The 3 Nozzle Folding Steel Boom mounts to a standard 2" receiver and offers 7.5 feet of total spray coverage with premium air induction AIXR tips that produce a flat spray pattern at a 110 degree angle to offer precise drift resistant application. FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This UTV sprayer is ideal for small pastures and rural applications.The 45 gallon lawn and garden sprayer allows accurate and easy application of lawn care products with the versatility and efficiency needed to spray tight areas, around buildings, fence lines, trees, bushes or other obstacles as well as open fields, pastures and ditches.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 15 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
- 2.4 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
- 3 nozzle boom with TeeJet AIXR air induction tips covers 100 inch swath

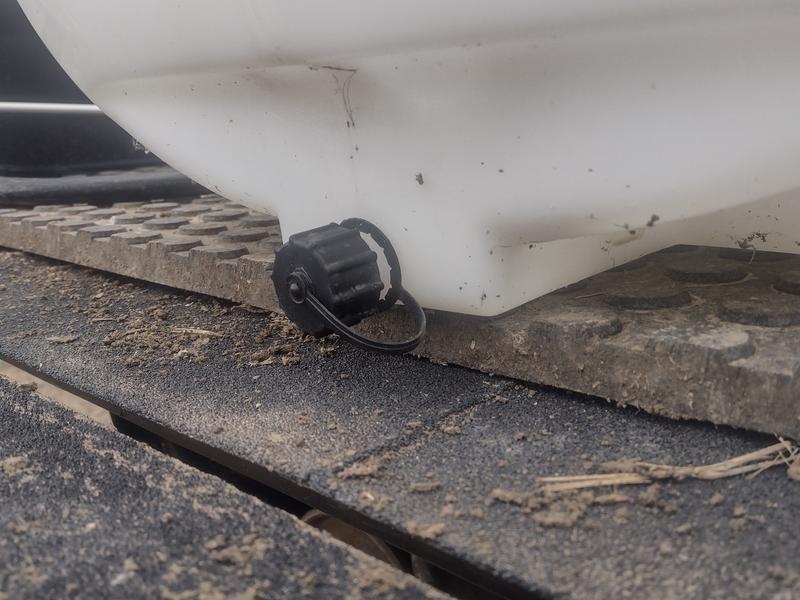

- Durable 45 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Lever grip spray wand features an aluminum lance and an adjustable polymer nozzle that delivers 30 feet of horizontal spray and 16 feet of vertical spray
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 8 ft |
| Boom Nozzle Count | 3 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Weed Killer, Repellents, Fertilizer, Insecticide, Repellent, Fungicide |
| Features | Spray Wand Included |
| Hose Diameter | 0.375 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Freestanding |
| Power Type | 12 Volt |
| Product Height | 22 in. |
| Product Length | 38 in. |
| Product Weight | 45 lb. |
| Product Width | 23.75 in. |
| Pump Type | Diaphragm |
| Boom Width | 5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303650 |
Q: Does the wiring harness come with the sprayer to hook up to the Utv??
3 months ago- A: Hello, thank you for your question. Yes, it comes with an 8 ft 12 V lead wire with on/off switch and alligator clips that you can connect directly to your battery.3 months agoHelpful?
Q: Dose the receiver hitch and bar that attaches to the boom come with this product? I don't see it the picture
Anonymous6 months ago- A: Yes, the receiver hitch does come with this sprayer. Due to the angle of the picture, it is hard to see, but it's there.6 months agoHelpful?
Q: Does this have a recirculating feature, which keeps the mixture consistent as you slowly work around?
10 months ago- A: yes, you would use the bypass to recirculate back into the tank.9 months agoHelpful?
Q: Say that I just want to spot spray. Is it possible to unhook the hitch boom with hose when not in use? If not, is there a quick connector which could be fitted?
10 months ago- A: Yes, you can remove the hitch boom and disconnect from the manifold to spot spray, after you also turn the valve off on the manifold for the boom.10 months agoHelpful?
Q&As
Q: Does the wiring harness come with the sprayer to hook up to the Utv??
3 months ago- A: Hello, thank you for your question. Yes, it comes with an 8 ft 12 V lead wire with on/off switch and alligator clips that you can connect directly to your battery.3 months agoHelpful?
Q: Dose the receiver hitch and bar that attaches to the boom come with this product? I don't see it the picture
Anonymous6 months ago- A: Yes, the receiver hitch does come with this sprayer. Due to the angle of the picture, it is hard to see, but it's there.6 months agoHelpful?
Q: Does this have a recirculating feature, which keeps the mixture consistent as you slowly work around?
10 months ago- A: yes, you would use the bypass to recirculate back into the tank.9 months agoHelpful?
Q: Say that I just want to spot spray. Is it possible to unhook the hitch boom with hose when not in use? If not, is there a quick connector which could be fitted?
10 months ago- A: Yes, you can remove the hitch boom and disconnect from the manifold to spot spray, after you also turn the valve off on the manifold for the boom.10 months agoHelpful?
