Fimco 45 gal. 7 Nozzle UTV Sprayer
Fimco 45 gal. 7 Nozzle UTV Sprayer
Item # 135798499
$949.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$949.99
or
or
$80/mo.† suggested payments with 12 Months Financing or earn $47 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Get everything you need
Neighbor’s Club Members earn points with purchases.
Expect high performance spraying with the Fimco 45 gal. 7-Nozzle UTV Sprayer. The multi-use cup can measure and pour chemicals with the attached 32 oz. measuring cup, and the premium air inducted spray tips help decrease chemical drift for safe spraying. The 25 ft. of 3/8 in. chemical resistant hose delivers up to 50 ft. of spraying diameter, and the easy grip boom design ensures convenient spray boom install/removal.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

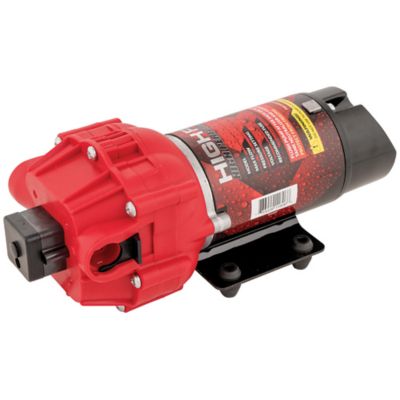

- 45 gal. nozzle UTV sprayer features 4.5 GPM, 60 PSI automatic demand diaphragm pump and 12V pumps for high performance spraying
- When combined with the high performance 4.5 GPM pump, output is enhanced and delivers spray pattern up to 40 ft. horizontal and 28 ft. vertical with an adjustable spray tip
- 25 ft. of 3/8 in. chemical resistant hose on the nozzle UTV sprayer provides up to 50 ft. of spraying diameter

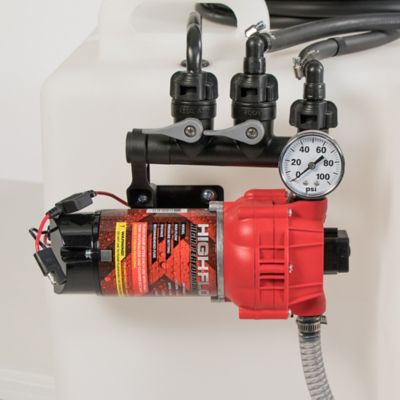

- Command center manifold is complete with quick connect fittings, built in ball valves and pressure gauge port allowing user to fine tune chemical applications
- Sprayer features premium air inducted spray tips to reduce chemical drift
- 7-nozzle spray pattern delivers 140 in. of total coverage
- Easy grip boom design on the UTV sprayer allows for quick install/removal of spray boom

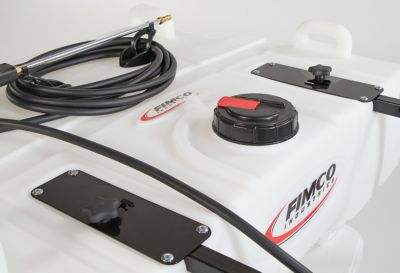

- Accurately measure and pour chemicals with the 32 oz. measuring cup that is attached to tank lid
- Garden hose port secures hose for safe and easy filling with one person
- Hose is secured by FIMCO exclusive handgun/hose brackets
- Boom can be used with UTV tailgate closed or open
- Made in USA
- 2 year pump, 1 year sprayer and 90 day commercial warranty
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 12 ft |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Weed Killer, Repellents, Repellent, Pesticide, Most Liquids, Herbicide, Grass Killer, Fertilizer, Fungicide, Insecticide |
| Features | 4.5 GPM High Flo High Performance pump. Deluxe pistol grip spray wand. Durable 45 gal. roto molded tank. Folding 7 nozzle welded breakaway steel boom. Over Tailgate boom design. |
| Hose Diameter | 38 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | None |
| Power Type | 12 Volt |
| Product Height | 18 in. |
| Product Length | 30 in. |
| Product Weight | 83 lb. |
| Product Width | 36 in. |
| Pump Type | Diaphragm |
| Boom Width | 10 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Precision) |
| Tank Material | Poly |
| Warranty | 2 Year Pump, 1 Year Sprayer, 90 Day Commercial |
| Manufacturer Part Number | 5302945 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: could this be used on a tailgate of a pickup truck?
a year ago1 Answer
- A: The weight of the sprayer when filled with water is approximately 470 lbs. That may be too much weight for a tailgate, you would need to check your vehicle's recommended load ratings.a year agoHelpful?
Q: Can this be mounted on an electric golf cart?
a year ago1 Answer
- A: I don't think a golf cart would be able to handle the weight, plus the fact the pump is a 12-volt pump. You would need to determine if the size of the sprayer would fit, which the dimensions can be found in the manual, and also need to check your golf cart load rating.a year agoHelpful?
Q: 1) Does this have a dedicated drain port? 2) Does this have an agitator to keep the solution mixed? 3) Where is the pump physically located - side or center? 4) What does "breakaway" boom mean? 5) Where can I find a user guide/operations manual?
a year ago1 Answer
- A: 1) This does have a dedicated drain port, right next to the strainer on the inlet line. 2) There is no dedicated agitator, however you can slightly agitate the solution when the bypass line is open, as well as when driving the the solution is sloshing around. 3) Pump is located on the side of the tank, towards the back. 4) When googled: In various applications, including agriculture and construction, a "breakaway" boom refers to a boom structure designed to detach or pivot away upon impact, preventing significant damage to the boom and the equipment to which it's attached. This boom will pivot away upon impact. 5) You can find a manual on our website, fimcoindustries.com, under the manuals and catalogs tab.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: could this be used on a tailgate of a pickup truck?
a year ago1 Answer
- A: The weight of the sprayer when filled with water is approximately 470 lbs. That may be too much weight for a tailgate, you would need to check your vehicle's recommended load ratings.a year agoHelpful?
Q: Can this be mounted on an electric golf cart?
a year ago1 Answer
- A: I don't think a golf cart would be able to handle the weight, plus the fact the pump is a 12-volt pump. You would need to determine if the size of the sprayer would fit, which the dimensions can be found in the manual, and also need to check your golf cart load rating.a year agoHelpful?
Q: 1) Does this have a dedicated drain port? 2) Does this have an agitator to keep the solution mixed? 3) Where is the pump physically located - side or center? 4) What does "breakaway" boom mean? 5) Where can I find a user guide/operations manual?
a year ago1 Answer
- A: 1) This does have a dedicated drain port, right next to the strainer on the inlet line. 2) There is no dedicated agitator, however you can slightly agitate the solution when the bypass line is open, as well as when driving the the solution is sloshing around. 3) Pump is located on the side of the tank, towards the back. 4) When googled: In various applications, including agriculture and construction, a "breakaway" boom refers to a boom structure designed to detach or pivot away upon impact, preventing significant damage to the boom and the equipment to which it's attached. This boom will pivot away upon impact. 5) You can find a manual on our website, fimcoindustries.com, under the manuals and catalogs tab.a year agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
Customers Also Bought
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
Reviews
- compatibility
- price
- satisfaction
1 to 2 of 3 Reviews .
1 – 2 of 3 Reviews
Most Recent
Mississippi
Review 1
5 out of 5 stars.
Great sprayer
2 months ago
Best price and love how it fits and works with my side by side
Response from Fimco Industries:
a month ago
Fimco Industries
Thanks for the awesome feedback! We love hearing that the 45-gallon setup is a perfect fit for your side-by-side. Happy spraying out there!
Anonymous
Texas
Review 1
4 out of 5 stars.
Works Good
6 months ago
Good machine, make sure follow directions for setup and check connections, I spent couple hours going over, filing with water, and testing. Worked just fine.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
6 months ago
Fimco Industries
Thank you for your purchase of the 45-gallon UTV sprayer from Tractor Supply. Glad that it's working well for you and your spraying needs.
