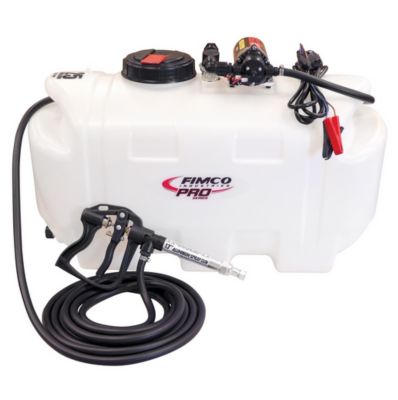

Fimco 25 gal. Pro Series Spot Sprayer
Fimco 25 gal. Pro Series Spot Sprayer
Item # 126385399
Stocked & Ready
$429.99
or
or
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
$429.99
or
or
$34/mo.† suggested payments with 12 Months Financing or earn $19 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The FIMCO 25 Pro Series Spot Sprayer is a powerful and versatile tool designed for professional-grade applications. With a 2.2 GPM flow rate and a maximum pressure of 100 PSI, this sprayer delivers exceptional performance for tackling tough jobs. Its durable, UV-resistant polymer tank is fully drainable and features a convenient multi-lid with a measuring cup for easy access and precise mixing. This spot sprayer also features the best-in-class High Flo 2.2 GPM Pro Series 12V Pump with inline fuse protection and clear bowl strainer for convenience. The included long-range Pro Series spray wand offers a comfortable grip and delivers a wide adjustable spray pattern for efficient coverage. This sprayer is ideal for a variety of tasks, including weed control, pest management, and other agricultural and industrial applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

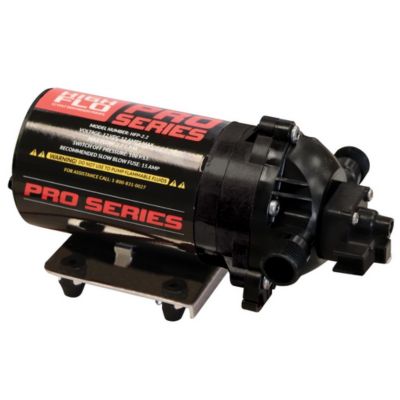

- 2.2 GPM Pro Series 12V pump with geolast diaphragm and seals for the harshest of chemicals
- 120 in. heavy-duty, fuse protected wire harness

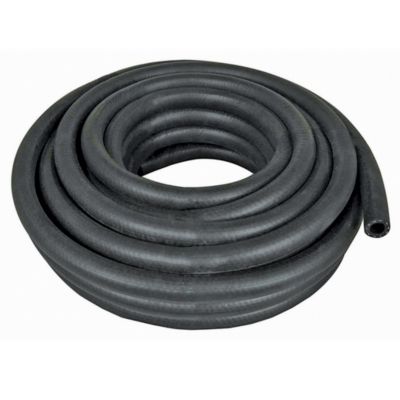

- Equipped with 25 ft. of 3/8 in. rubber hose for convenience
- Pro Series long range spray wand with adjustable spray pattern sprays 38 ft. horizontally and 27 ft. vertically
- Fimco multi-lid included with the spot sprayer for easy use
- Highly durable commercial-grade pump is designed for agricultural applications and liquid transfer
- Durable 25 gal. blow molded tank features UV stabilizers, molded drain port and a 5 in. Fimco measuring lid which eliminates the need for additional liquid measuring cups
- Pro Series sprayer has a high pressure 13 in. spray wand that features a locking handle and adjustable pressure nozzle
- Commercial grade products designed for heavy-duty use and industrial applications
- Backed by 1-year overall and 1-year pump consumer warranties; 90-day commercial warranties
- Spot sprayer delivers up to 100 PSI of pressure for powerful use
- Drain port: 3/4" MGHT
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 13 in |
| Boom Nozzle Count | 1 |
| Boom Style | No Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Weed Killer, Most Liquids, Fertilizer, Repellent, Insecticide, Fungicide |
| Features | UV Resistant |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Straps |
| Power Type | 12 Volt |
| Product Height | 20 in. |
| Product Length | 20 in. |
| Product Weight | 232 lb. |
| Product Width | 40 in. |
| Pump Type | Diaphragm |
| Boom Width | No Boom |
| Tank Capacity | 25 gal. |
| Spray Method | Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1-year overall and 1-year pump consumer warranties; 90-day commercial warranties |
| Manufacturer Part Number | 5302922 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 43 Questions
Newest questions
Q: Will this unit handle diesel mixed into weed killer?
2 months ago2 Answers
- A: We do not recommend using diesel fuel in this sprayer. The pump, internal seals, and tank components are designed for water-based agricultural chemicals. Petroleum-based products like diesel are highly corrosive to standard rubber gaskets, can degrade the pump's internal components (causing pressure loss or motor failure), and can structurally weaken the plastic tank over time. For your safety and to prevent permanently damaging the unit, please stick to water-soluble weed killers as outlined in the owner's manual.2 months agoHelpful?
Q: Under what conditions does this achieve max horizontal spray distance? I have had two of these and they don’t get close to 38-40 feet. Maybe if the hose is counted. Both pro and regular series are about same spray distance.
2 months ago2 Answers
- A: Great question. To clarify how that metric is calculated: the maximum horizontal distance is achieved specifically with the handgun nozzle adjusted to a tight, straight stream in zero-wind conditions. It is measured entirely from the tip of the handgun to where the water lands—hose length is not included. Because you've noticed a shorter throw across two different units, the issue is likely tied to one of a few critical variables that dictate distance in the field: Voltage Delivery: This is the most common culprit. A 12V pump needs a full, consistent 12.5V to 14V to run at peak PSI. If the battery is weak, or if the vehicle's engine isn't running while spraying, the pump's output drops, directly shortening the stream's throw. Nozzle Tuning: Even a tiny fraction of a turn away from a perfect straight stream will cause the water to atomize into a mist, causing the stream to lose its forward momentum. Elevation & Angle: The maximum distance is typically achieved by holding the handgun at roughly a 30 to 45-degree angle relative to the ground, rather than spraying perfectly flat or parallel. System Restrictions: A slightly clogged intake screen inside the tank or a kinked suction hose can restrict flow just enough to reduce the pump's maximum throwing power.2 months agoHelpful?
Q: What is the amp pull on the pump? Does it have a fuse? If it has a fuse, what size is it?
3 months ago2 Answers
- A: The pump has an 11-amp draw. The lead wire that comes with the sprayer has a 15-amp fuse.3 months agoHelpful?
Q: What is empty weight?
5 months ago1 Answer
- A: Hello, according to the product page under the "Specifications" tab, the weight of the Fimco 25 gal. Pro Series Spot Sprayer is stated to be 232 lb.5 months agoHelpful?
Q: Just purchased at Tractor Supply. Should the intake hose have a screen?
10 months ago1 Answer
- A: Gary, there should be a clear bowl strainer assembly attached to the pump that the intake hose connects to.10 months agoHelpful?
Q: Can i get 100 feet of hose and install on it and it still work fine ?
11 months ago1 Answer
- A: It's not recommended to attach more than a 50' hose to the sprayer. Anything longer may cause the pump to pulsate and you would also notice a reduction in pressure.11 months agoHelpful?
Q: Will this ship to my house?
a year ago1 Answer
- A: I believe that you are offered to either have it shipped to store or direct to you through their website.a year agoHelpful?
Q: Can I add a spray boom to the sprayer?
a year ago1 Answer
- A: Yes, you can add a boom to this sprayer. The pump on this sprayer will handle up to a 7-nozzle standard boom. The pump is too small for a broadcast boom. You can contact our customer service team at 800-831-0027 if you have any other questions regarding this sprayer.a year agoHelpful?
Q: Can you attach a boom sprayer?
a year ago1 Answer
- A: Larry, yes you can add a boom to this sprayer. It will handle up to a 7-nozzle boom.a year agoHelpful?
Q: Is it assembled? If not will Tractor Supply assemble it for me? Thank you
2 years ago1 Answer
- A: The 25-gallon Pro series spot sprayer is mostly assembled. You would have to ask Tractor Supply if they can assemble, if you're unable to, we have no idea whether they will or not. Otherwise the only thing that would need to be done, is attaching the handgun bracket, inserting the grommet into that bracket and making sure that the hose clamps are tight before using for the first time. Other than that, just hooking up to your battery and you're off and spraying.2 years agoHelpful?
1 - 10 of 43 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 43 Questions
Newest questions
Q: Will this unit handle diesel mixed into weed killer?
2 months ago2 Answers
- A: We do not recommend using diesel fuel in this sprayer. The pump, internal seals, and tank components are designed for water-based agricultural chemicals. Petroleum-based products like diesel are highly corrosive to standard rubber gaskets, can degrade the pump's internal components (causing pressure loss or motor failure), and can structurally weaken the plastic tank over time. For your safety and to prevent permanently damaging the unit, please stick to water-soluble weed killers as outlined in the owner's manual.2 months agoHelpful?
Q: Under what conditions does this achieve max horizontal spray distance? I have had two of these and they don’t get close to 38-40 feet. Maybe if the hose is counted. Both pro and regular series are about same spray distance.
2 months ago2 Answers
- A: Great question. To clarify how that metric is calculated: the maximum horizontal distance is achieved specifically with the handgun nozzle adjusted to a tight, straight stream in zero-wind conditions. It is measured entirely from the tip of the handgun to where the water lands—hose length is not included. Because you've noticed a shorter throw across two different units, the issue is likely tied to one of a few critical variables that dictate distance in the field: Voltage Delivery: This is the most common culprit. A 12V pump needs a full, consistent 12.5V to 14V to run at peak PSI. If the battery is weak, or if the vehicle's engine isn't running while spraying, the pump's output drops, directly shortening the stream's throw. Nozzle Tuning: Even a tiny fraction of a turn away from a perfect straight stream will cause the water to atomize into a mist, causing the stream to lose its forward momentum. Elevation & Angle: The maximum distance is typically achieved by holding the handgun at roughly a 30 to 45-degree angle relative to the ground, rather than spraying perfectly flat or parallel. System Restrictions: A slightly clogged intake screen inside the tank or a kinked suction hose can restrict flow just enough to reduce the pump's maximum throwing power.2 months agoHelpful?
Q: What is the amp pull on the pump? Does it have a fuse? If it has a fuse, what size is it?
3 months ago2 Answers
- A: The pump has an 11-amp draw. The lead wire that comes with the sprayer has a 15-amp fuse.3 months agoHelpful?
Q: What is empty weight?
5 months ago1 Answer
- A: Hello, according to the product page under the "Specifications" tab, the weight of the Fimco 25 gal. Pro Series Spot Sprayer is stated to be 232 lb.5 months agoHelpful?
Q: Just purchased at Tractor Supply. Should the intake hose have a screen?
10 months ago1 Answer
- A: Gary, there should be a clear bowl strainer assembly attached to the pump that the intake hose connects to.10 months agoHelpful?
Q: Can i get 100 feet of hose and install on it and it still work fine ?
11 months ago1 Answer
- A: It's not recommended to attach more than a 50' hose to the sprayer. Anything longer may cause the pump to pulsate and you would also notice a reduction in pressure.11 months agoHelpful?
Q: Will this ship to my house?
a year ago1 Answer
- A: I believe that you are offered to either have it shipped to store or direct to you through their website.a year agoHelpful?
Q: Can I add a spray boom to the sprayer?
a year ago1 Answer
- A: Yes, you can add a boom to this sprayer. The pump on this sprayer will handle up to a 7-nozzle standard boom. The pump is too small for a broadcast boom. You can contact our customer service team at 800-831-0027 if you have any other questions regarding this sprayer.a year agoHelpful?
Q: Can you attach a boom sprayer?
a year ago1 Answer
- A: Larry, yes you can add a boom to this sprayer. It will handle up to a 7-nozzle boom.a year agoHelpful?
Q: Is it assembled? If not will Tractor Supply assemble it for me? Thank you
2 years ago1 Answer
- A: The 25-gallon Pro series spot sprayer is mostly assembled. You would have to ask Tractor Supply if they can assemble, if you're unable to, we have no idea whether they will or not. Otherwise the only thing that would need to be done, is attaching the handgun bracket, inserting the grommet into that bracket and making sure that the hose clamps are tight before using for the first time. Other than that, just hooking up to your battery and you're off and spraying.2 years agoHelpful?
1 - 10 of 43 Questions
Similar Items
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
Reviews
Summary of Reviews
The sprayer offers a powerful and adjustable spray with a large tank capacity and long hose. Users found it effective for various applications and durable, though some minor issues with hose clamps and tank emptying were noted. Overall, the sprayer is considered a high-quality and reliable product t...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Just as advertized
7 years ago
this sprayer is exactly what i was looking for, worked perfectly outa the box, use in the back of my utv, have a 15 gal. spot sprayer for smaller tasks but obviously the 25 gal allows for larger applications, the spray gun is so much nicer to use as well, couldn't be happier with my purchase
5 people found this helpful
Show Reviews:
Most Helpful Critical Review
2 out of 5 stars.
The spray wand has overspray issues.
7 years ago
Everything operated and the quality was apparent; unfortunately that beautiful well built spray wand has a design flaw as far as I'm concerned, and especially if you are going for the long distance narrow stream. As you fully compress the handle, the spray starts out very broad and then narrows down to the concentrated stream; unfortunately this initial broad spay will apply (and waste) your product on unintended vegetation. To make things even harder to manage, is the fact that the spray pressure is not adjustable and it is full on (or off) and hence a lot of product is being dispersed and wasted faster than you can react. I returned this unit and got a flow / pressure regulated CountyLine (40 gal) with the standard wand with an adjustable brass tip. This unit gives you complete and finite control of product dispersement.
9 people found this helpful
Show Reviews:
- spraying
- purchase
- satisfaction
- quality
- price
- large
- ease of use
- cleaning
1 to 4 of 345 Reviews .
1 – 4 of 345 Reviews
Most Recent
Anonymous
Kentucky
Review 1
4 out of 5 stars.
Good portable sprayer: mounted on an ATV.
19 days ago
Good product for reaching those pesky weeds. One part of the sprayer nozzle (a plastic piece) broke quickly but a replacement metal part was purchased and it works fine. Maybe not use the plastic part to being with? All in all, a good product for what I was needing it for and I will continue to use.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
19 days ago
Fimco Industries
Thank you for choosing the Fimco 25-Gallon Pro Series Spot Sprayer and for taking the time to share your experience. We are glad to hear that it is helping you effectively manage weed control on your property. We sincerely apologize that you experienced an issue with the plastic nozzle component. We take your feedback regarding the durability of that part seriously, as we are always looking for ways to improve our designs and the quality of the components we include. Your suggestion to evaluate the material choice for that piece is very helpful and has been shared with our product development team for future consideration. It is great to hear that you were able to get back up and running with a replacement part, and we appreciate you continuing to rely on our equipment. If you ever have questions or need further assistance with your sprayer, please feel free to reach out to our customer service team directly. Happy spraying!
Review 1
4 out of 5 stars.
Unit has great pressure
a month ago
Thought I would add a video to the review.
Yes, I recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for the 5-star review! We are thrilled to hear that the 25-gallon Pro Series sprayer is delivering the great pressure you need for the job. Thanks for choosing Fimco!
Review 1
4 out of 5 stars.
Small pressure washer?
2 months ago
Shoots far out there man. Way overkill for what I need but it was on sale and an extra off if bought online. Pretty simple no gauge of valves, just turn on and let pump build up pressure. Not great for pinpoint spray. But if you want to cover and area its great.
SweepstakesYes
Response from Fimco Industries:
2 months ago
Fimco Industries
Thanks for the awesome review! We love hearing that the Pro Series is giving you that kind of serious reach—it definitely packs a punch with that high-output pump!
You can actually adjust the spray pattern right behind the trigger by turning the dialwill let you shift from a wide-reaching straight stream down to a fine, controlled mist.
Thanks for choosing FIMCO and enjoy covering that ground!"
You can actually adjust the spray pattern right behind the trigger by turning the dialwill let you shift from a wide-reaching straight stream down to a fine, controlled mist.
Thanks for choosing FIMCO and enjoy covering that ground!"
Mesa AZ
Review 1
1 out of 5 stars.
Tractor supply won’t sell your products!
6 months ago
Do not purchase anything from tractor supply. I tried ordering this sprayer and the big lazy employee said that be couldnt sell me it because he couldn’t get it out from the back. That big employee literally cost fimco and tractor supply a sale. LazyFq
No, I do not recommend this product.
Response from Fimco Industries:
6 months ago
Fimco Industries
Sorry to hear that Tractor Supply didn't help you in the purchase of the LG-25-PRO. Have you tried their website? I found it on there and their sku item number was Item # 1263853. I believe you have the option to have it shipped to store or even directly to you. Hope that you're able to acquire our sprayer whether you use their website or another Tractor Supply. That is one of our biggest sales items that Tractor Supply sells.
