Fimco 65 gal. 7-Nozzle UTV Sprayer
Fimco 65 gal. 7-Nozzle UTV Sprayer
Item # 135798699
$1049.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$1049.99
or
or
$88/mo.† suggested payments with 12 Months Financing or earn $52 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

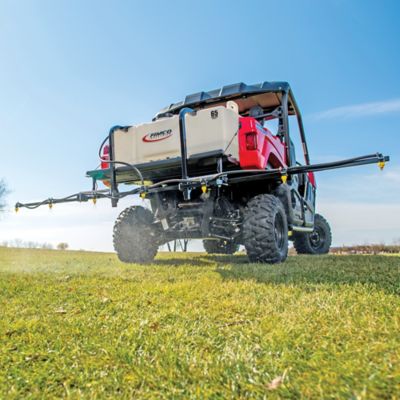

The Fimco 65 gal. 7-Nozzle UTV Sprayer is a lawn sprayer with a boom that is chemical resistant and provides up to 50 ft. of spraying diameter. The command center manifold comes complete with quick-connect fittings, built-in ball valves and a pressure gauge port that allows you to fine tune chemical applications. A 32-oz. measuring cup is attached to the lid for easy mixing. This towable UTV sprayer also features an easy-grip design that allows for simple spray boom installation and removal.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

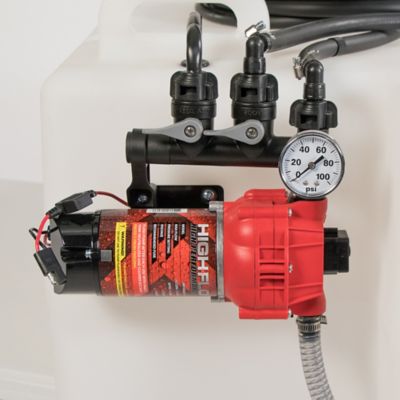

- 4.5 GPM/60 PSI automatic-demand diaphragm pump
- When combined with 4.5 GPM pump, output is enhanced and delivers spray patterns of up to 40 ft. horizontal and 28 ft. vertical
- Agriculture sprayer includes chemical-resistant hose that provides up to 50 ft. of spraying diameter

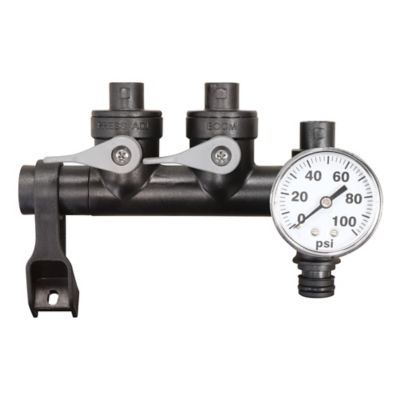

- Command center manifold has quick-connect fittings, built-in ball valves and a pressure gauge port that allows you to fine tune chemical applications
- UTV tow sprayer has our premium air-inducted spray tips that reduce chemical drift
- 7-nozzle spray pattern delivers 140 in. of total coverage
- Easy-grip boom design allows for quick installation/removal

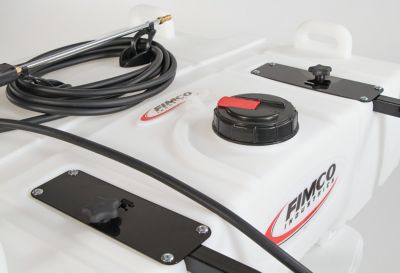

- 32-oz. measuring cup is attached to tank lid for easy mixing
- Holds up to 65 gal.
- High-performance 12V pumps
- Includes adjustable spray tip
- Hose measures 25 ft. x 3/8 in.
- Fimco exclusive handgun/hose brackets secure the hose
- Boom can be used with UTV tailgate closed or open
- Garden hose port secures hose for safe and easy 1-person filling
- Please note: Use protection on both our 8 ft. lead wire and pump for safety
- Made in the USA
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 140 in |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Features | None |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Straps |
| Power Type | Battery |
| Product Height | 19 in. |
| Product Length | 47 in. |
| Product Weight | 58 lb. |
| Product Width | 35 in. |
| Pump Type | Diaphragm |
| Boom Width | 10 ft |
| Tank Capacity | 65 gal. |
| Spray Method | Boom Spraying (Precision) |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302947 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 27 Questions
Newest questions
Q: I purchased a Fimco 65 gal. 7-Nozzle UTV Sprayer and need to know the volume per minute of each nozzle so i can figure my application per acre.
a month ago1 Answer
- A: Because the volume per minute (GPM) changes depending on the pressure (PSI) you are running your system at, there isn't a single set rate for the nozzles. To find the exact volume for your specific setup, please refer to the Calibration Chart located in the owner's manual. This chart breaks down the exact Gallons Per Minute (GPM) per nozzle, as well as the overall Gallons Per Acre (GPA) based on your operating pressure (typically ranging from 10 to 40 PSI) and the speed (MPH) you plan to drive your UTV. If you don't have the physical manual handy, you can easily download a digital copy directly from the product page on Tractor Supply's website or from FIMCO's official website. If you need any assistance calculating your specific application rate, our customer service team is always here to walk you through the calibration steps!a month agoHelpful?
Q: Does this come with the battery to power the pump? If not, are we to use the FIMCO 20 volt, or a standard 12 volt?
7 months ago1 Answer
- A: Battery does not come with the sprayer. You can use the lead wire that comes with the sprayer to connect to your UTV battery or you can use a 12V stand-alone battery to connect to. Any 12-volt battery will work for a stand-alone. They do recommend something like a marine battery, as it will hold a charge longer, but any 12-volt battery will suffice.7 months agoHelpful?
Q: I already have a boom for a old 25 gallon Fimco but I would just like to order the 65 gallon tank with all the connections and pump on it. Is that possible?
11 months ago2 Answers
- A: We do not have just the tank with the pump and connections. Only with the booms that come with them. You can part out everything needed, however, sometimes that costs ends up more than just purchasing a complete sprayer.11 months agoHelpful?
Q: Can I buy just the boom? I broke mine and need to replace it
a year ago1 Answer
- A: you can just purchase the boom. A complete boom which includes the nozzle harness is a 5301897. Just the metal boom itself is a 5277780. You can either have Tractor Supply special order it for you or you can contact our customer service team at 800-831-0027 and they'll be happy to assist you as well.a year agoHelpful?
Q: Will it fit in a honda pioneer 1000-5
a year ago1 Answer
- A: Brice, if you look in the manual, you'll find the dimensions for the sprayer and then determine if it would fit what you're asking.a year agoHelpful?
Q: Will it handle a higher hour liquid fertilizer application
2 years ago1 Answer
- A: This UTV sprayer will handle your fertilizer spraying, as long as there are no surfactants or petroleum distilates of any kind in the spray that you're using. Please read your chemical labels to determine it has either of these kind of additives or ingredients.2 years agoHelpful?
Q: How can you adjust the spraying pressure when using the spray wand? ^0psi is way to much when using the spray wand.
2 years ago2 Answers
- A: MyKy, you can adjust your pressure when spraying with either the boom or the spray gun, by opening the Press. Adj. on the manifold until the ideal pressure is reached that you wish to spray at.2 years agoHelpful?
Q: Does the 65 utv gallon ag sprayer have a drain plug at the bottom of the tank?
3 years ago1 Answer
- A: Hi, Here is what we received from the vendor- "It does not have a drain plug on the tank itself but it has a drain port on the hose that comes from the discharge port of the tank. The drain port is immediately after the filter."3 years agoHelpful?
Q: Will tank just sit in Can Am defender or does it need to be bolted or strapped in?
3 years ago1 Answer
- A: For top performance, the tank should be strapped down using the included straps.3 years agoHelpful?
Q: Can you use it for fertilizer
4 years ago1 Answer
- A: Yes, you can mix liquid fertilizers per that manufacturers instructions. However, you need to clean the tank and run the cleaner through all components after each use to preserve the life of the unit. Chemicals left sitting in the components will cause damage if not removed properly.4 years agoHelpful?
1 - 10 of 27 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 27 Questions
Newest questions
Q: I purchased a Fimco 65 gal. 7-Nozzle UTV Sprayer and need to know the volume per minute of each nozzle so i can figure my application per acre.
a month ago1 Answer
- A: Because the volume per minute (GPM) changes depending on the pressure (PSI) you are running your system at, there isn't a single set rate for the nozzles. To find the exact volume for your specific setup, please refer to the Calibration Chart located in the owner's manual. This chart breaks down the exact Gallons Per Minute (GPM) per nozzle, as well as the overall Gallons Per Acre (GPA) based on your operating pressure (typically ranging from 10 to 40 PSI) and the speed (MPH) you plan to drive your UTV. If you don't have the physical manual handy, you can easily download a digital copy directly from the product page on Tractor Supply's website or from FIMCO's official website. If you need any assistance calculating your specific application rate, our customer service team is always here to walk you through the calibration steps!a month agoHelpful?
Q: Does this come with the battery to power the pump? If not, are we to use the FIMCO 20 volt, or a standard 12 volt?
7 months ago1 Answer
- A: Battery does not come with the sprayer. You can use the lead wire that comes with the sprayer to connect to your UTV battery or you can use a 12V stand-alone battery to connect to. Any 12-volt battery will work for a stand-alone. They do recommend something like a marine battery, as it will hold a charge longer, but any 12-volt battery will suffice.7 months agoHelpful?
Q: I already have a boom for a old 25 gallon Fimco but I would just like to order the 65 gallon tank with all the connections and pump on it. Is that possible?
11 months ago2 Answers
- A: We do not have just the tank with the pump and connections. Only with the booms that come with them. You can part out everything needed, however, sometimes that costs ends up more than just purchasing a complete sprayer.11 months agoHelpful?
Q: Can I buy just the boom? I broke mine and need to replace it
a year ago1 Answer
- A: you can just purchase the boom. A complete boom which includes the nozzle harness is a 5301897. Just the metal boom itself is a 5277780. You can either have Tractor Supply special order it for you or you can contact our customer service team at 800-831-0027 and they'll be happy to assist you as well.a year agoHelpful?
Q: Will it fit in a honda pioneer 1000-5
a year ago1 Answer
- A: Brice, if you look in the manual, you'll find the dimensions for the sprayer and then determine if it would fit what you're asking.a year agoHelpful?
Q: Will it handle a higher hour liquid fertilizer application
2 years ago1 Answer
- A: This UTV sprayer will handle your fertilizer spraying, as long as there are no surfactants or petroleum distilates of any kind in the spray that you're using. Please read your chemical labels to determine it has either of these kind of additives or ingredients.2 years agoHelpful?
Q: How can you adjust the spraying pressure when using the spray wand? ^0psi is way to much when using the spray wand.
2 years ago2 Answers
- A: MyKy, you can adjust your pressure when spraying with either the boom or the spray gun, by opening the Press. Adj. on the manifold until the ideal pressure is reached that you wish to spray at.2 years agoHelpful?
Q: Does the 65 utv gallon ag sprayer have a drain plug at the bottom of the tank?
3 years ago1 Answer
- A: Hi, Here is what we received from the vendor- "It does not have a drain plug on the tank itself but it has a drain port on the hose that comes from the discharge port of the tank. The drain port is immediately after the filter."3 years agoHelpful?
Q: Will tank just sit in Can Am defender or does it need to be bolted or strapped in?
3 years ago1 Answer
- A: For top performance, the tank should be strapped down using the included straps.3 years agoHelpful?
Q: Can you use it for fertilizer
4 years ago1 Answer
- A: Yes, you can mix liquid fertilizers per that manufacturers instructions. However, you need to clean the tank and run the cleaner through all components after each use to preserve the life of the unit. Chemicals left sitting in the components will cause damage if not removed properly.4 years agoHelpful?
1 - 10 of 27 Questions
Similar Items
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Reviews
Summary of Reviews
The sprayer has a large 65-gallon capacity and provides good spray coverage. It is easy to set up and use. However, some customers have reported issues with the pump or nozzles not working correctly, ...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- spraying
- quality
- purchase
- capacity
- price
- value
- functional
- instructions
1 to 4 of 78 Reviews .
1 – 4 of 78 Reviews
Most Recent
Senatobia, MS
Review 1
5 out of 5 stars.
Top Notch
3 months ago
Great product, very well built! Perfect addition for someone with a big yard!
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
3 months ago
Fimco Industries
Thank you for your purchase of the 65-gallon UTV sprayer from Tractor Supply. Glad that you're happy with your new sprayer and that it's working great for your yard.
Review 1
5 out of 5 stars.
Absolutely worth the money
3 months ago
This sprayer exceeded my expectations. Assembly was simple, only took around 30 minutes to complete. I was looking for something that I could use on our yard around the house about 1 acre. To big for a backpack sprayer. I’ve got a 300 gallon 3 point sprayer for the tractor, but the tractor tires do to much damage to the lawn. This sprayer fits perfectly in my kubota RTV.. After calibrating and setting the pressure I put it to work. Took me about 30 minutes to completely spray the entire yard with pre emergent. The spray wand works great also. I did make a couple modifications to the hoses going to the boom. I installed a ball valve on the main line going to the booms and a valve on both side of the booms so I could shut off the right side boom and or the middle boom so I can spray the driveway and fence lines. I’m also going to install a bigger drain valve at the bottom of the tank to make clean up faster. The original drain is way too small and it takes forever to empty the tank I highly recommend this sprayer to anyone with a large yard or small pasture.
SweepstakesYes
Iowa
Review 1
4 out of 5 stars.
Fimco 65 gal. 7-Nozzle UTV Sprayer
9 months ago
I have used the sprayer for a few weeks now and overall, I like it. The first positive thing that I liked was the handles on top of the tank aided in lifting it into the UTV. The boom was of good quality and assembly was fairly straightforward. The hand wand works well. The only real knock came when I initially added water to test everything out - two of the nozzles were not putting out any spray. Finally realized that two of the anti-drip stainers were malfunctioning and not allowing any flow through. I put in some other screens that I had on hand, and the water then came out of all the nozzles. But of course, they two added ones allowed the continued dripping of water (and herbicide).
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
9 months ago
Fimco Industries

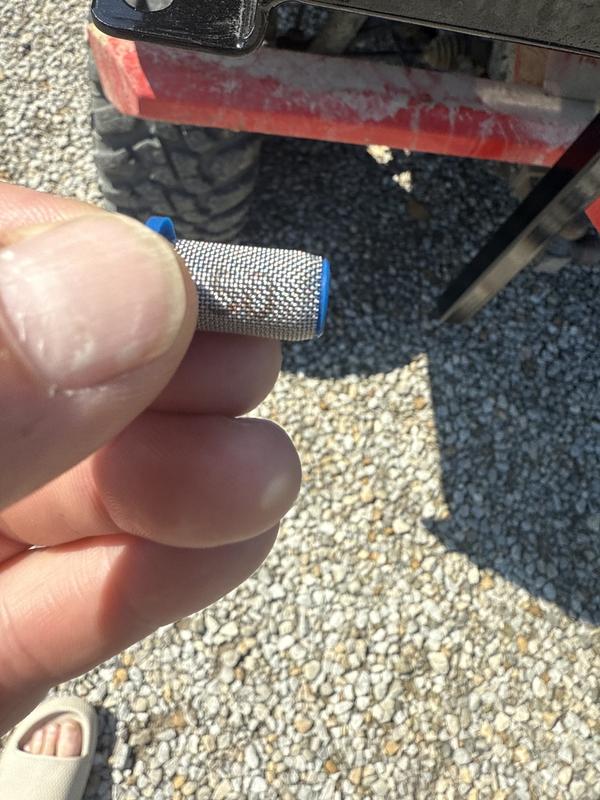

Wendell, thank you for your purchase of the 65-gallon UTV sprayer from Tractor Supply. Glad to hear that it's working well for you, other than the two screens. Please contact my customer service team at 800-831-0027 and request them to send you a pack of the strainers (part number 7771535), this will also give you a couple of extras if needed. My team will be happy to assist you.
Lexington, SC
Review 1
3 out of 5 stars.
Meh. Good capacity, weak stream.
10 months ago
It's alright. Either the pump is undersized for a 7 nozzle boom or the nozzles are not right. It doesn't throw much product out to the side. Basically, it only sprays under the nozzles. Also, when folding boom in/out caution is required to not get hoses bound up. Because of the folding, the tubing at the joint seems to be permanently kinked. Maybe that explains weak flow at the outermost nozzles. On first use, nothing came out so I removed the filters and that worked. Seeing these reviews, I'll have to check the ball check valves. I use this at my hunt club and having 65 gallons on board saves a lot of time coming out of the woods to refill, so that's nice.
Yes, I recommend this product.
Response from Fimco Industries:
10 months ago
Fimco Industries
Mike, thank you for your purchase of the 65-gallon UTV sprayer from Tractor Supply. If you haven't contacted our customer service team yet regarding the check valve strainers, please call us at 800-831-0027 and they'll be happy to assist you with replacements. As for the low flow, the pump is large enough to accommodate the 7-nozzles. Possibly the strainer has debris on it. It doesn't take much on the strainer to cause that sort of an issue. Our team can also help troubleshoot that issue for you as well.
