Fimco Pro Series 25 gal. ATV Sprayer - 4.0 gpm Pro Pump - Dlx Spray Wand - 7N Boom - Multi Lid
Limited Time Deal
Item # 252874999
Sale
Was$729.99
Save $100.00
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Item # 252874999
Sale
Was$729.99
Save $100.00
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

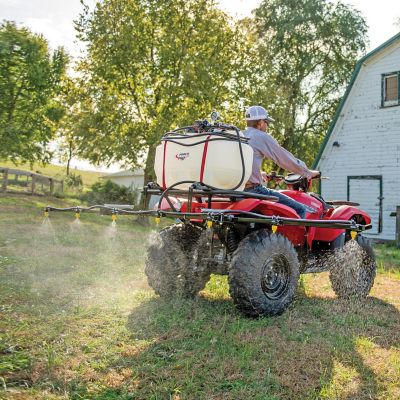

Maximize your spraying efficiency with the FIMCO 25 Gallon Pro Series ATV Sprayer. This robust sprayer is designed for easy mounting on your ATV, providing a convenient and effective solution for a variety of spraying tasks. The 25 gallon tank minimizes refills, allowing you to cover more ground. Get a consistent and powerful spray pattern with the high-flow 4.0 GPM pump. Make quick work of large areas with the 7-nozzle boom that is designed to provide wide and even coverage for efficient application. The ergonomically designed 13" High Pressure Spray Wand has an adjustable spray pattern that provides up to 38 feet of horizontal and 27 feet of vertical spray with 25 feet of 3/8 inch hose. Designed for a quick and secure attachment to most ATVs. This ATV sprayer is made with rugged materials to withstand the demands of outdoor use. Easily control your sprayer from the seat of your ATV, making this powerful sprayer suitable for a wide range of spraying tasks around your property.The Pro Series line of sprayers from FIMCO are commercial grade products designed for heavy duty use and industrial applications
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

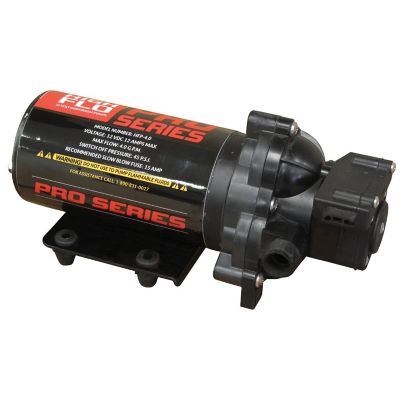

- 4.0 GPM High Flo Pro Series Pump is a highly durable commercial grade pump designed for agricultural applications and liquid transfer
- Durable 25 Gallon blow molded tank features UV stabilizers, molded drain port and a 5 inch FIMCO Multi Lid which eliminates the need for additional liquid measuring cups
- Folding 7 nozzle welded breakaway steel boom delivers 12 feet of total spray coverage, features Teejet tips and is spring loaded for easy deployment, use and storage

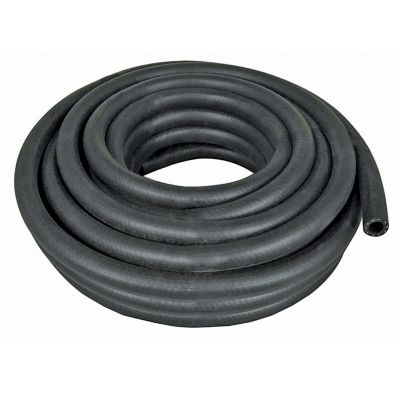

- Pro Series high pressure 22" spray wand features a locking handle, adjustable pressure nozzle, adjustable spray pattern and comes with 25 feet of hose
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 12 ft |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Weed Killer, Repellents, Repellent, Pesticide, Herbicide, Grass Killer, Fertilizer, Fungicide, Insecticide |
| Features | Spray Wand Included |
| Hose Diameter | 38 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4 GPM |
| Maximum Operating Pressure | 45 PSI |
| Mounting Type | Other |

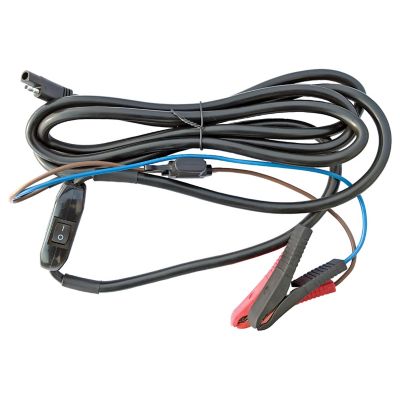

| Power Type | 12 Volt |
| Product Height | 21 in. |
| Product Length | 56 in. |
| Product Weight | 60 lb. |
| Product Width | 20 in. |
| Pump Type | Diaphragm |
| Boom Width | 10 ft |
| Tank Capacity | 25 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Precision) |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5302927 |
Q: how many gallons per acre does it spray at 3 mph?
29 days ago- A: At a speed of 3 MPH and an operating pressure of 30 PSI, this Fimco Pro Series sprayer will deliver approximately 16.8 gallons per acre (GPA). You can find a rate chart in the manual of the sprayer. To maintain this specific application rate, please keep the following in mind: Consistency is key: Your GPA is directly tied to your ground speed. If your speed changes, your application rate will change accordingly. Pressure check: Ensure your pressure gauge is set to 30 PSI while the sprayer is actively running to maintain that 16.8 GPA rate.27 days agoHelpful?
Q: Can this spray rig be adapted to fit into the bed of a UTV?
a year ago- A: There are people that have put this sprayer in the bed of their UTV, you will have to take into account the weight of the sprayer, which is approximately 275 lbs. when filled and also you will need to make sure you secure the sprayer, as well.a year agoHelpful?
Q&As
Q: how many gallons per acre does it spray at 3 mph?
29 days ago- A: At a speed of 3 MPH and an operating pressure of 30 PSI, this Fimco Pro Series sprayer will deliver approximately 16.8 gallons per acre (GPA). You can find a rate chart in the manual of the sprayer. To maintain this specific application rate, please keep the following in mind: Consistency is key: Your GPA is directly tied to your ground speed. If your speed changes, your application rate will change accordingly. Pressure check: Ensure your pressure gauge is set to 30 PSI while the sprayer is actively running to maintain that 16.8 GPA rate.27 days agoHelpful?
Q: Can this spray rig be adapted to fit into the bed of a UTV?
a year ago- A: There are people that have put this sprayer in the bed of their UTV, you will have to take into account the weight of the sprayer, which is approximately 275 lbs. when filled and also you will need to make sure you secure the sprayer, as well.a year agoHelpful?
