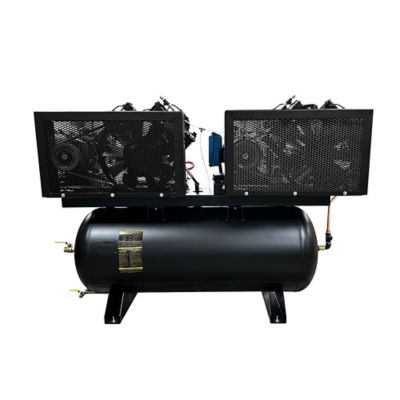

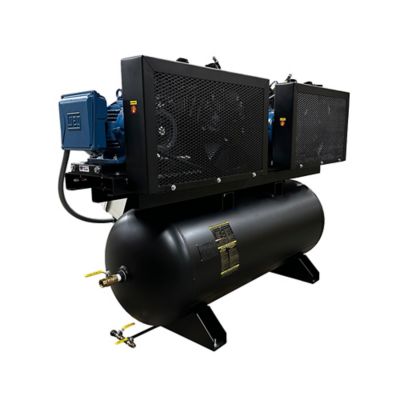

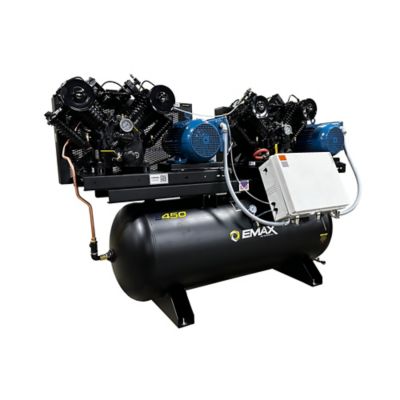

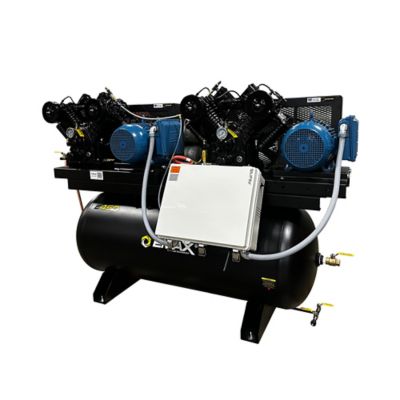

EMAX 10 HP 120 gal. 2-Stage Horizontal Stationary Air Compressor, NEMA 4 Rated DUPLEX, V4, 76CFM, 1PH
Item # 256403399
Neighbor’s Club Members earn points with purchases.
EMAX 10 HP 120 gal. 2-Stage Horizontal Stationary Air Compressor, NEMA 4 Rated DUPLEX, V4, 76CFM, 1PH
Item # 256403399
This item is available online only
Delivering to
20147
Neighbor’s Club Members earn points with purchases.
EMAX NEMA 4 rated Compliant Weather Resistant DUPLEX (2 electric Industrial motors, 2 Industrial Solid Cast Iron pumps). 10 HP, 240 VOLT, V4 pump with Easy spin on/off oil filter. Powerful 76 CFM @ 100PSI, 1- Phase 2-Stage 120 Gallon Horizontal Stationary ASME rated tank. Approved in all 50 states, up to 200 PSI. High quality Pressure Lubricated SOLID cast iron Pump, Isolator Pads, Belt Tensioner, Auto tank Drain, alternating switch. NEMA 4 Rated! Waterproof Enclosure for all weather application. Provides protection against windblown dust, rain, splashing water, & hose-directed water, as well as damage from external ice formation, making it suitable for both indoor and outdoor use. Up to 60,000 pump life hours with proper maintenance. Warranty includes 1 Year Standard, 5 Year Extended, Eligible Lifetime Extended with maintenance kit. MADE IN USA1 Year Standard, 5 Year Extended, Eligible Lifetime Extended with maintenance kit
- NEMA 4 rated!- Provides protection against windblown dust, rain, splashing water, & hose-directed water, as well as damage from external ice formation, making it suitable for both indoor and outdoor use.
- NEMA 4: https://www.nemaenclosures.com/enclosure-ratings/nema-rated-enclosures/nema-4-enclosures.html
- (Two) V4 Pressure lubricated SOLID cast iron pumps
- Tank size: 120 Gallon Horizontal
- 76 CFM @ 100 PSI
- Max PSI: 175
- Product dimensions: 96" x 42" x 64" (LxWxH)
- Product weight: 1750 lbs
- 1.2 Service Factor on NEMA 4 Industrial electric motor
- Alternating Switch
- MADE IN USA
- ASME Approved Solid steel air Tank in all 50 states. Rated up to 200 PSI
- Includes: Isolator Pads, Belt Tensioner, Auto Drain, alternating switch, ASME tank
- Up to 60,000 pump life hours with proper maintenance
- Solid Cast Iron Crankcase (not aluminum) with oil sight glass
- Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
- (Two) 10HP, 240V, 1Phase Industrial Electric Motors
- Industrial Pump low RPM: 800
- Motor low RPM: 1750
- Easy Spin on/off oil filter
- Air outlet size: 1" (Two)
- 110 Volt Auto tank drain
