Dial Manufacturing Inc. 1/2 HP 2-Speed Evaporative Cooler Motor, 115V
Dial Manufacturing Inc. 1/2 HP 2-Speed Evaporative Cooler Motor, 115V
Item # 108103999
$139.99
Neighbor’s Club Members earn points with purchases.
Dial Manufacturing Inc. 1/2 HP 2-Speed Evaporative Cooler Motor, 115V
Item # 108103999
$139.99
New Cardmembers earn a $50 Reward‡ with qualifying purchase of $50 or more plus earn 5% in Rewards+ on this purchase. Valid through 10/11/26.
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.

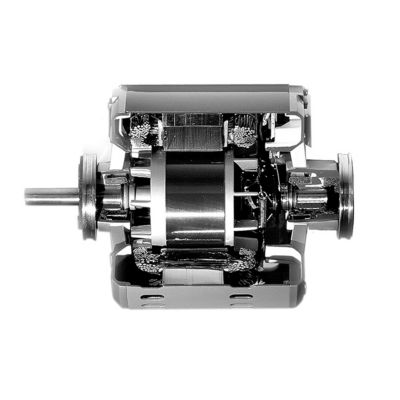

The Dial Manufacturing, Inc. 1/2 HP 2 Speed Evaporative Cooler Motor has UL-recognized components for safety. Automatic thermal overload protects against overheating. Can be automatically controlled with a cooler thermostat or with manual wall switch (both sold separately).
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Permanently Lubricated Ball Bearings
- Automatic Reset Thermal Overload
- UL-Recognized Components for Safety
- NEMA 56Z Frame
- 1 Year Limited Warranty
| Brand | Dial Manufacturing Inc. |
|---|---|
| Country of Origin | Imported |
| Compatibility | Evaporative Coolers |
| Features | Permanently Lubricated Ball Bearings |
| Horsepower | 1/2 HP |
| Indoor/Outdoor | Indoor |
| Number of Speeds | 2 |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 7 in. |
| Product Length | 11 in. |
| Product Weight | 17.65 lb. |
| Product Width | 7 in. |
| Ring Diameter | 2.5 in. |
| Shaft Diameter | 0.5 in. |
| Shaft Length | 1.675 in. |
| Voltage | 115V |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 2204 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Is that DC motor, and what size shalft?
a year ago1 Answer
- A: Hi Neighbor! This is a 1/2 HP 2 Speed Evaporative Cooler Motor. The shaft diameter is 0.5 in. and the shaft length is 1.675 in.a year agoHelpful?
Q: What are the RPM's
4 years ago1 Answer
- A: The Low Speed runs at 1140 rpms. The High Speed runs at 1720 rpms. All of this manufacturer's motors from 1/3 hp to 1 hp run at those same rpm’s.4 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Is that DC motor, and what size shalft?
a year ago1 Answer
- A: Hi Neighbor! This is a 1/2 HP 2 Speed Evaporative Cooler Motor. The shaft diameter is 0.5 in. and the shaft length is 1.675 in.a year agoHelpful?
Q: What are the RPM's
4 years ago1 Answer
- A: The Low Speed runs at 1140 rpms. The High Speed runs at 1720 rpms. All of this manufacturer's motors from 1/3 hp to 1 hp run at those same rpm’s.4 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Reviews
1 to 4 of 8 Reviews .
1 – 4 of 8 Reviews
Most Recent
Anonymous
Holbrook Arizona
Review 1
5 out of 5 stars.
Cooler parts
2 years ago
It’s sad that the holbrook store won’t be carrying anymore swamp cooler products. I used to buy lots of cooler parts from there and I was told yesterday that they were discontinuing them. I wish they would find a supplier as it is needed in our little country town. They told me they can’t get the dial products anymore but our local hardware store still carries them. Liked shopping at tractor supply better because the prices are more reasonable. Hopefully they can find another resource for parts. Thank you.
SweepstakesYes
Yes, I recommend this product.
clearlake
Review 1
1 out of 5 stars.
clearlake store is crap
4 years ago
the clearlake store is horrible the people are rude and dont offer help and i had to get a replacement for this item
No, I do not recommend this product.
Edgewood nm
Review 1
5 out of 5 stars.
It works great
5 years ago
It works great. Was easy to install. Small and efficient.
Yes, I recommend this product.
California
Review 1
5 out of 5 stars.
Staying Cool
5 years ago
Running it 24/7 and it’s doing very well and starying cool
Yes, I recommend this product.
