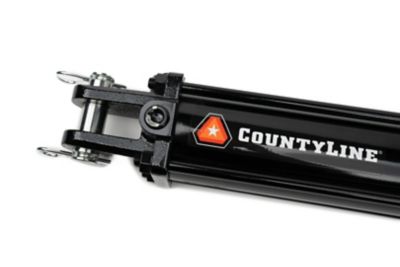

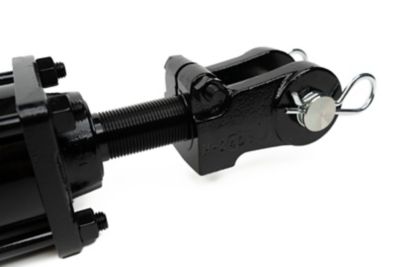

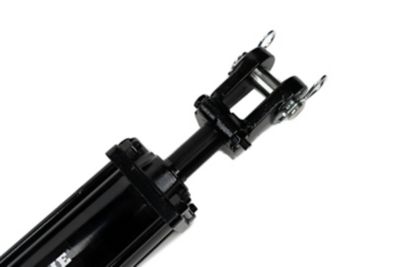

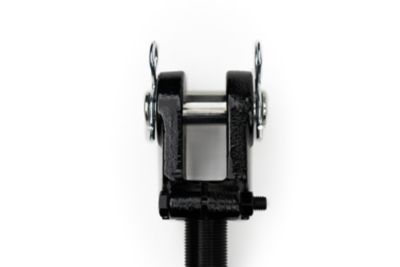

CountyLine 3.5 in. Bore x 16 ASAE Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
CountyLine 3.5 in. Bore x 16 ASAE Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563699
$299.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
CountyLine 3.5 in. Bore x 16 ASAE Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563699
$299.99
or
or
$50/mo.† suggested payments with 6 Months Financing or earn $14 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 3.5 in. Bore x 16 ASAE Stroke Tie Rod Hydraulic Cylinder is well suited to perform in demanding applications in any industry. This hydraulic cylinder provides value pricing without sacrificing quality. The tie rod hydraulic cylinder offers a maximum operating pressure of 2,500 PSI.
- Hydraulic cylinder provides a maximum operating pressure of 2,500 PSI
- Tie rod hydraulic cylinder can handle demanding applications
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Extended Length | 47.5 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 22,050 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1.25 in. |
| Port Size | 12 NPT |
| Primary Material | Metal |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 48 lb. |
| Product Width | 0 N/A |
| Retracted Length | 31.5 in. |
| Rod Diameter | 1.5 in. |
| Stroke Distance | 16 ASAE |
| Manufacturer Part Number | 318354 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Is this a double acting cylinder?
a year ago1 Answer
- A: Yes, that is a double acting cylinder.a year agoHelpful?
Q: can this cylinder be used for a log splitter i dont see any ports for hoses is the rod end threaded
3 years ago1 Answer
- A: Yes, there are ports in this cylinder, and if it is the right size for their application, then it could be used on a log splitter. The rod end is threaded.3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Is this a double acting cylinder?
a year ago1 Answer
- A: Yes, that is a double acting cylinder.a year agoHelpful?
Q: can this cylinder be used for a log splitter i dont see any ports for hoses is the rod end threaded
3 years ago1 Answer
- A: Yes, there are ports in this cylinder, and if it is the right size for their application, then it could be used on a log splitter. The rod end is threaded.3 years agoHelpful?
