Chief 3 in. Bore x 16 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter

4.36 Reviews

Item # 130794199

Image showing 3 in. Bore x 16 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter

$179^.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 3 in. Bore x 16 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter

4.36 Reviews

Item # 130794199

$179^.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

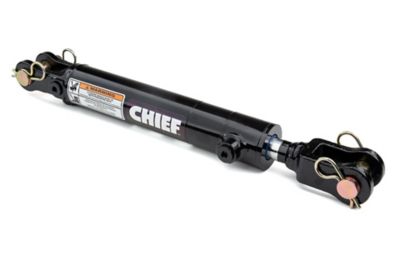

The Chief 3 in. Bore x 16 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before being sold, the hydraulic cylinder undergoes rigorous testing to ensure maximum reliability and performance.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Rugged ductile iron welded clevis design
Welded hydraulic cylinder with standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for smooth operation
Gloss black paint finish
Use as single acting hydraulic cylinder or as double acting hydraulic cylinder
Measures 26.25 in. retracted and 42.25 in. extended
Column load: 15,240 lb.
Pin diameter of 1 in. and rod diameter of 1.25 in.
1 year warranty
Maximum PSI: 3,000 PSI
