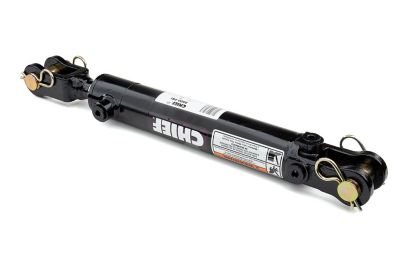

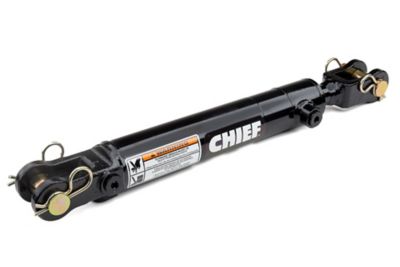

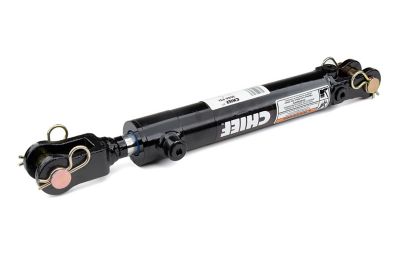

Chief 3 in. Bore x 8 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter

5.02 Reviews

Item #

$159.99

The Chief 3 in. Bore x 8 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before being sold, the hydraulic cylinder undergoes rigorous testing to ensure maximum reliability and performance.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Rugged ductile iron welded clevis design for durability
  • Welded hydraulic cylinder with standard SAE #8 ports
  • 3,000 PSI seal kits for extended life
  • Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
  • Optional SAE #8 third port location for 90 degree use
  • Hard chrome-plated rod for the most extreme applications
  • Precision-welded piston ensures smooth operation
  • Gloss black paint finish
  • Use as a single acting hydraulic cylinder or a double acting hydraulic cylinder
  • Measures 18.25 in. retracted and 26.25 in. extended
  • Column load: 21,200 lb.
  • Pin diameter of 1 in. and rod diameter of 1.25 in.
  • 1 year warranty
  • Maximum PSI: 3,000 PSI
