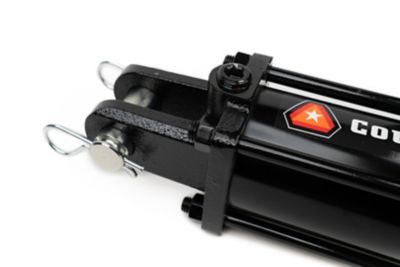

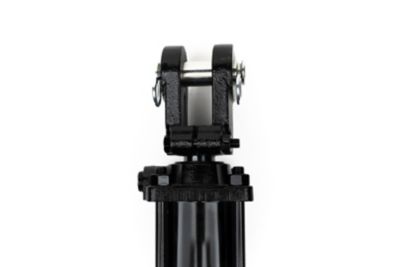

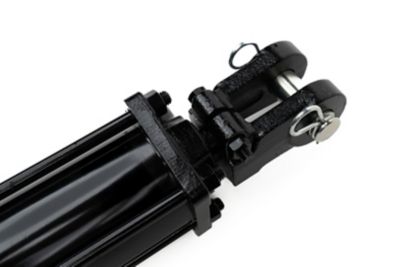

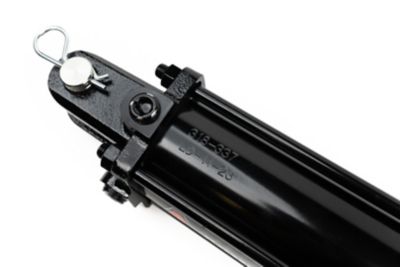

CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
$22199
Sale
Save(40%)
CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Limited Time Deal
Exclusive
CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563299
Stocked & Ready
$22199
Sale
Save(40%)
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Exclusive
CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563299
Stocked & Ready
$22199
Sale
Save(40%)
or
or
$37/mo.† suggested payments with 6 Months Financing or earn $11 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications, making it well suited to perform in demanding applications. This hydraulic cylinder provides value pricing without sacrificing quality. The tie rod hydraulic cylinder offers a 2,500 PSI operating range.
- 3 in. bore x 10 in. stroke
- Hydraulic cylinder has a 2,500 PSI operating range
- Used for agricultural applications
- Tie rod hydraulic cylinder exceeds industry standards
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Unknown |
| Extended Length | 30.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 17,670 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 12 NPT |
| Primary Material | Steel |
| Product Height | 10 in. |
| Product Length | 20.25 in. |
| Product Weight | 30 lb. |
| Product Width | 3 in. |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.25 in. |
| Stroke Distance | 10 in. |
| Manufacturer Part Number | 318336 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Is this a single action or a double action cylinder. If it is double does it make a difference as to which of the three ports I use
5 months ago1 Answer
- A: The cylinder in question is double acting but can be converted to single acting by installing a breather port.5 months agoHelpful?
Q: what is nthe warranty period on this cylinder
2 years ago1 Answer
- A: Contact your local TSC store to better assist you.2 years agoHelpful?
Q: I have installed this product on a tilt trailer but there is no resistance. The bed just drops down or up with no shock absorber resistance. Is there an adjstment screw that has to be turned?
Anonymous3 years ago1 Answer
- A: This cylinder is not meant to be used as a shock absorber.3 years agoHelpful?
Q: Is the clevis threaded for 1-1/4"-12
4 years ago1 Answer
- A: - Yes, it is4 years agoHelpful?
Q: Is the pin diameter 1"?
4 years ago1 Answer
- A: It is a 1" pin4 years agoHelpful?
Q: Is this single or double actiin
Anonymous4 years ago1 Answer
- A: The cylinder in question is double acting but can be converted to single acting by installing a breather port.4 years agoHelpful?
Q: Is this 1.25 rod?
5 years ago1 Answer
- A: This cylinder is equipped with a 1.25" rod5 years agoHelpful?
Q: What type of thread fittings does it have? NPT or Outing fittings?
5 years ago1 Answer
- A: P/N 318336 has 1/2 NPT fittings5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Is this a single action or a double action cylinder. If it is double does it make a difference as to which of the three ports I use
5 months ago1 Answer
- A: The cylinder in question is double acting but can be converted to single acting by installing a breather port.5 months agoHelpful?
Q: what is nthe warranty period on this cylinder
2 years ago1 Answer
- A: Contact your local TSC store to better assist you.2 years agoHelpful?
Q: I have installed this product on a tilt trailer but there is no resistance. The bed just drops down or up with no shock absorber resistance. Is there an adjstment screw that has to be turned?
Anonymous3 years ago1 Answer
- A: This cylinder is not meant to be used as a shock absorber.3 years agoHelpful?
Q: Is the clevis threaded for 1-1/4"-12
4 years ago1 Answer
- A: - Yes, it is4 years agoHelpful?
Q: Is the pin diameter 1"?
4 years ago1 Answer
- A: It is a 1" pin4 years agoHelpful?
Q: Is this single or double actiin
Anonymous4 years ago1 Answer
- A: The cylinder in question is double acting but can be converted to single acting by installing a breather port.4 years agoHelpful?
Q: Is this 1.25 rod?
5 years ago1 Answer
- A: This cylinder is equipped with a 1.25" rod5 years agoHelpful?
Q: What type of thread fittings does it have? NPT or Outing fittings?
5 years ago1 Answer
- A: P/N 318336 has 1/2 NPT fittings5 years agoHelpful?
Reviews
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
1 to 4 of 52 Reviews .
1 – 4 of 52 Reviews
Most Recent
Grayson Louisiana
Reviews 7
5 out of 5 stars.
Cylinder
2 years ago
Great product !!!
SweepstakesYes
Yes, I recommend this product.
Indiana
Review 1
5 out of 5 stars.
CountyLine Products
2 years ago
Good quality product that replaced factory cylinder for half the cost.
SweepstakesYes
Yes, I recommend this product.
Tomah wi
Reviews 5
5 out of 5 stars.
Good ram
3 years ago
This is as nice as any ram I have had on the farm and we have had many.
Sweepstakes EntryYes
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
Hydraulic cylinder
3 years ago
Great product at a reasonable price
Yes, I recommend this product.
