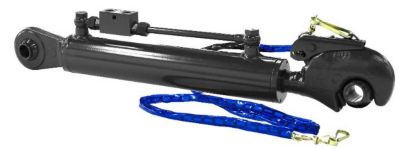

AMA USA Category 3 Hydraulic Top Link, 23-11/16 in. to 33-1/8 in.

Availability

MostViewed

TopSellers

MAPPPrice

Coremetrics ItemSales

Shipping Rates

Is Online or Standard Eligible

Shipping Lead Time

PartNumber

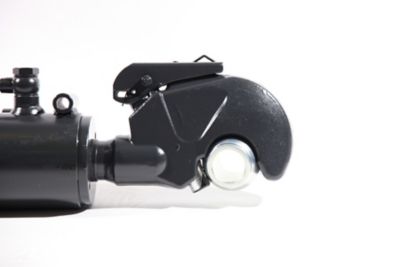

Upgrade from a mechanical top link to the AMA USA Category 3 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.<ul><li>Crafted with honed and finished steel tube, chrome-plated and polished rod and top-quality seals</li><li>1-1/4 in. pin holes on both ends of the hydraulic top link (the piston can be rotated as needed)</li><li>Ball width measures 2 in. (both ends)</li><li>Minimum to maximum length measures 23-11/16 in. to 33-1/8 in.</li><li>Stroke measures 9-7/16 in.; cylinder bore measures 3-1/8 in.; rod diameter measures 1-9/16 in.</li><li>1 year manufacturer's warranty guarantees this AMA USA top link against mechanical defects</li><li>Comes with 3/8 in. BSP to 3/8 in. NPT adapters (if not ordered with the AMA USA hose kit)</li><li>Pushing/lifting capacity of 17,100 lb./12,900 lb. (estimated based on a working pressure of 2,175 PSI)</li><li>Implement end features a quick-attach hook to make connecting and disconnecting from your various implements a cinch</li><li>Comes with a depth decal, depth rod and the hardware necessary to install it</li><li>One end of the depth rod attaches to the piston and the other end attaches to the cylinder</li><li>Once the decal is applied to the cylinder, you can easily tell how far your cylinder is extended based on the location of the rod in relation to the decal</li><li>Double-piloted check valve and double-acting cylinder</li><li>Ports 3/8 in. BSP (includes BSP male to NPT male adapters)</li><li>Hydraulic top link is pressure tested for durability</li></ul><br><br>For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
