Tekonsha Brake Control Wiring Kit with Universal Brake Control Harness
Tekonsha Brake Control Wiring Kit with Universal Brake Control Harness
Item # 1618669
$13.99
Neighbor’s Club Members earn points with purchases.
Tekonsha Brake Control Wiring Kit with Universal Brake Control Harness
Item # 1618669
$13.99
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.

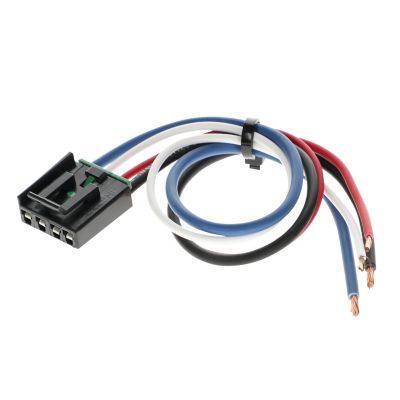

Tekonsha Universal Brake Control Harness Kit, 12 in. Backed by a 1 year limited warranty.1 year limited warranty
Looking for more information on trailers and towing? Check out our guide to trailer prep in the product documents section.
- OEM style wiring harness
- Quick and easy plug in connections
- Allows controller to be unplug and moved to other vehicles
- Color coded wire match brake control standards
- Brake control harness works on 'time proportional' and 'time based' controls
- Positive locking connector stays connected when plugged in tightly
- Simple do it yourself instructions on every package
- Fits REESE Towpower and Tekonsha brake controllers
| Brand | Tekonsha |
|---|---|
| Country of Origin | Imported |
| Amperage | N/A |
| Compatibility | Fits REESE Towpower and Tekonsha brake controllers |
| Package Quantity | 1 |
| Primary Color | Multicolor |
| Primary Material | PVC |
| Product Height | 6.87 in. |
| Product Length | 2.5 in. |
| Product Weight | 0.1 lb. |
| Product Width | 2.9 in. |
| Voltage | N/A |
| Warranty | 1 Year Limited |
| Wire Size | 16 Gauge |
| Manufacturer Part Number | 8506920 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Pt 2 Youtube video says use controller 39510 and harness 75127 . Do I need to get these part numbers instead ? Thanks
5 years ago1 Answer
- A: For additional product support, please contact 1 (800) 632-3290.5 years agoHelpful?
Q: I have an '08 Chevy silverado and bought Voyager brake controller # 9030c and universal harness # 8506920. Silverado has red/gray , orange , white, green / white and blue wires. Only 4 wires on harness. What wires go to which harness wire.
5 years ago1 Answer
- A: Thank you for your question! Here is the response from the manufacture. Speaking with the Electrical engineering manager, this is the best response we can give. Please keep in mind, these products aren’t designed to be installed by a beginner or even novice person. Ultimately we would recommend having them installed by a professional. You will have to test the red/gray, orange, white, green/white and blue wires to know what to hook to our harness. For our harness, the wire colors are as follows: Black = Constant power Red = Power when the brakes are applied Blue = Brake output to the 7-Way White = Ground (most likely) This being said, 3 of the 4 wire colors on our harness match the Silverado harness colors. But we advise you to test all of the wires and match them up accordingly.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Pt 2 Youtube video says use controller 39510 and harness 75127 . Do I need to get these part numbers instead ? Thanks
5 years ago1 Answer
- A: For additional product support, please contact 1 (800) 632-3290.5 years agoHelpful?
Q: I have an '08 Chevy silverado and bought Voyager brake controller # 9030c and universal harness # 8506920. Silverado has red/gray , orange , white, green / white and blue wires. Only 4 wires on harness. What wires go to which harness wire.
5 years ago1 Answer
- A: Thank you for your question! Here is the response from the manufacture. Speaking with the Electrical engineering manager, this is the best response we can give. Please keep in mind, these products aren’t designed to be installed by a beginner or even novice person. Ultimately we would recommend having them installed by a professional. You will have to test the red/gray, orange, white, green/white and blue wires to know what to hook to our harness. For our harness, the wire colors are as follows: Black = Constant power Red = Power when the brakes are applied Blue = Brake output to the 7-Way White = Ground (most likely) This being said, 3 of the 4 wire colors on our harness match the Silverado harness colors. But we advise you to test all of the wires and match them up accordingly.5 years agoHelpful?
